WEG CFW-09 - And DBW-02 Identification Label; DBW-01 and DBW-02 Identification Label; Mechanical Installation

272
CHAPTER 8 - CFW-09 OPTIONS AND ACCESSORIES

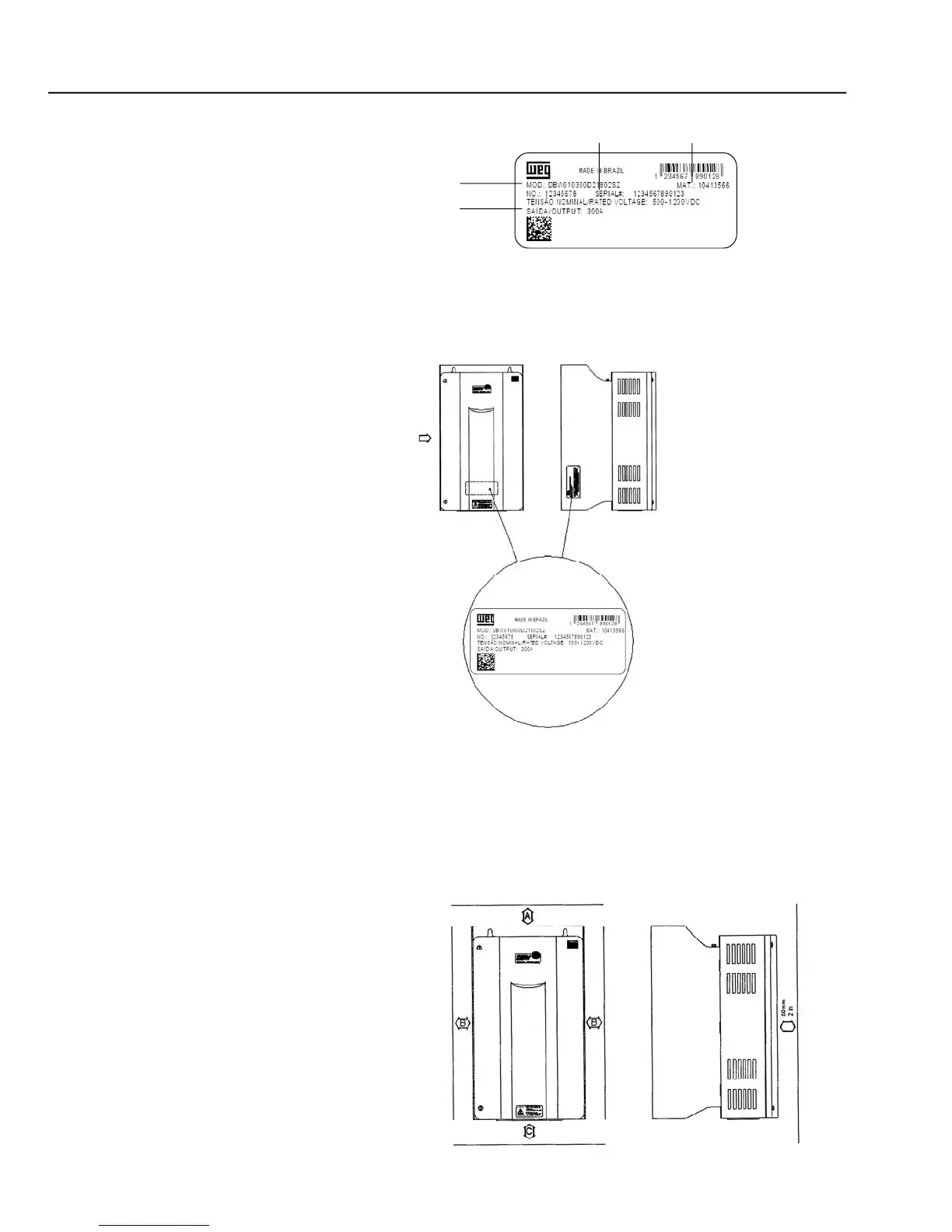

Figure 8.23
- Identification label
8.10.3.2 MechanicalInstallation
The environmental operating conditions of the DBW are the same as of the
CFW-09 inverter (refer to item 3.1.1).
For panel installation, provide an additional airflow of 120 CFM (57 L/s) for
cooling of the braking module.
When installing module, provide free spaces around the module, as shown in
f
igure 8.2
4
,whereA
=
100
mm (4in),B
=
40
mm (1.57in) andC
=
130
mm (5.12
in).
8.10.3.1
DBW-01 and DBW-02
Identification Label
Front View
A - View
A
Figure 8.24
- Free spaces for cooling
RatedOutput
Data
DBWType
Serial Number
WEGItemN
o
