CHAPTER 8 - CFW-09 OPTIONS AND ACCESSORIES
Check the other recommendations for the CFW-09 inverter installation, since
from the mechanical viewpoint, the module is compatible
with
CFW-09 frame
size 3.
External dimensions and mounting holes are according to figure 8.25.

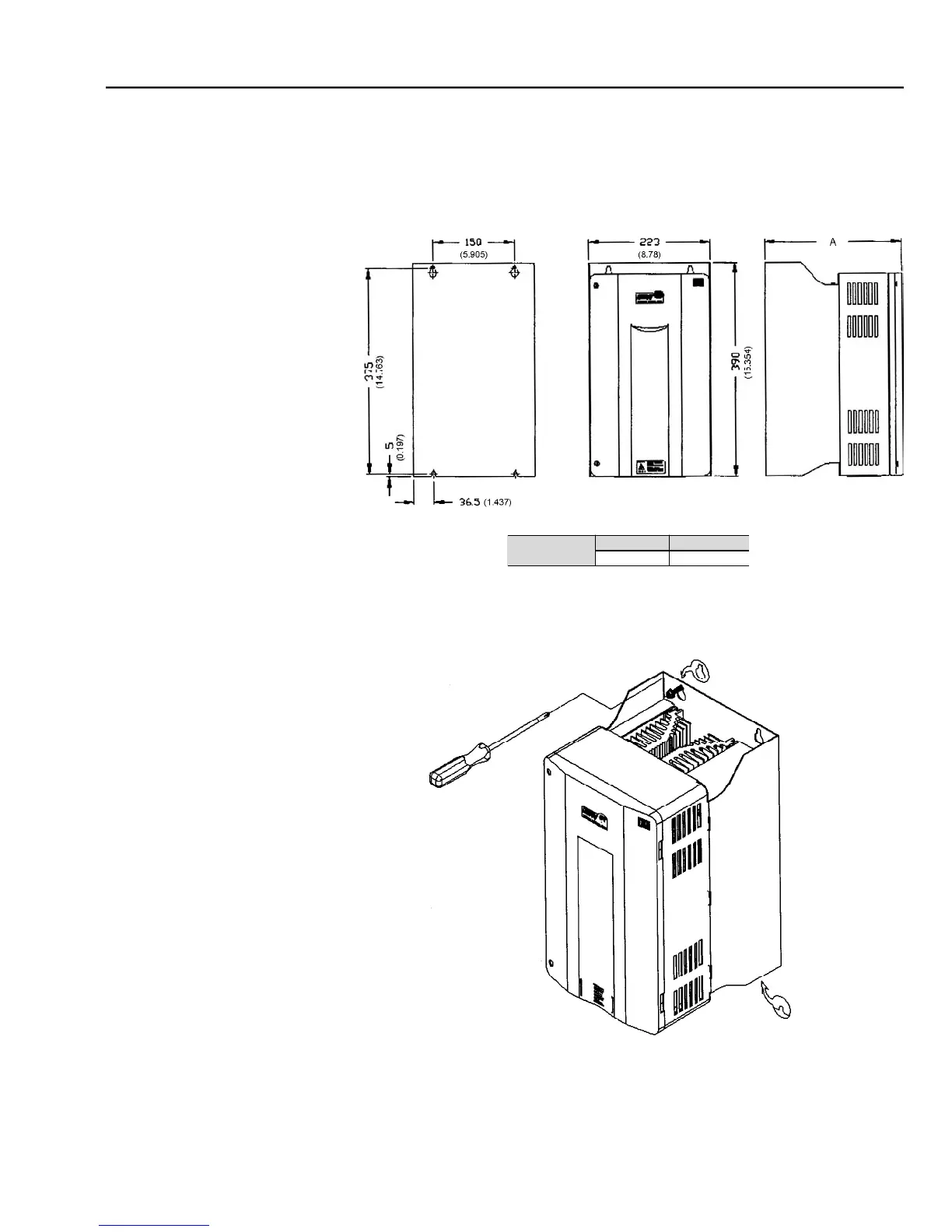

Figure 8.25
- Dimensional drawing of DBW-01 and DBW-02 - mm (inch)
Figure 8.26
- Installation procedures for the DBW-01 and DBW-02 on surface
DBW
-
01
DBW
-
02
Dimension
A
mm (in)
252 (9.92)
277 (10.91)
