CHAPTER 8 - CFW-09 OPTIONS AND ACCESSORIES
TheDBW-01andDBW-02 canalsobeinstalledwithathroughsurfacemounting
kit as described in item 8.11. In this case, use the available installation kit,
which contains the respective installation supports. Figure 8.28 shows the
mounting cutouts.

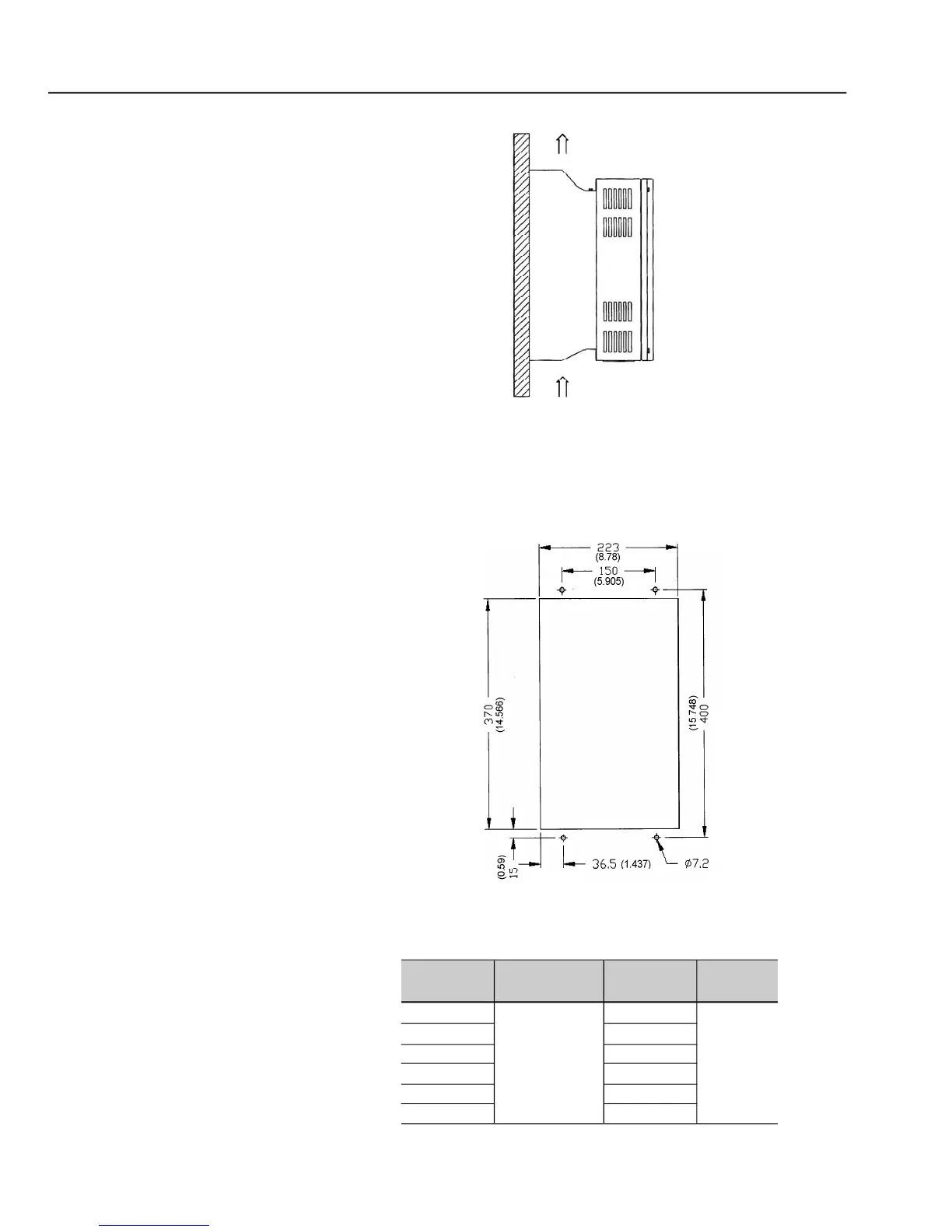

Figure 8.27
- DBW-01 and DBW-02 positioning
Figure 8.28
- Cutout dimensions in air duct - Dimensions mm (inch)
Air Flow
Type
DBW-01 165
DBW-01 240
DBW-01 300
DBW-02 210
DBW-02 300
DBW-02 380
Fastening Screw
M6
Weight (Kg)
14.2
13.8
13.4
14.2
13.8
13.4
Degree of
Protection
IP20
Table 8.14 shows the weights of the different DBW-01 types.
Table 8.14
- Mechanical data of the DBW-01 and DBW-02
