CHAPTER 6 - DETAILED PARAMETER DESCRIPTION
a) Activation of the load detection parameters during the stabilization time and with P361 = On
Speed
N* x P368
N*
P362
P367
P366
P365
P364
Show Slack
Cable
t
t
Output
Current
P363
CalculateIm
Show Overweight

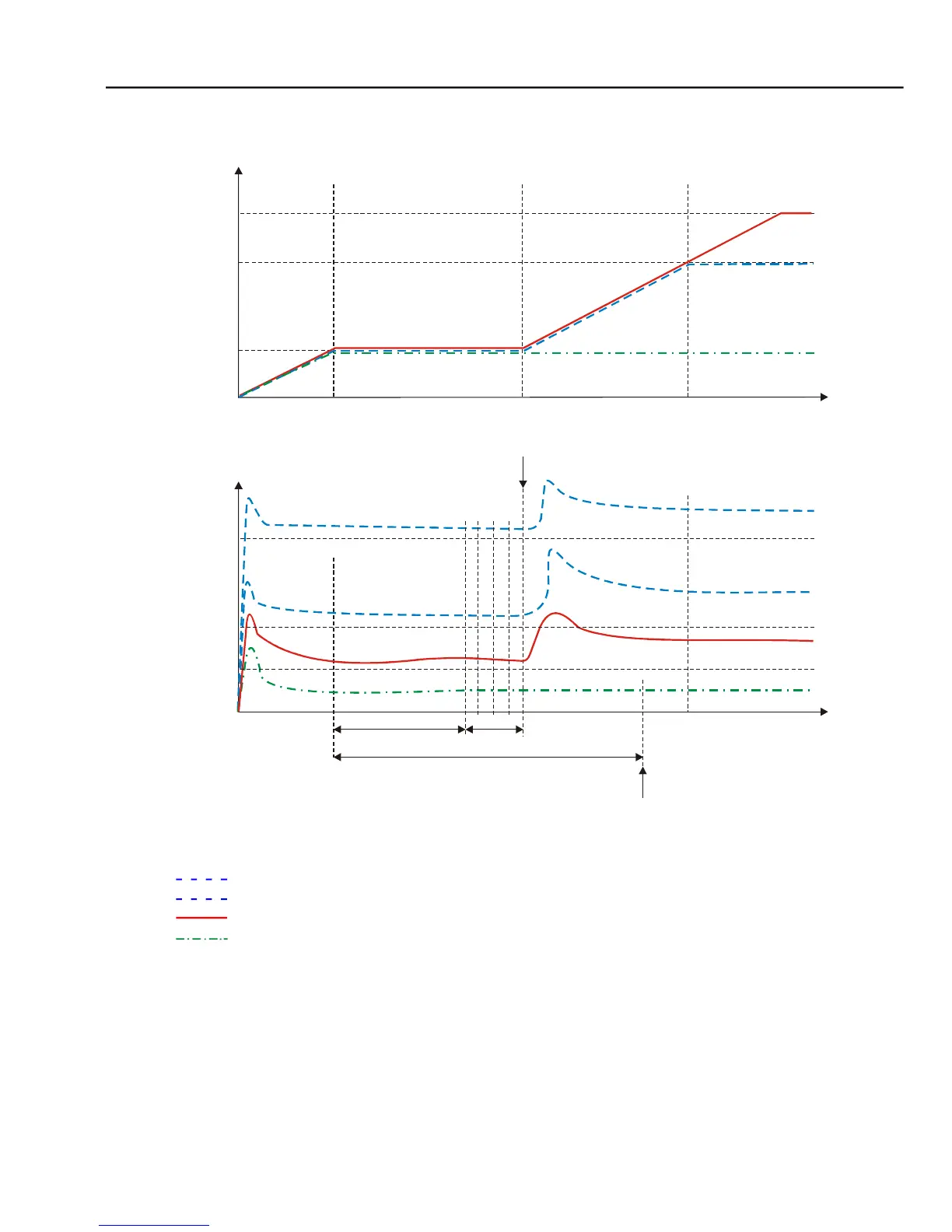

Figure 6.46 a)
- Details of the operation of digital functions
(1)
Overweight Condition
(2)
Normal Condition
Light load condition
Slack cable condition
Im - Average Current
(1)
(2)
