WEG CFW-09 - Electrical Installation; Power;Grounding Terminals

50
CHAPTER 3 - INSTALLATIONANDCONNECTION
a) Size 1 models
b) Size 2 models
c) Size 3, 4 and 5 models
d) Size 6 and 7 (220-230 V and 380-480 V models)
g) Size 9 and 10 (380-480 V models)
f) Size 8 (380-480 V models)
e) Size 7 (500-600 V models)
h) Size 8E (500-690 V and 660-690 V models)

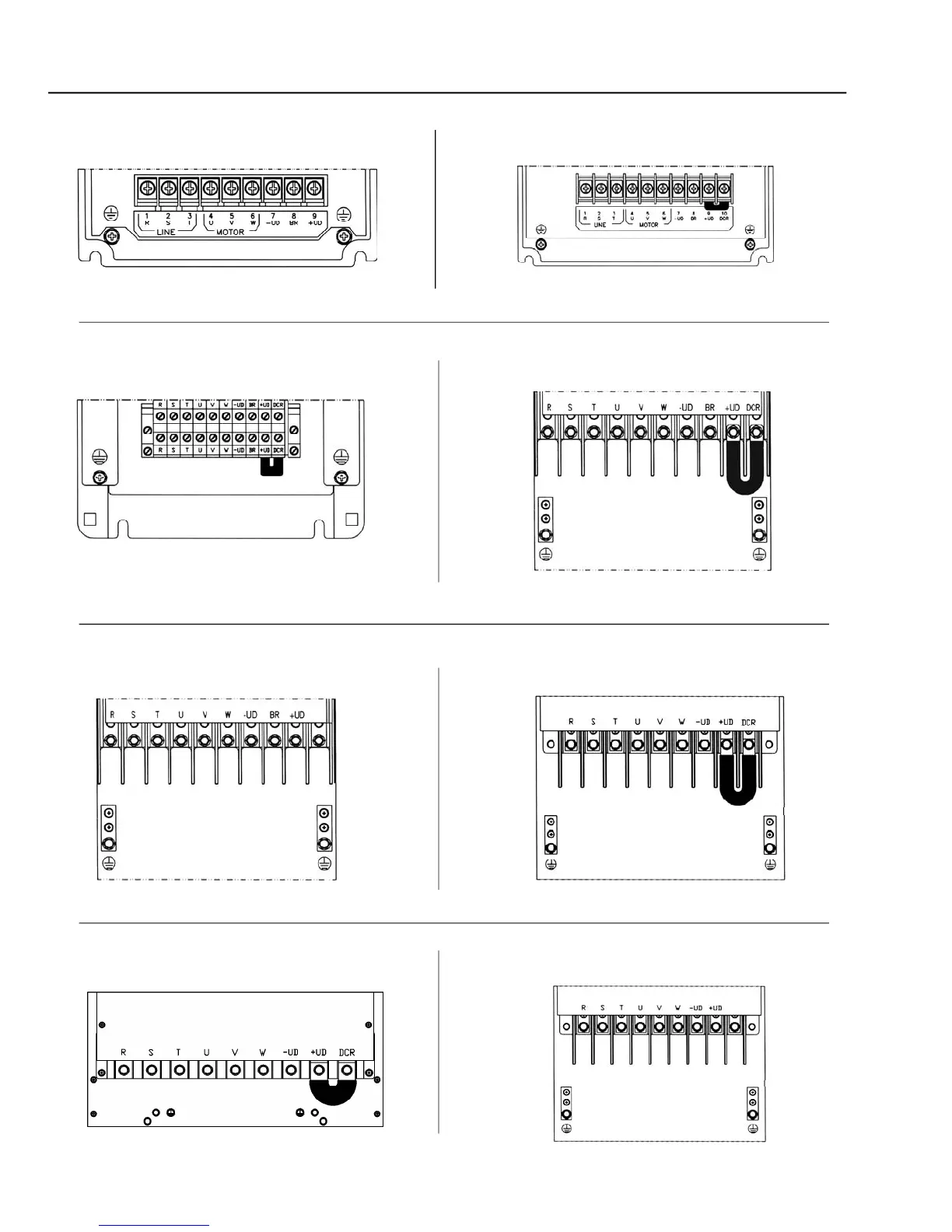

Figure 3.6 a) to h)
- Power terminals
