WinGD RT-flex50DF - Page 130

Maintenance2124−2/A1
Winterthur Gas & Diesel Ltd.
2/ 8
2. Cylinder Liner −
Removal

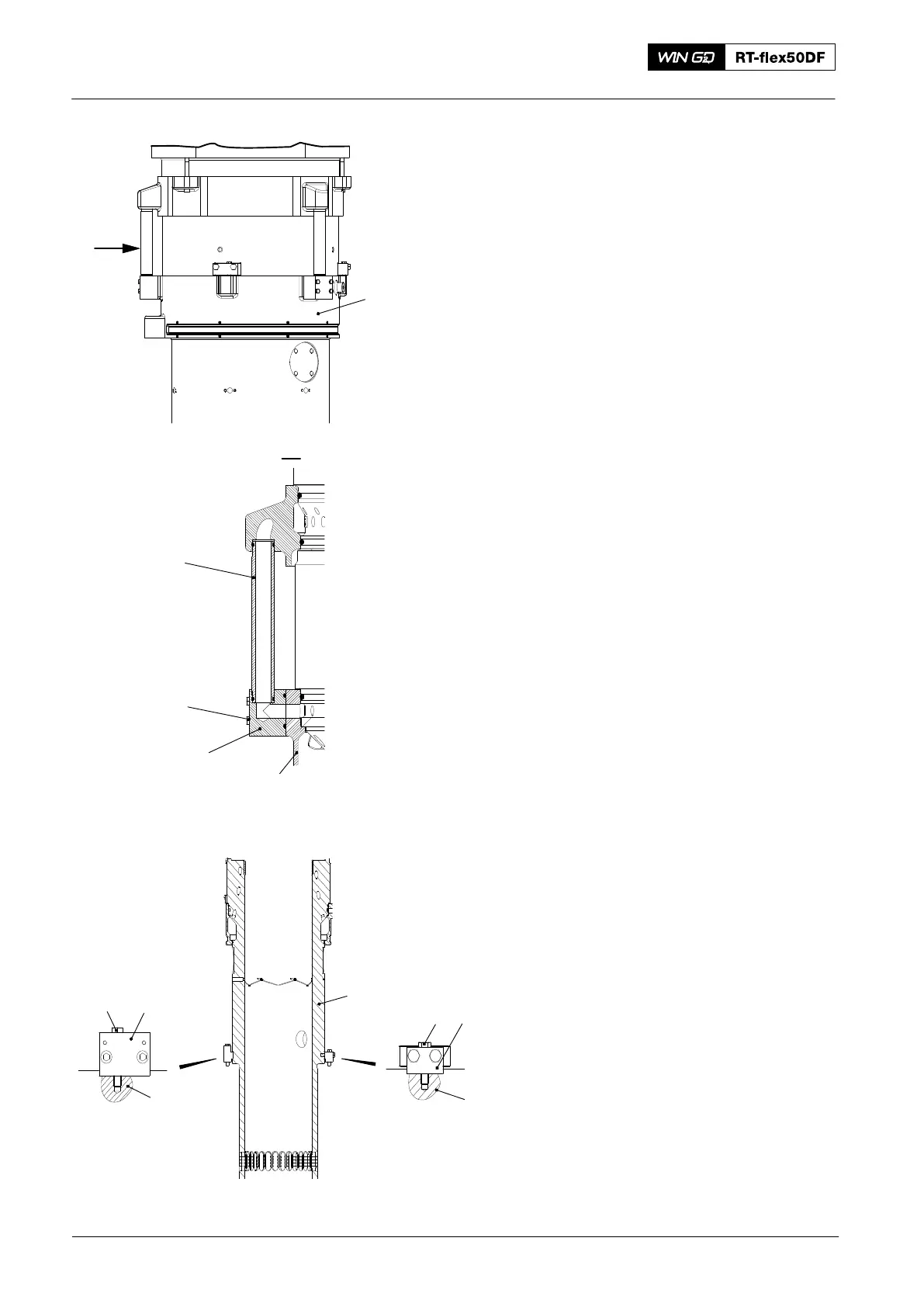

1) Remove the screws (4, Fig. 1).
2) Remove the pipe connection (3) and
the transition tubes (5) from the water
guide jacket (2).
Note: The transition tubes (5) are a
push-fit into the pipe
connections (3).
3) Loosen the screws (2 and 5, Fig. 2).
4) Remove the cylinder holders (3, 6).
Note: The cylinder holders (3, 6) keep
the the cylinder liner (1) in
position.
2016
Cylinder Liner: Removal and Fitting
I
I
WCH03059
Fig. 1
1
2
4
3
5
WCH030059
WCH03086
Fig. 2
1
2
3
4
4
6
5
