Maintenance2124−2/A1
Winterthur Gas & Diesel Ltd.
8/ 8
7. Cylinder Liner −
Installation
1) Install the lifting tool (94201, Fig .10)
and the chain (94202) to the cylinder
liner, refer to paragraph 2.1.
2) Clean the seating surfaces of the
cylinder liner (1) and the cylinder
jacket.
3) Install the cylinder holders (3, 6) with
the screws (5) to the cylinder liner (1).
4) Lift, move and lower the cylinder liner
(1) above the cylinder jacket.
5) Carefully lower the cylinder liner (1)
almost on to the cylinder jacket.
6) Align the pins (4) with the holes in the
cylinder jacket.
7) Fully lower the cylinder liner (1).
8) Replace the O-rings (2 and 6, Fig. 11).
9) Attach the pipe connections (8) and the
transition tube (3) to the water guide (7)
with the screws (4).
10) Remove the lifting tool (94201).
8. Completion
1) Install all lubricating quills, refer to
2138−1.
2) Operate the flex lube pump on the
related cylinder liner until oil flows from
all the lubricating grooves.
3) Install the piston piston rod gland, see
3403−1 and 2303−1.
4) Install the piston rod gland, refer to
2303−1.
5) Install the cylinder cover together with
the upper water guide jacket, see
2708−1.
2016
Cylinder Liner: Removal and Fitting
WCH03086

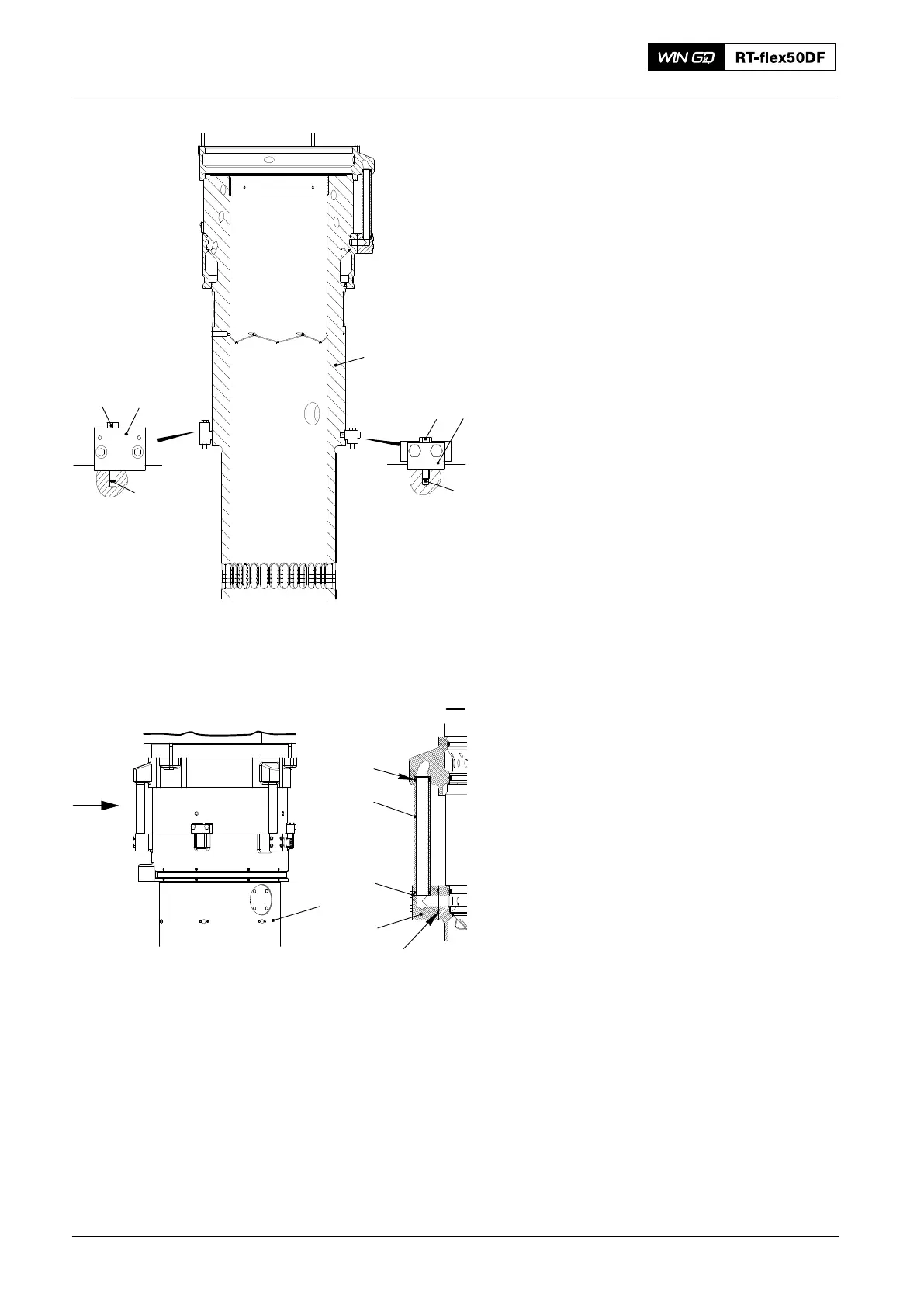

Fig. 10
Fig. 11
WCH030059
1
2
3
4
4
6
5
4
5
3
I
I
WCH03059
1
2
6
