Maintenance
2124−2/A1
Winterthur Gas & Diesel Ltd.
7/ 8
5. Insulation Bandage −
Removal
1) Remove the cylinder liner, refer to the
procedures in paragraph 1 to
paragraph 2.2.
2) Remove the water guide jacket, refer to
paragraph 3.
3) Use the assembly tool (94345E, Fig. 9)
to remove all the tension springs (2).
4) Remove the plate (3).
5) Remove insulation bandage (1).
6. Insulation Bandage −
Installation
6) Put the insulation bandage (1) around
the water channel on the cylinder liner.
Note: Make sure that the insulation
bandage (1) has an overlap of
approximately 30 mm.
7) Put the plate (3) in position over the
insulation bandage (1).
8) Use the assembly tool (94345E) to
attach all the tension springs (2).
9) Make sure that there is a clearance of
10 mm between the ends of the
plates (3).
2016
Cylinder Liner: Removal and Fitting
10 mm
I
WCH03065
I
Approx. 30 mm
II

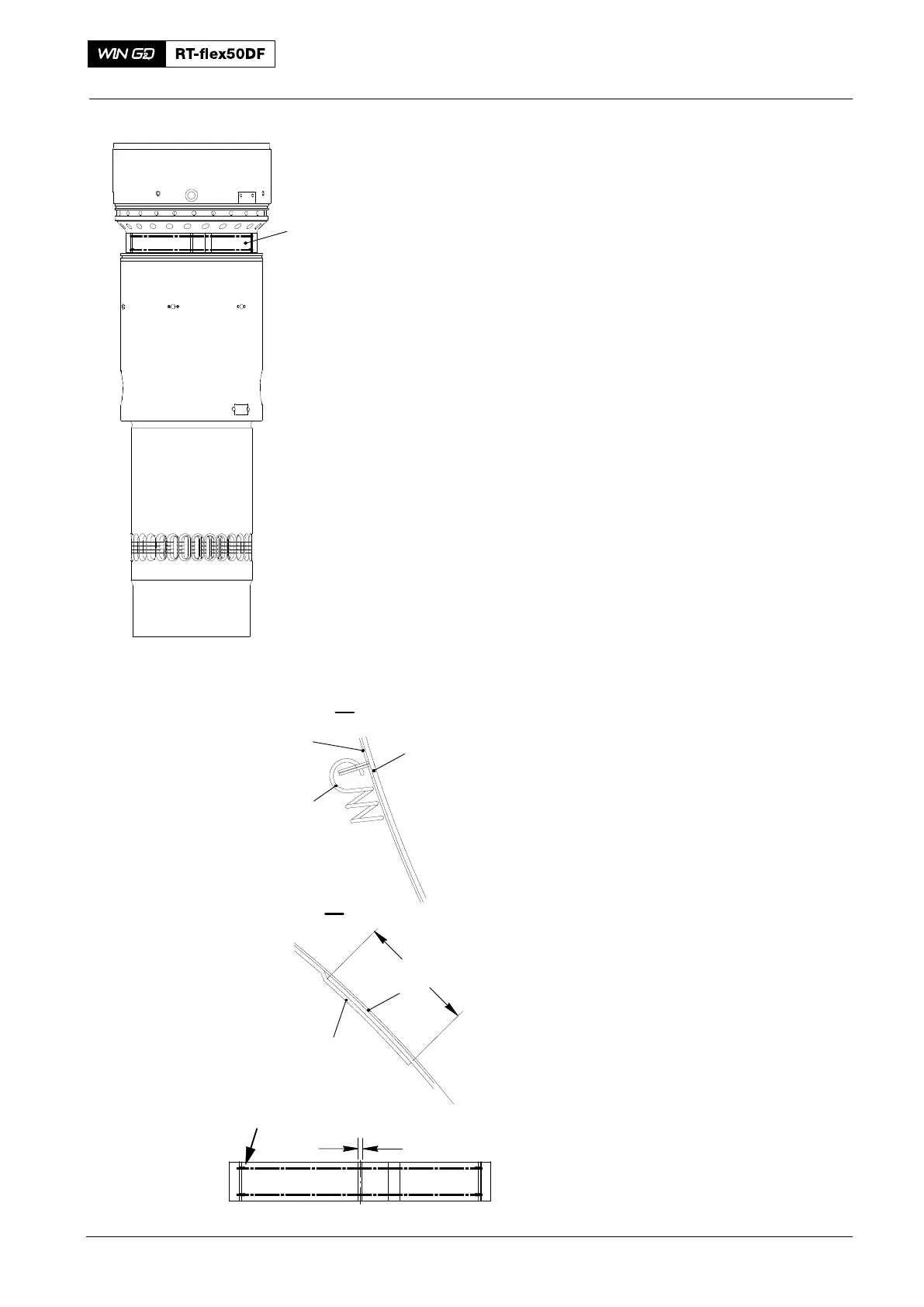

Fig. 9
1
3
2
1
3
1
