Maintenance2124−2/A1
Winterthur Gas & Diesel Ltd.
4/ 8

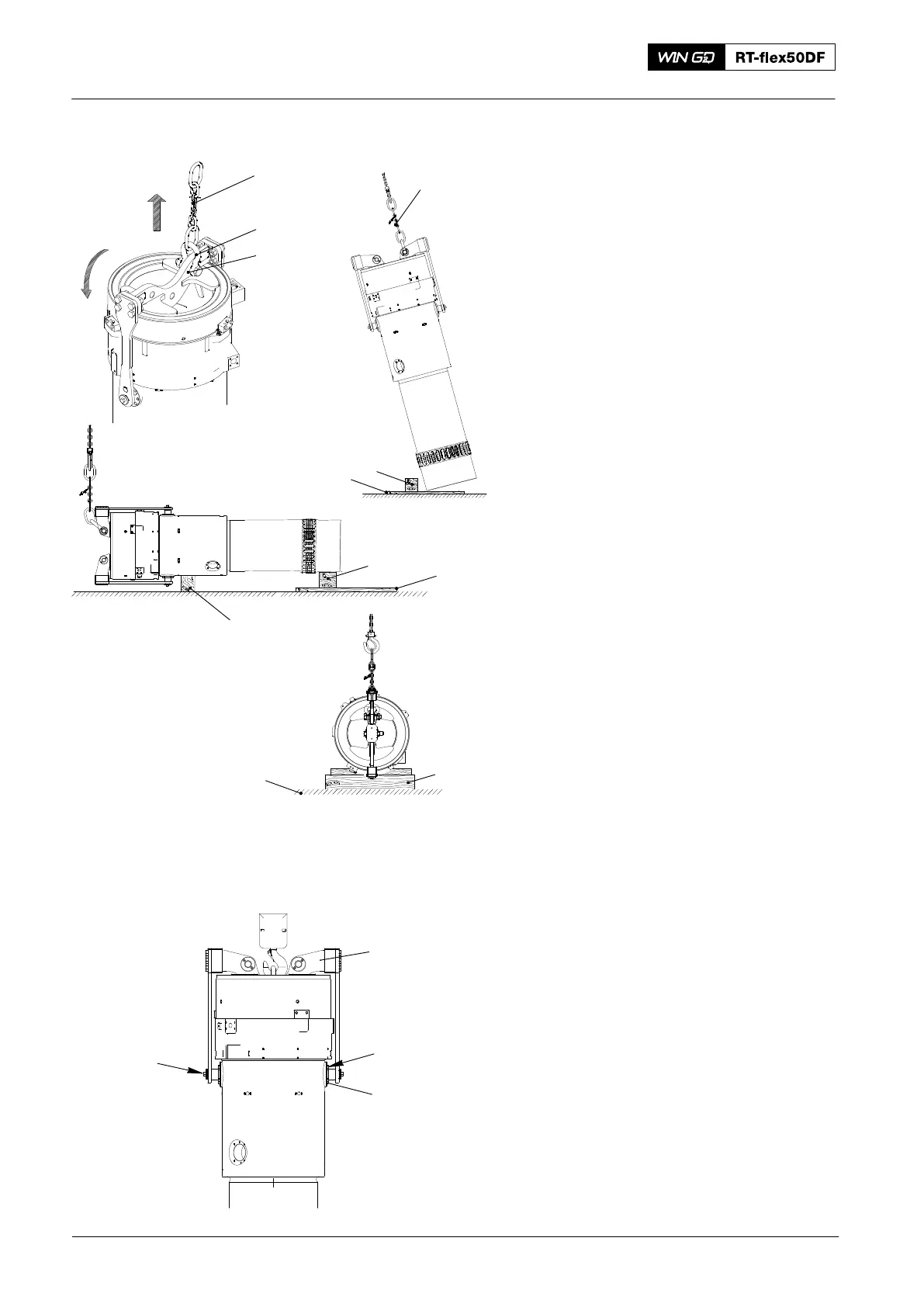

2.2 Cylinder Liner − Safe
Storage
1) Attach the shackle (94201D, Fig. 5) of
the lifting tool (94201) as shown.
2) Attach the chain (94202L) to the
shackle (94201D) and the crane hook.
3) Put the wooden underlay (2) in position
as shown.
4) Carefully push the cylinder liner in the
direction shown and at the same time
lower the cylinder liner.
5) Put the wooden chocks (1) in position
to prevent movement of the cylinder
liner.
6) Fully lower the cylinder liner.
7) Remove the chain (94202L) from the
lifting tool (94201).
8) Carefully turn the cylinder liner 90_ and
put more wooden underlays (2) in
position.
9) Put the two wooden chocks (1) in
position to prevent movement.
10) Remove the lifting tool (94201) from the
cylinder liner.
11) Remove the insulation bandage, refer
to paragraph 4.
12) To remove the cylinder liner from water
guide jacket, refer to paragraph 3.
2.3 Lifting Tool − Removal
1) Remove the two special screws (2,
Fig. 6).
2) Remove the screws (1), then remove
the two flanges (94201C).
3) Use the engine room crane to remove
the lifting device (94201) from the
cylinder liner.
4) Lower the lifting device (94201) to an
applicable surface.
5) Remove the crane hook from the
shackle of the lifting tool (94201).
2016
Cylinder Liner: Removal and Fitting
94201
94202L
94201D
94202L
1
1
1
Fig. 5
1
2
2
2
2
1
94201C
94201
WCH03060
Fig. 6
