Maintenance2124−2/A1
Winterthur Gas & Diesel Ltd.
6/ 8
4. Water Guide Jacket −
Installation
1) Install the insulation bandage, refer to
paragraph 6.
2) Attach the lifting tool (94201) to the
cylinder liner, refer to paragraph 2.1.
3) Lift, move and lower the cylinder liner
into the water guide jacket (1, Fig. 7).
4) Attach the three shackles (94018D) to
the lifting tool (94201).
5) Attach the eye bolts (8) to the water
guide jacket (1).
6) Attach the three manual ratchets
(94016−004) to the three eye bolts (8)
and the shackles (94018A) on the lifting
tool (94201).
Note: Make sure that you do not cause
damage the top of the cylinder
liner.
7) Operate the manual ratchets
(94016−004) to lift the water guide
jacket (1) to the applicable position on
the cylinder liner. Make sure that you
keep the water guide jacket level.

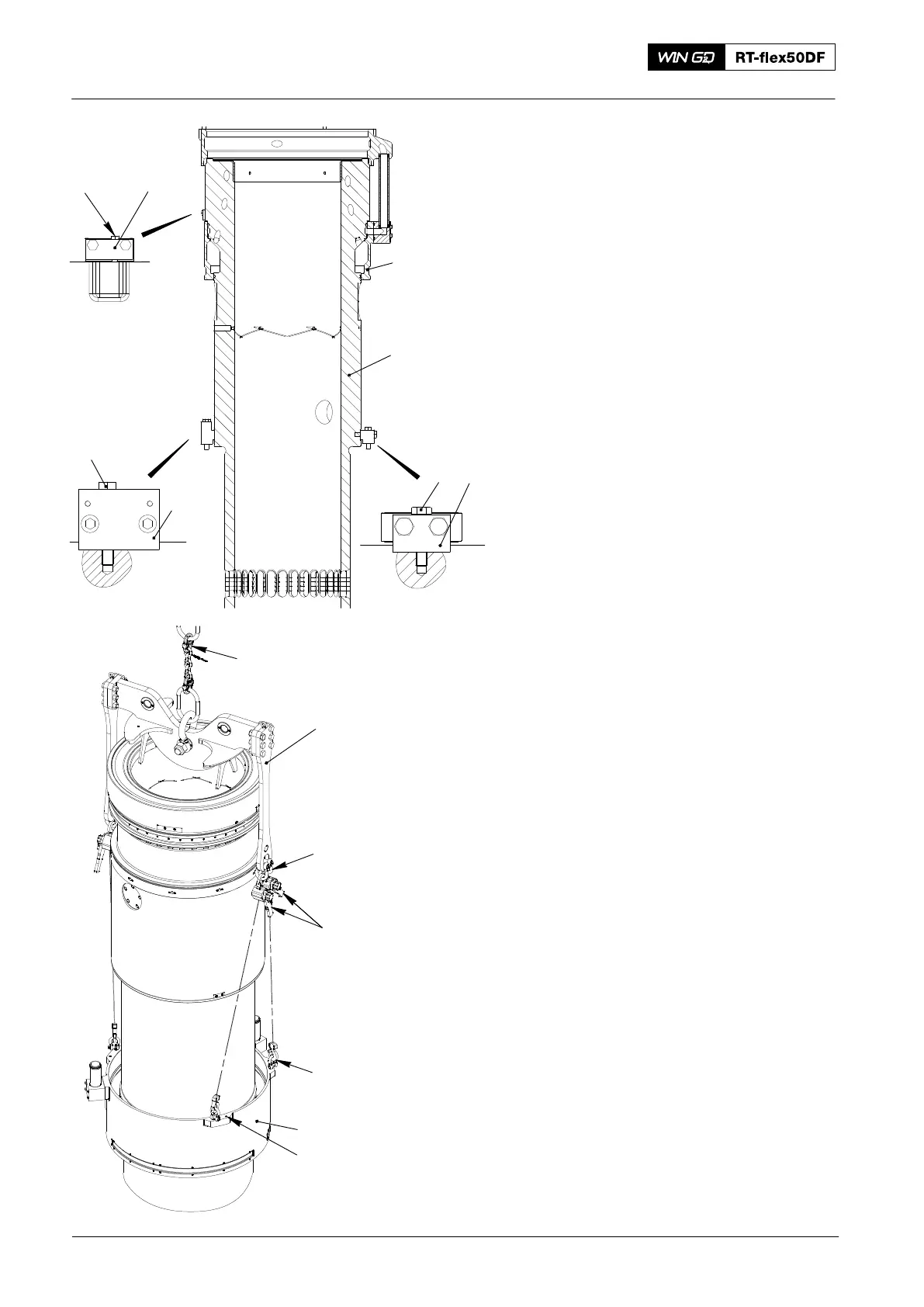

8) Attach the water guide jacket (1, Fig. 8)
to the cylinder liner with the three
screws (9).
9) Attach the cylinder holders (4, 5) with
the screws (3).
10) Remove the manual ratchets
(94016−004), the shackles (94018D)
and the lifting tool (94201).
11) Remove the eye bolts (8).
2016
Cylinder Liner: Removal and Fitting
1
94016−004
WCH02913
94202L
94201
94018D
8
WCH030059
WCH03086
9
Fig. 8
2
1
3
4
5
3
6
7
Note: Some parts
can look different
