Maintenance
2138−1/A1
Winterthur Gas & Diesel Ltd.
5/ 5
6) Remove the plugs from the oil pipe (5, Fig. 5).
7) Connect the pipe (5) to the lubricating quill (7) and the applicable pipe (8).
8) Tighten the nuts (4, 6) of the screw-in union and angle union.
9) Step a) to step c) is only necessary if the cylinder liner was installed.
a) Remove the plugs from the six pipes (1).
b) Connect the six pipes (1).
c) If necessary, attach the holders (3) to the six pipes (1).
10) Bleed the oil pipes 8, refer to 7218−1, paragraph 3.2.
11) If necessary, bleed the cylinder lubricating oil pump, refer to 7218−1, paragraph
3.1.
12) Do a function check of the cylinder lubricating system, see 7218−1,
paragraph 1.2.

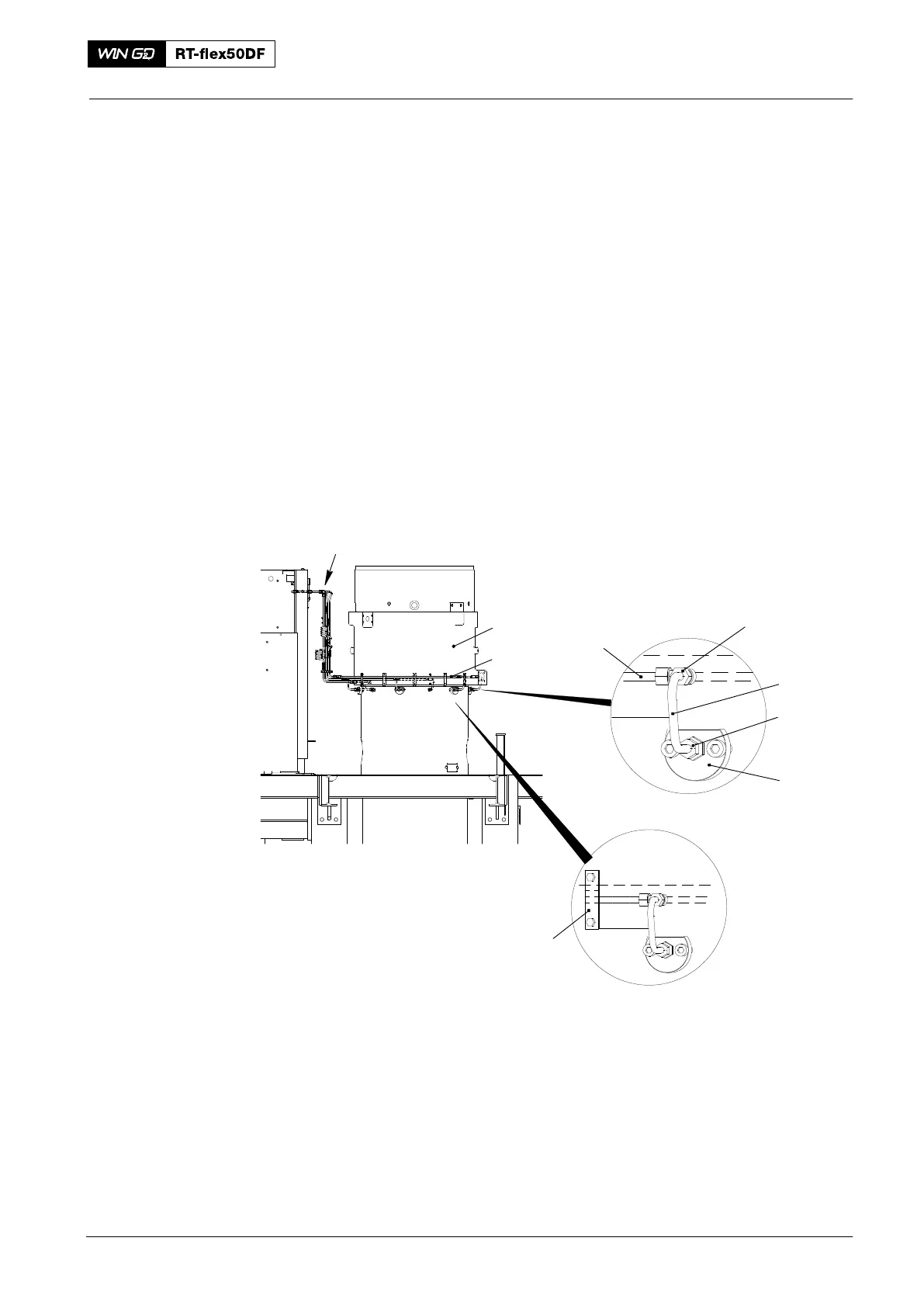

Fig. 5
WCH02869
DRIVING END
4
5
7
6
1
2
3
1
3
2016
Lubricating Quill
To Next Page
