3. Removal
1) Operate the turning gear to move the
piston to BDC.
2) Lock the turning gear.

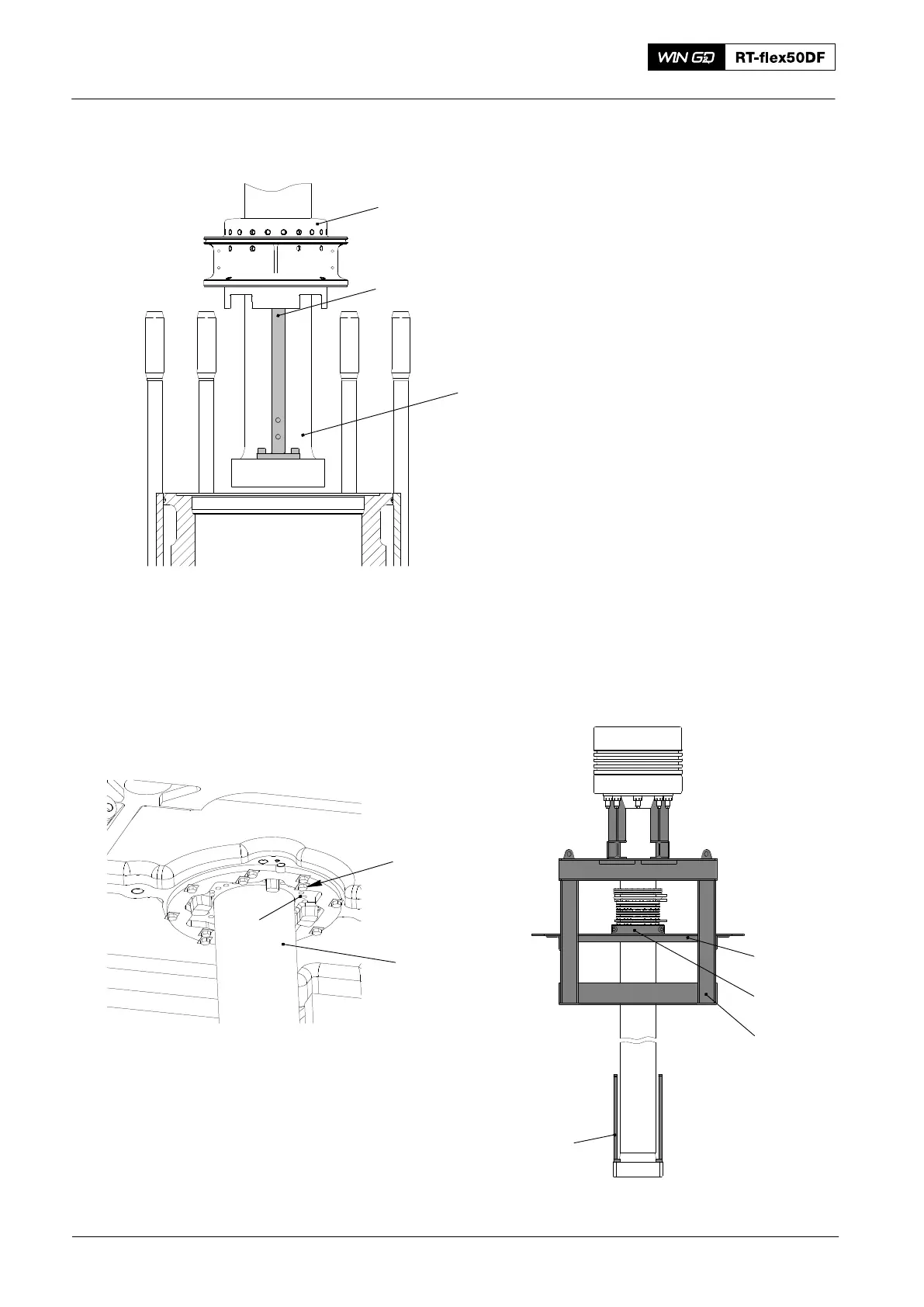

3) Make sure that the two distance
holders (94345, Fig. 1) are installed on
to the piston rod foot (2).
4) Remove the four inner bolts (3, Fig. 2)
from the support (4).
5) Make sure that the piston rod gland is
in the correct position on the two
hinged covers (3) of the tool (94350).
