Maintenance0012−1/A1
Winterthur Gas & Diesel Ltd.
2/ 5

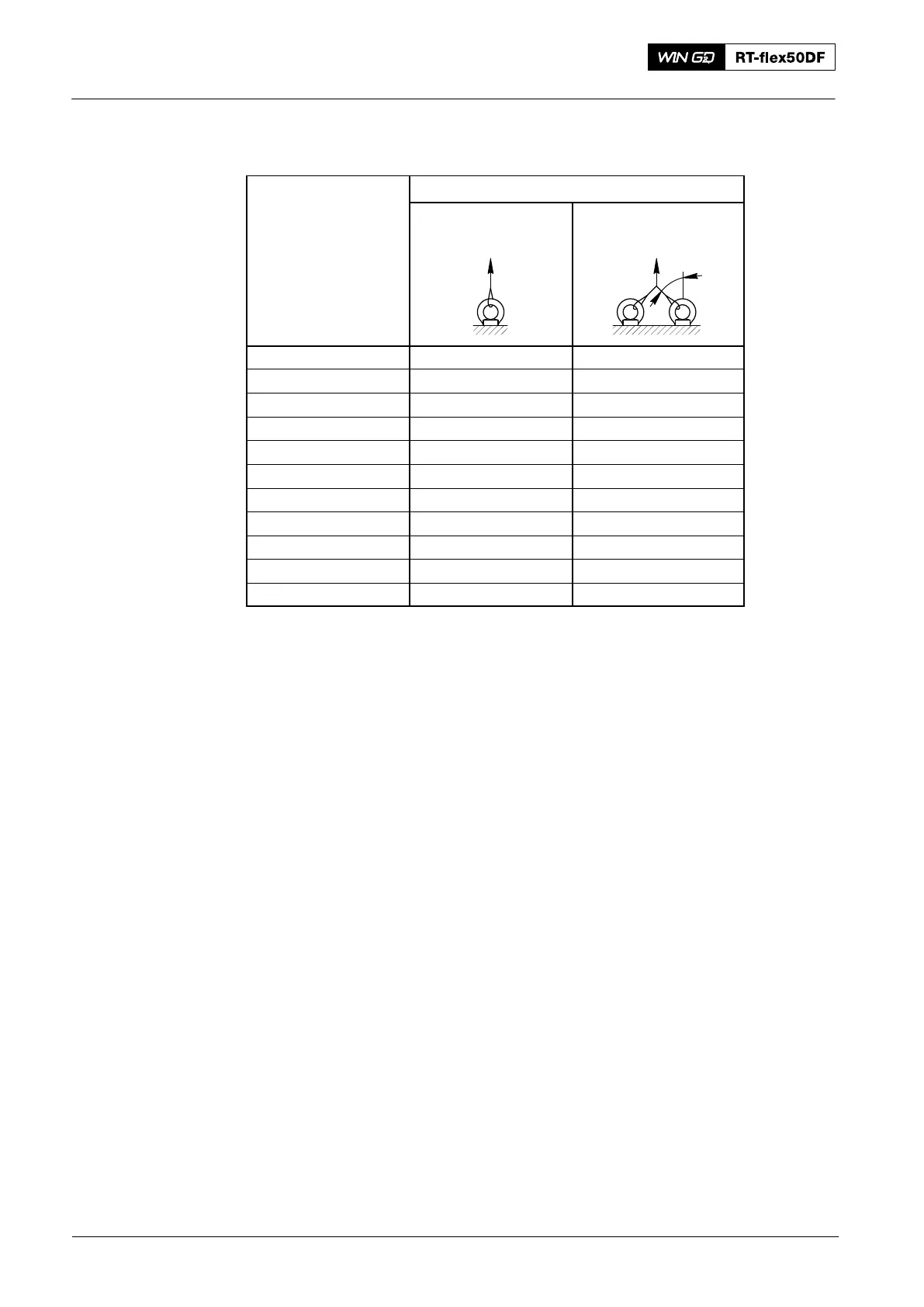

Lifting values (for data only):
Table 1: Values
Eye bolts and
eye nuts,
thread size
Lifting capacity [kg]
single-strand double-strand (45°)
1)
45
_
M8 140 100
M10 230 170
M12 340 240
M16 700 500
M20 1200 860
M24 1800 1290
M30 3200 2300
M36 4600 3300
M42 6300 4500
M48 8600 6100
M56 11 500 8300
Note: The data given in Table 1 above are related to DIN 580 and 582:2003−08.
The eye bolt or the eye nut:
D Is fully turned in or screwed down
D Is fully on the seating surface
D Had a check for damage (
e.g. corrosion, deformation) before use
D Note
1)
Full load is only permitted in the direction of the ring, therefore the eye
bolts or eye nuts must be moved to the correct position. If necessary, use the
distance rings.
If there are through-holes, you must put a washer on the opposite side under the nut
or screw head.
When possible, do not apply an angle of inclination of more than 45° (in all directions
in relation to the ring).
Do not apply lateral loads.
For different use on different objects to be lifted, eye nuts or eye bolts with thread
diameters one size higher should be used.
2.4 RUD Eye bolts and RUD Swivel Lugs
Only those RUD eye bolts and RUD swivel lugs that have a safety factor of 4 can be
used.
Manufacturer:
RUD Ketten
Rieger & Dietz GmbH u. Co
Friedensinsel
D−73432 Aalen
Germany
http://www.rud.com
