2.4.1 RUD Eye Bolts
RUD eye bolts must be fully attached to the seating surfaces.
Use the applicable star-profile wrenches to tighten RUD eye bolts with your hand (do
not use an extension).

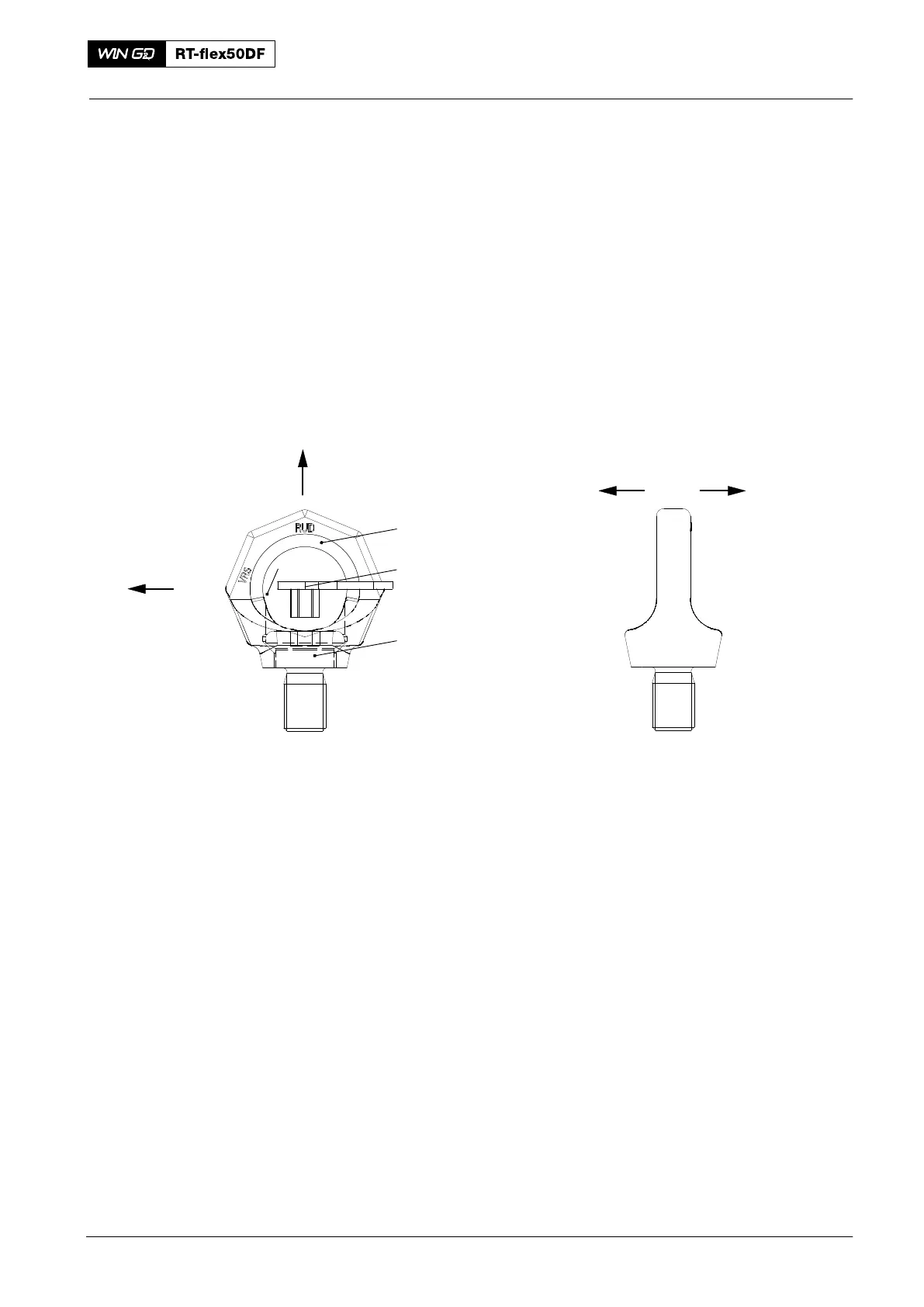

After the RUD eye bolt is tightened, remove the star-profile wrench (Fig. 1). This will
make sure that the RUD eye bolt can turn freely.
Align the RUD eye bolt with the direction of force before a load is applied.
Note: Do not apply loads in the directions shown in Fig. 2.
DIRECTION
OF FORCE
Ring
Star-profile
wrench
Screw
Fig. 1
Fig. 2
013.444/05
DO NOT
APPLY FORCE
IN THESE
DIRECTIONS
DIRECTION
OF FORCE
General Guidelines: Wire Rope Slings, Span-sets, Eye Bolts, etc.
