Maintenance3303−3/A2
Winterthur Gas & Diesel Ltd.
2/ 10
2.1 Crosshead − Lift (Installed
Piston)
Note: During this procedure, the piston
(3, Fig. 2) is installed.
1) Remove the four round nuts (5) of the
connecting rod (7), refer to 9403−4.
2) Attach the stop plate (94370H) to the
bearing cover (4) and guide shoe (6).
3) Attach the two eye bolts (94040−M8) to
the guide shoe (6).
4) Attach the two lifting rings (94332) to
the cylinder block (1) with the four
screws (2).
5) Torque the four screws (2) to 200 Nm.
6) Attach the manual ratchets (H3, H4) to
the lifting rings (94332) and the eye
bolts (94040−M8).
2016
Top End Bearing − Removal, Inspection and Installation
013.021/05
H4
94332
H3
FREE END
I
94370H
94040−M8
I

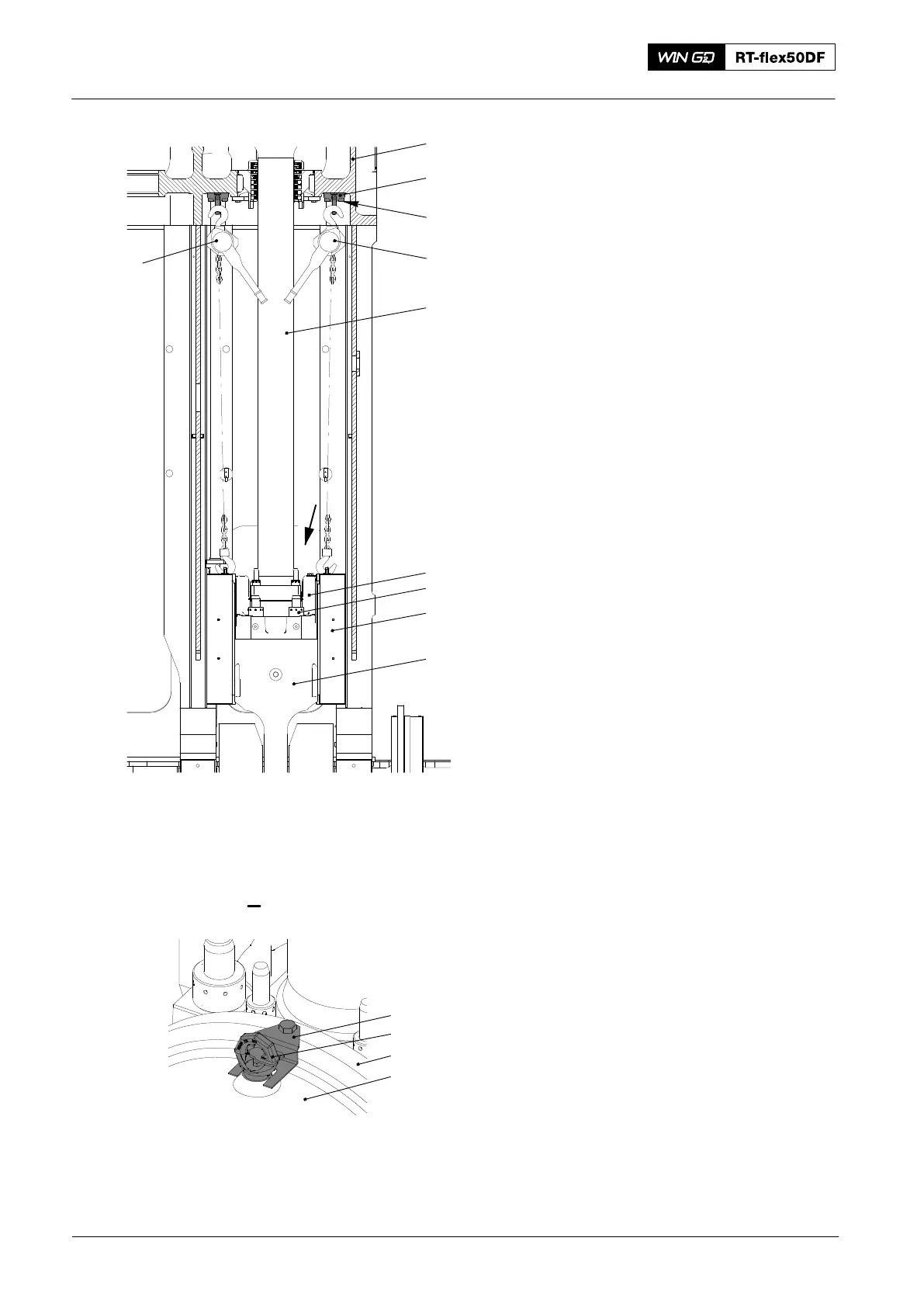

Fig. 2
3
1
2
4
6
7
5
4
6
