Maintenance3326−2/A2
Winterthur Gas & Diesel Ltd.
2/ 10
2. Crosshead Pin −
Removal

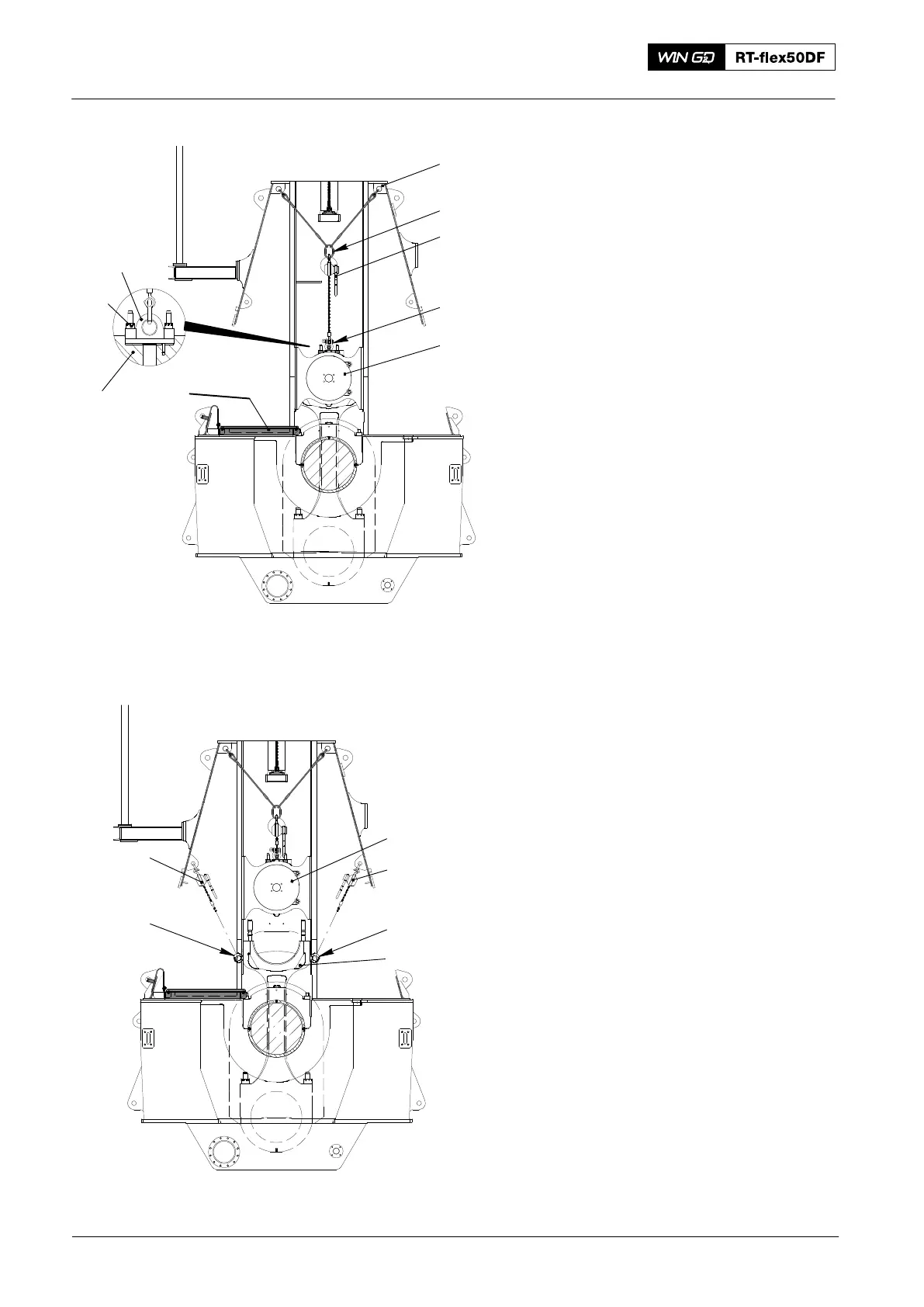

1) Attach the sling (94666, Fig. 1) to the
attachment points (1) in the column.
2) Attach the lifting plate (94324) and
shackles to the crosshead pin (2) with
the round nuts (3) removed from the
piston rod foot.
3) Attach the sling (94666) to the manual
ratchet (H1) and to one of the shackles
on the lifting plate (94324).
4) Attach the eye bolts (EB, Fig. 2) to the
connecting rod (2) as shown.
5) Attach the manual ratchets (H2, H3) to
the attachment points in the column
and the eye bolts (EB). Apply a light
tension to the manual ratchets.
6) Operate the manual ratchets (H2, H3)
to lift the crosshead pin (1) as far as
possible.
2016
Crosshead Pin − Removal and Installation
9466
9432
94142
013.237/05
H1
Fig. 1
1
2
3
94324
3
1
H3
EB
2
EB
H2
013.238/05
Fig. 2
