Maintenance
3326−2/A2
Winterthur Gas & Diesel Ltd.
3/ 10

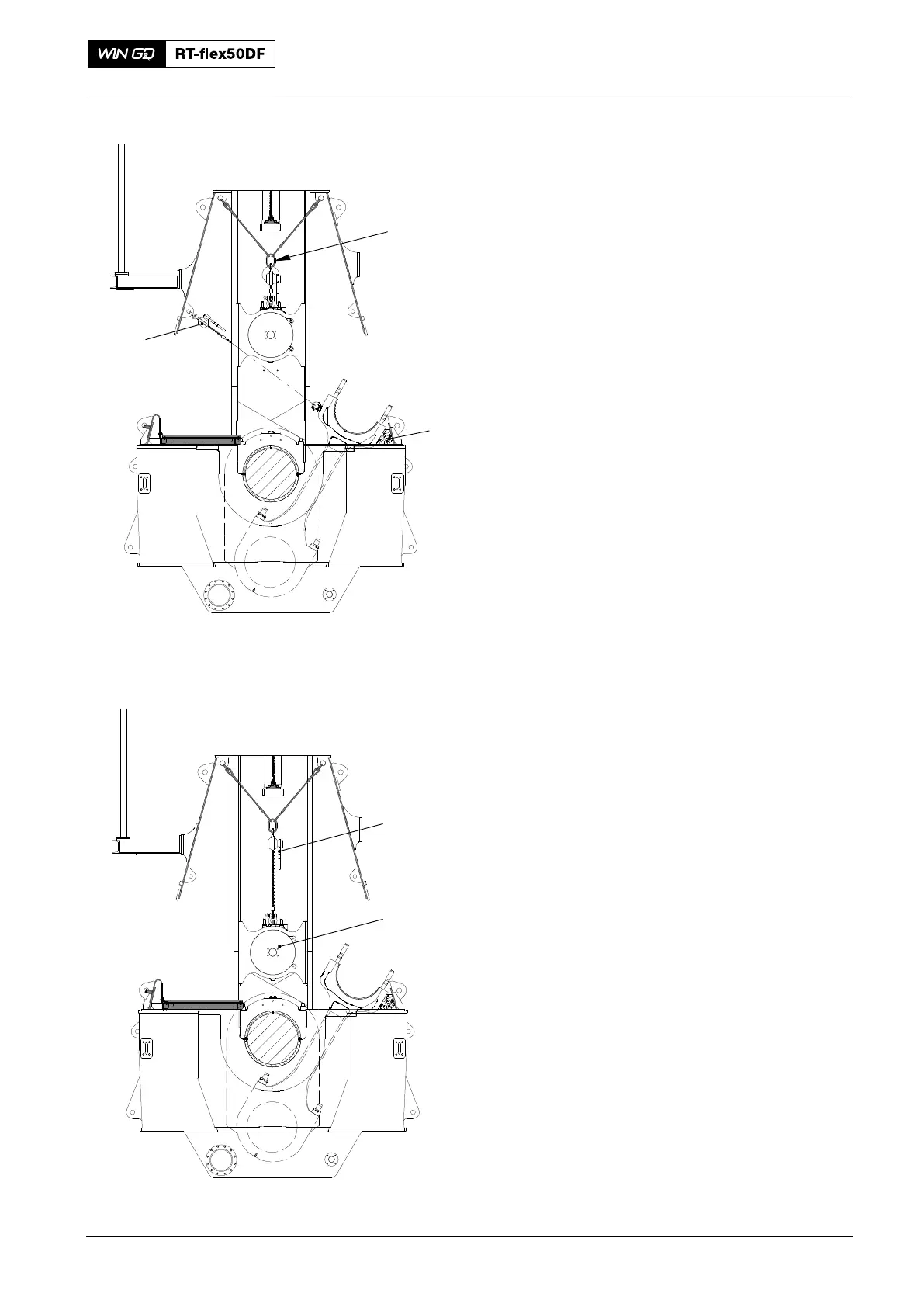

7) Put the wooden chock (1, Fig. 3) in the
bottom corner of the column as shown.
8) Operate the manual ratchets (H2, H3)
to move the crosshead to the exhaust
side a small distance. Make sure that
the connecting rod cannot move back
to the fuel side.
9) Remove the manual ratchet (H3) and
the related eye bolt (EB).
10) Operate the manual ratchet to move
the connecting rod until on to the
wooden chock (1).
11) Remove the manual ratchet (H2).
12) Operate the manual ratchet (H1, Fig. 4)
to lower the crosshead pin (1) to the
same height as the column door frame.
2016
Crosshead Pin − Removal and Installation
013.239/05
94666
H2
1
H1
013.240/05
Fig. 3
Fig. 4
EXHAUST SIDE
1
To Next Page
