Maintenance
3303−3/A2
Winterthur Gas & Diesel Ltd.
3/ 10

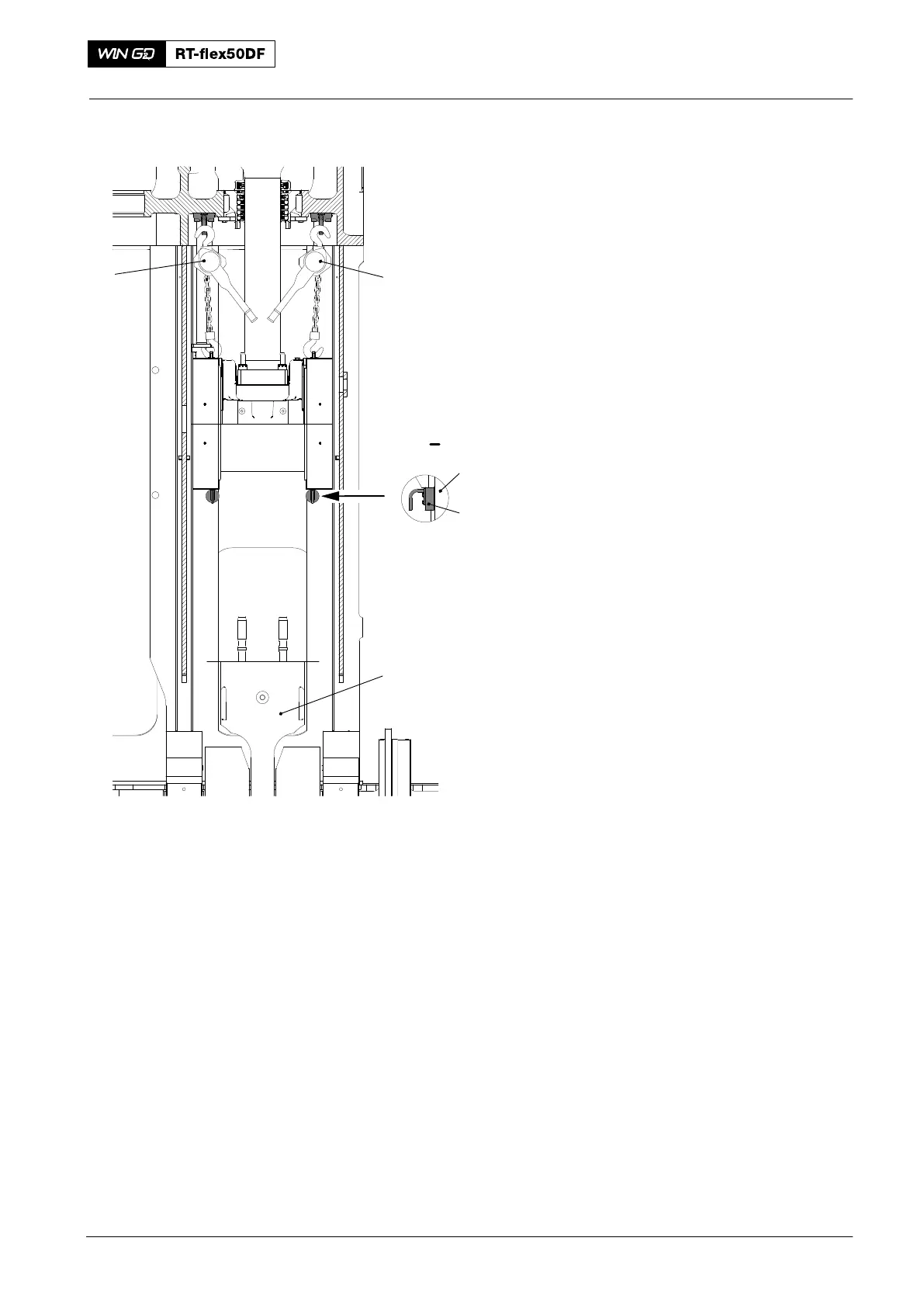

7) Operate the manual ratchets (H3 and
H4, Fig. 3) to lift the crosshead above
the bottom holes in the guideways (1).
8) Put the four retaining pins (94323) in
the holes in the guideways (1).
9) Operate carefully the manual ratchets
(H3, H4) to lower the guide shoes on to
the retaining pins (94323).
10) Make sure that the guide shoes touch
equally the retaining pins. If necessary,
adjust the retaining pins.
2016
Top End Bearing − Removal, Inspection and Installation
2
H4
H3
I
I
013.627/05
Fig. 3
1
9432
