Maintenance3303−3/A2
Winterthur Gas & Diesel Ltd.
4/ 10
2.2 Crosshead − Lift (Piston
Removed)
1) Remove the four round nuts (2, Fig. 4)
from the connecting rod (4), refer to
9403−4.
2) Attach the stop plate (94370H) to the
bearing cover (1) and guide shoe (6).
3) Attach the lifting plate (94324) to
crosshead pin with the round nuts from
the piston rod foot.
4) Attach the hook of the engine room
crane to the lifting plate (94234).
5) Operate the engine room crane to lift
the crosshead pin (6) above the bottom
bores in the guideways (5).
6) Put the four retaining pins (94323) in
the holes in the guideways (5) as
shown.
7) Operate the engine room crane to
carefully lower the guide shoes (3) on
to the four retaining pins (94323).
8) Make sure that the guide shoes (3)
touch equally the retaining
pins (94323). If necessary, adjust the
retaining pins.
9) Remove the hook of the engine room
crane from the lifting plate (94234).
2016
Top End Bearing − Removal, Inspection and Installation
94324
II
I
013.034/05
94323
II
94370H
94040−M8
3
94324
I

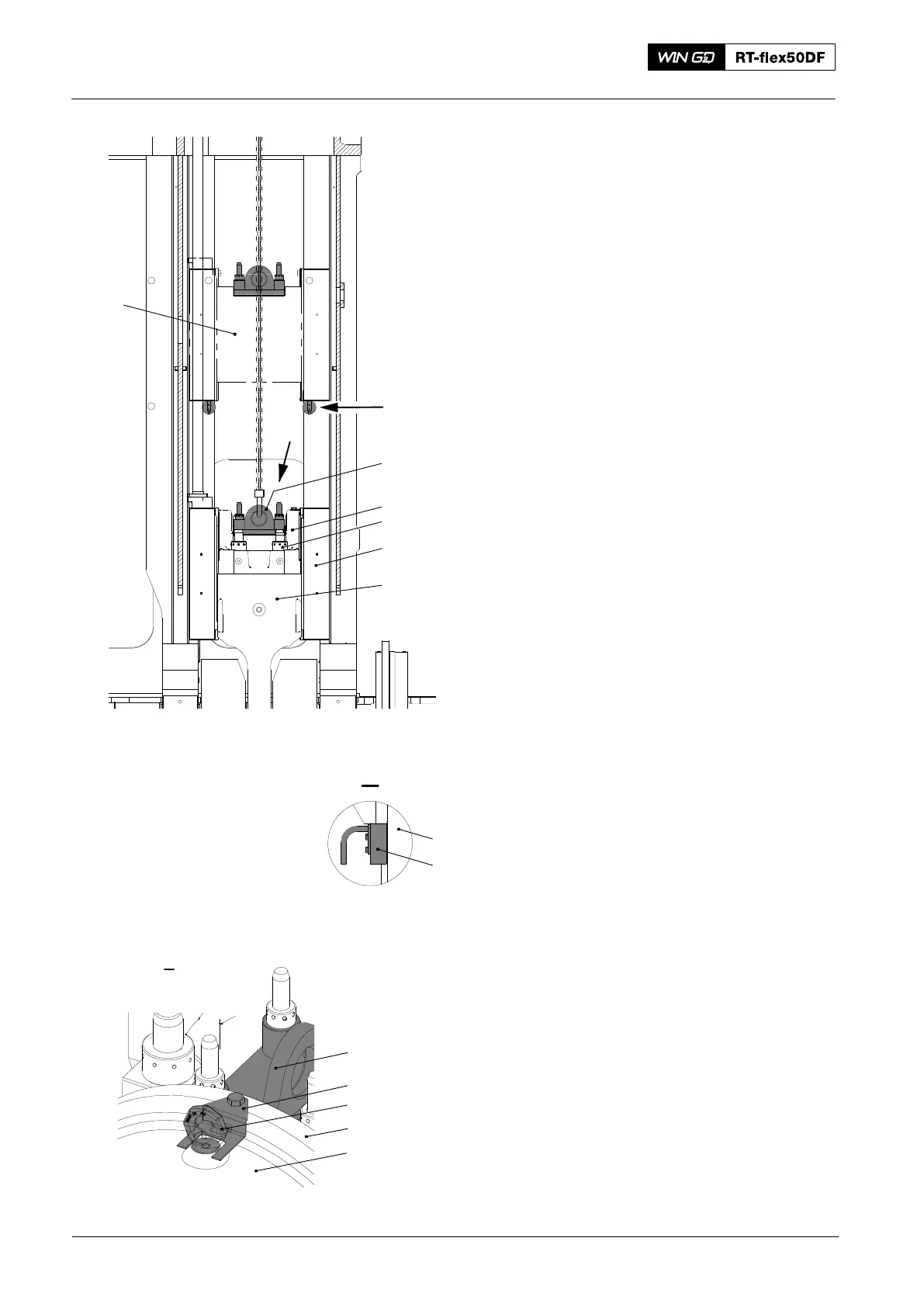

Fig. 4
1
2
3
5
4
1
6
