Maintenance3403−1/A1
Winterthur Gas & Diesel Ltd.
8/ 9

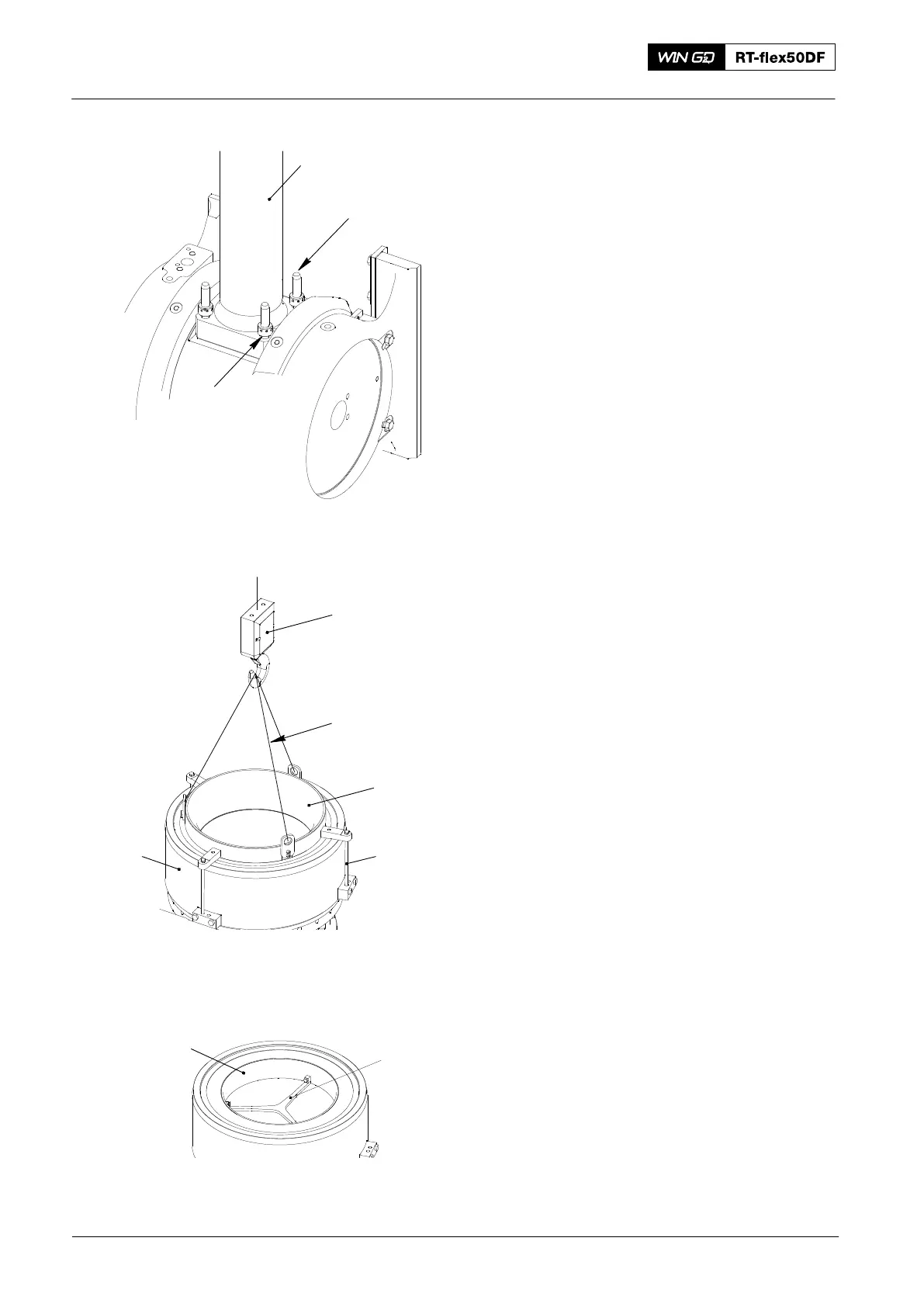

38) Put oil on the four elastic studs (2,
Fig. 17).
39) Attach the four round nuts (3) to the
elastic studs (2).
40) Tighten the four round nuts (3), refer to
9403−4.
41) Attach the engine room crane to the
tool (94209, Fig. 18).
42) Remove the three bolts (2).
43) Operate the engine room crane to
remove the tool (94209) from the
cylinder liner (3).
44) Make sure that the cylinder liner and
the anti-polishing ring (1, Fig.19) are
clean and in a satisfactory condition.
45) Put oil on the surfaces of anti-polishing
ring (1).
46) Connect the crane to the lifting
tool (94209).
47) Attach the tool (94208) to the
tool (94208).
48) Operate the crane to lower the
anti-polishing ring (1) into the cylinder
liner.
49) Remove the lifting tool (94209) and the
tool (94208).
Piston: Removal and Installation
2016
94209
94342
3
94208
1
1
2
1
2
3
Fig. 17
Fig. 18
Fig. 19
