Maintenance3603−1/A1
Winterthur Gas & Diesel Ltd.
2/ 3

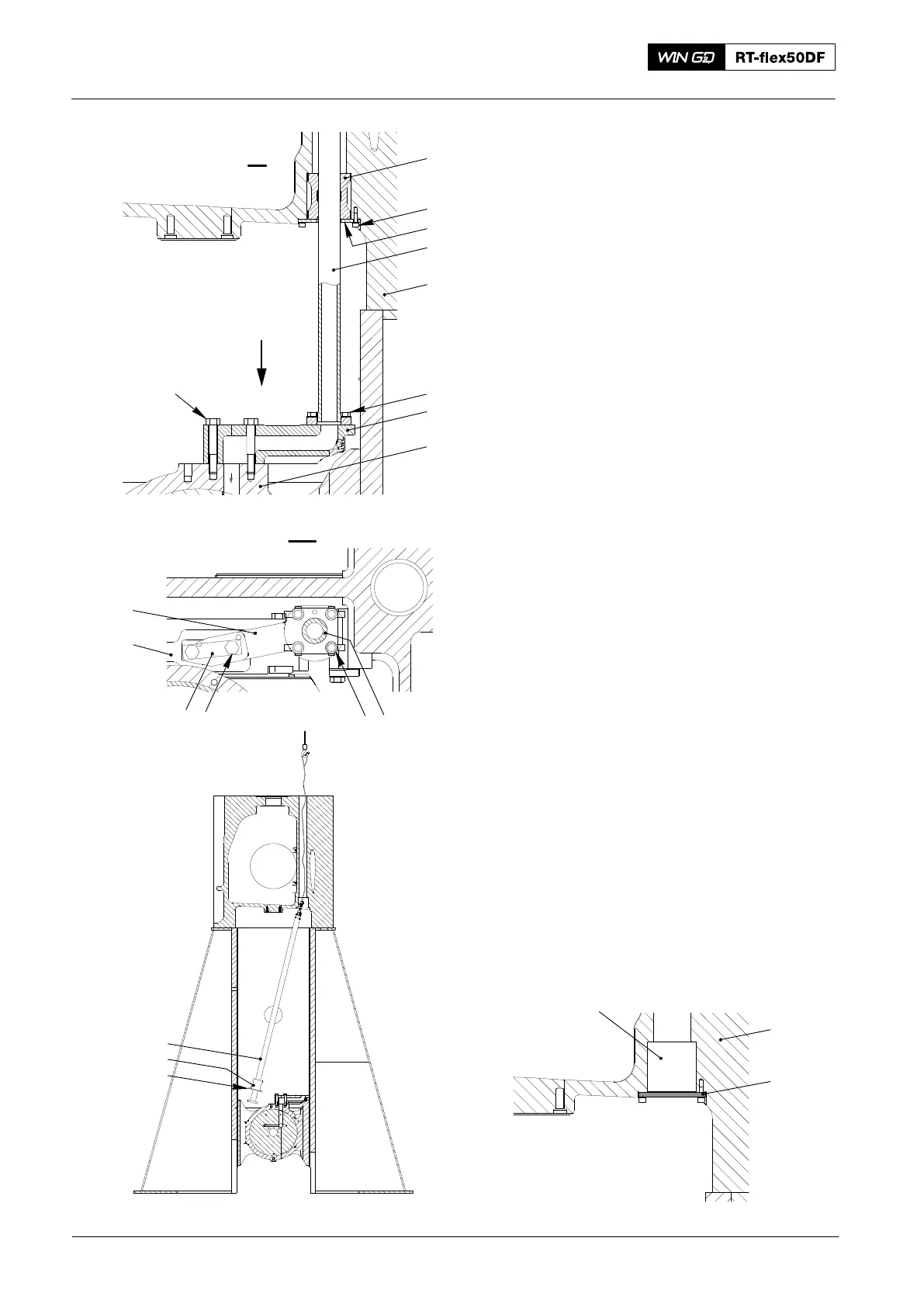

4) Loosen the screws (6, Fig. 2).
5) Loosen the screws (2).
6) Lower the ring holder (3) together with
sleeve (1).
7) Operate the turning gear to move the
crank to BDC.
8) Remove the inner pipe (4) together with
the sleeve (1) and the ring holder (3).
2. Oil Inlet Pipe
If the engine must operate with the
connecting rod removed do as follows:
1) Install the flange (94337B, Fig. 3) to the
inlet pipe (11).
013.417/05
5
94337B
Fig. 3
11
2016
Piston Cooling and Crosshead Lubrication: Removal and Installation of Inside Pipe
013.414/05
9
II
III
013.415/05
III
1
3
2
4
5
6
7
8
10 9
6
4
7
8
013.416/05
3
1
4
Fig. 2
