26) Operate the engine room crane and the
manual ratchet (H2, Fig. 5) to move the
SAC fully away from the platform.
27) Operate the engine room crane to lift
the front of the SAC. At the same time,
operate the manual ratchet (H2) to
lower the rear of the SAC.
28) Continue with step 27) until the SAC is
in a vertical position.
29) Remove the manual ratchet (H2).
30) Operate the engine room crane to
lower the SAC through the platform on
to an applicable surface.
31) Remove the engine room crane from
the chains (94666I).
32) Remove the chains (94666I) and the
four swivel lugs (94048−M16) from the
SAC.
Scavenge Air Cooler: Removal and Installation
2016

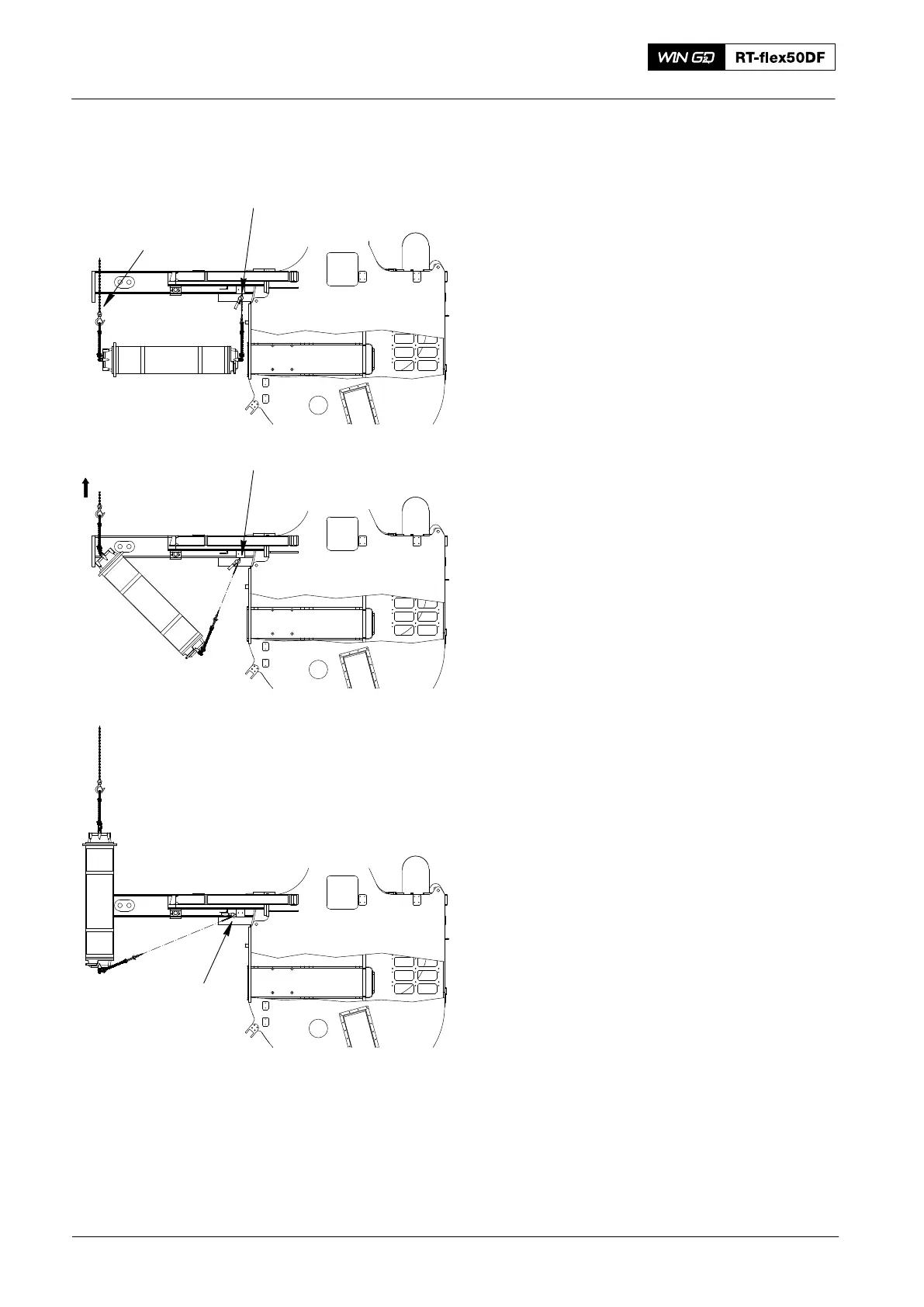

Fig. 5
Engine Room
Crane
H2
WCH00708
H2
H2
