Maintenance6708−2/A1
Winterthur Gas & Diesel Ltd.
2/ 8
2. Removal

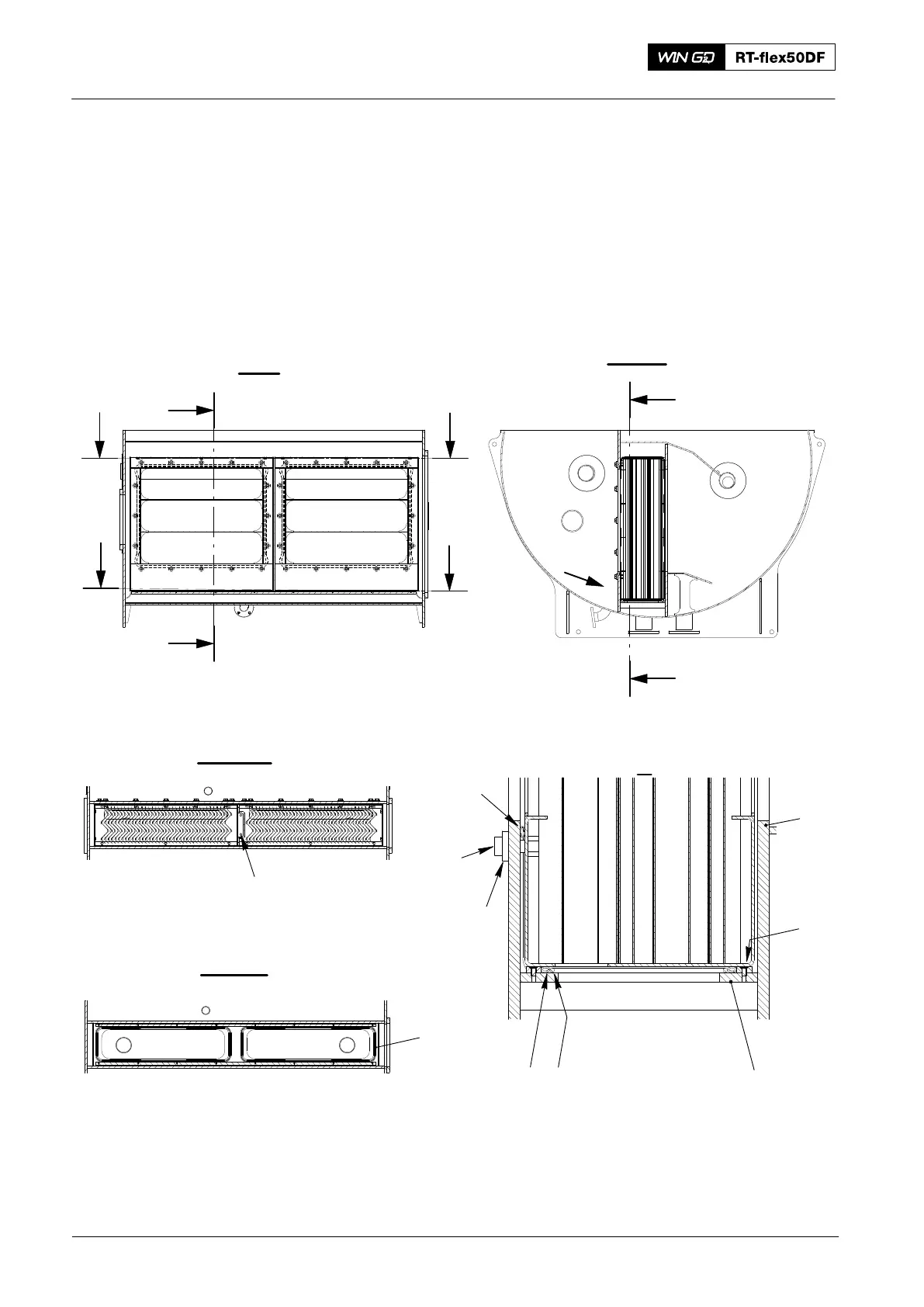

Note: The water separator has two parts. To remove the front or rear water
separator, remove the screws (7, Fig. 2) and the plate.
1) Remove the 32 screws (9).
2) Remove the 32 intermediate rings (8).
I - I
III
II
II
III
IV
IV
I
I
I
II - II
III - III
IV - IV
I
WCH03360
8
9
1
2
45
3
10
7
6
Fig. 2
2016
Water Separator: Removal and Installation 7 Cyl.
To Next Page
