Maintenance6708−2/A1
Winterthur Gas & Diesel Ltd.
8/ 8
CAUTION
Injury Hazard: The front
cover weighs
approximately 61 kg. Use
applicable equipment to lift
and move the cover.

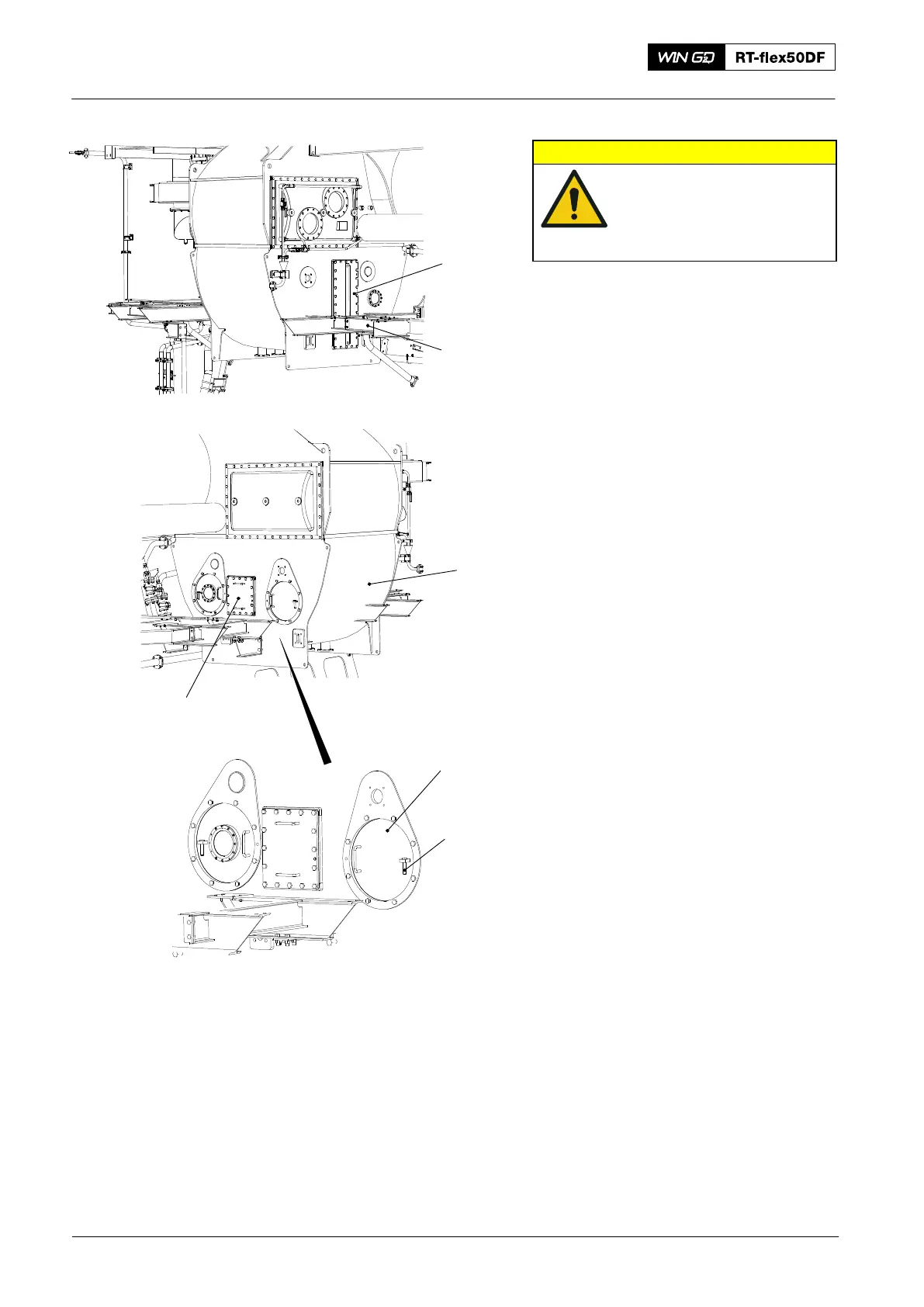

26) Attach the front cover (1, Fig. 14) and
the rear cover (4) to the scavenge air
receiver.
4. Completion
1) Install the platform (2) and the
applicable bottom plates that you
removed before.
2) Remove the pin (6) to unlock the
inspection cover (5).
3) Close the inspection cover (5).
4) Install the pin (6) in the stowage
position.
2016
Water Separator: Removal and Installation 7 Cyl.
FREE END
DRIVING END
4
WCH03354
WCH03355
1
2
3
Fig. 14
5
6
To Next Page
