WinGD RT-flex50DF - Page 507

Maintenance
8752−1/A1
Winterthur Gas & Diesel Ltd.
1/ 6
Removal, Grind, Installation
Tools:
1 Grinding tool 94870−1 1 Locknut 94870G
1 Screw-on sleeve 94870E 1 Template 94870H
1 Grinding tool / countersunk screw M8 94870F 1 Hand drill
1. Preparation 2.......................................................
2. Removal 3.........................................................
3. Sealing Faces − Grind 4.............................................
4. Installation 5.......................................................
II
I
III
I
V
IV
IV
III
V
Note: The different views are
shown in Fig. 2, Fig. 3, Fig. 8
and Fig. 9
II
VI
VI
VII
1
2
WCH02982
WCH02982

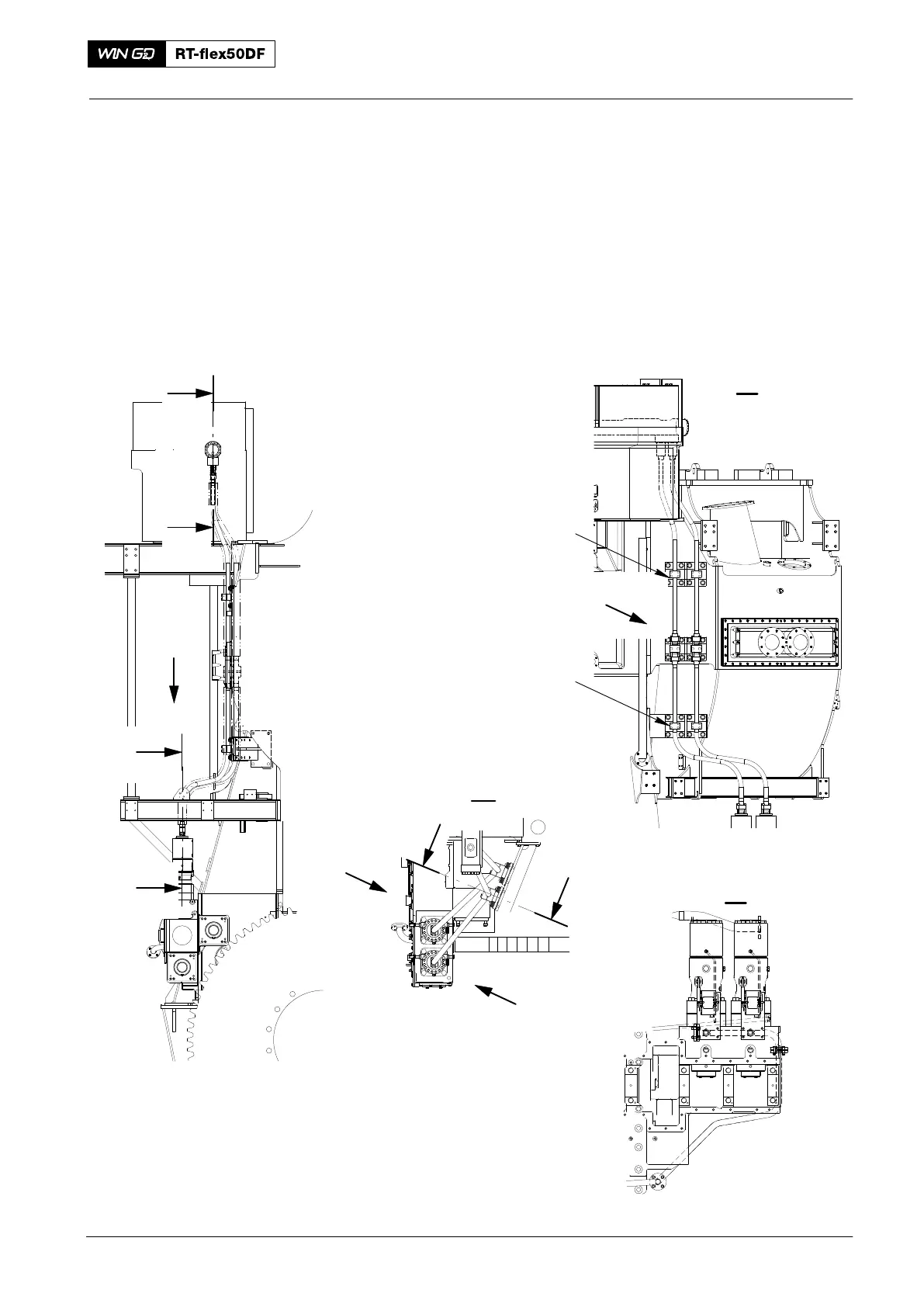

Fig. 1
HP Fuel Pipe
2016
