2. Removal
1) Remove the applicable pipe clamps (1
and 2, Fig. 1).
2) Remove the four screws (5, Fig. 3)
from the flange (4).
3) Carefully move the flange (4) up.
4) Loosen the two screws (10) on the
applicable intermediate piece (6).
5) Remove the four screws (1).
6) Carefully move the flange (2) down.
CAUTION
Injury Hazard: The weight
of the HP fuel pipe is
approximately 15kg. Use
approved equipment or
sufficient personnel to lift
and move the HP fuel pipe.
7) Carefully remove the HP fuel pipe (3).
8) Apply protection to the sealing faces
(SF) to prevent damage and
contamination.
9) Remove the four screws (8) from the
flange (7).
10) Carefully move the flange (7) down.
11) Remove the four screws (10 from the
flange (11).
12) Carefully move the flange (11) up.
13) Carefully remove the HP fuel pipe (9).
14) Apply protection to the sealing faces
(SF)to prevent damage and
contamination.
2016
HP Fuel Pipe: Removal, Grind, Installation
II - II
I - I
1
10
2
11
3
9
6
5
7
VII
4
8
3
9
10
IV - IV
6
SF
SF
SF
9
7
3
4

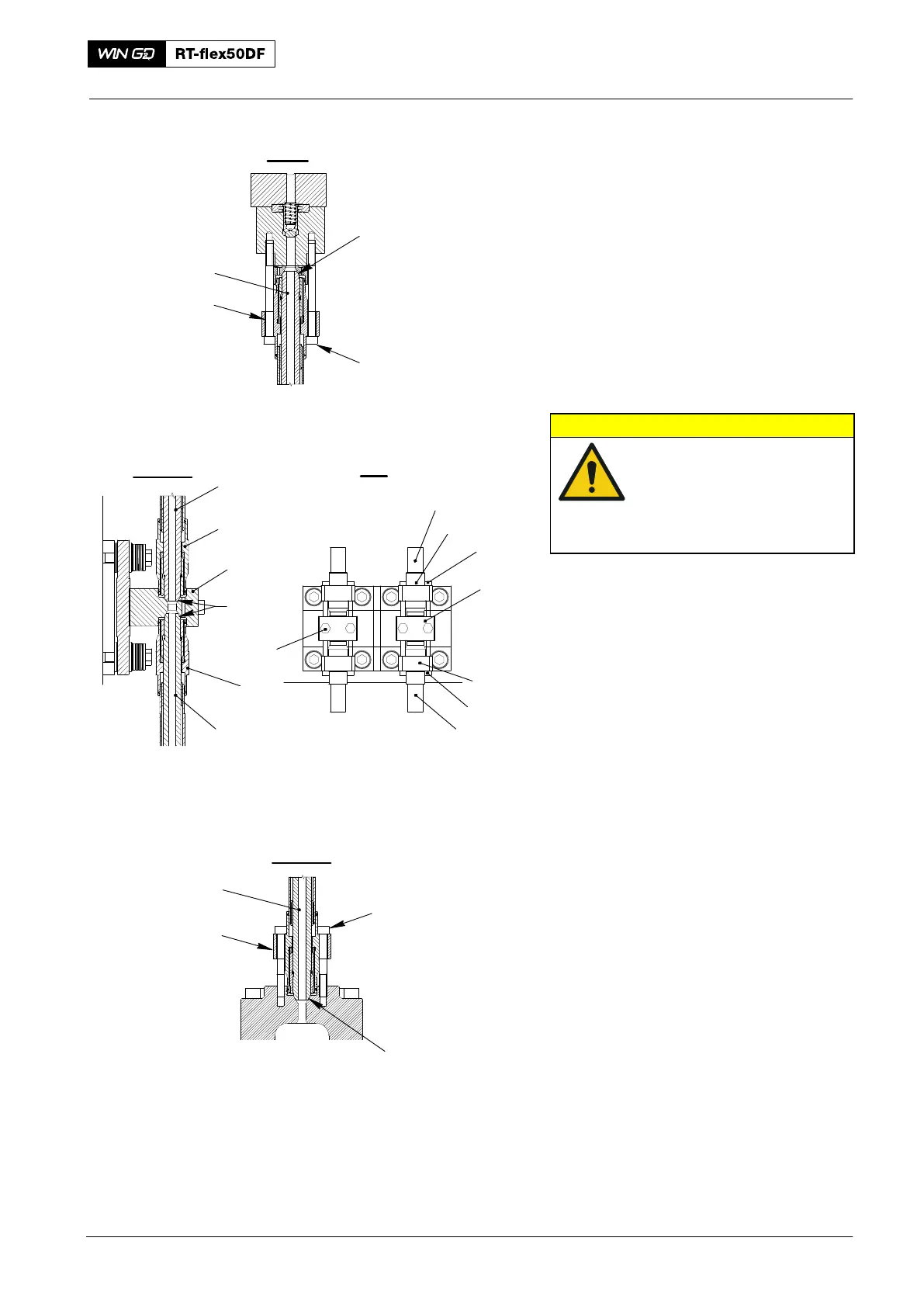

Fig. 3
