WinGD RT-flex50DF - Page 528

Maintenance9403−3/A1
Winterthur Gas & Diesel Ltd.
4/ 11

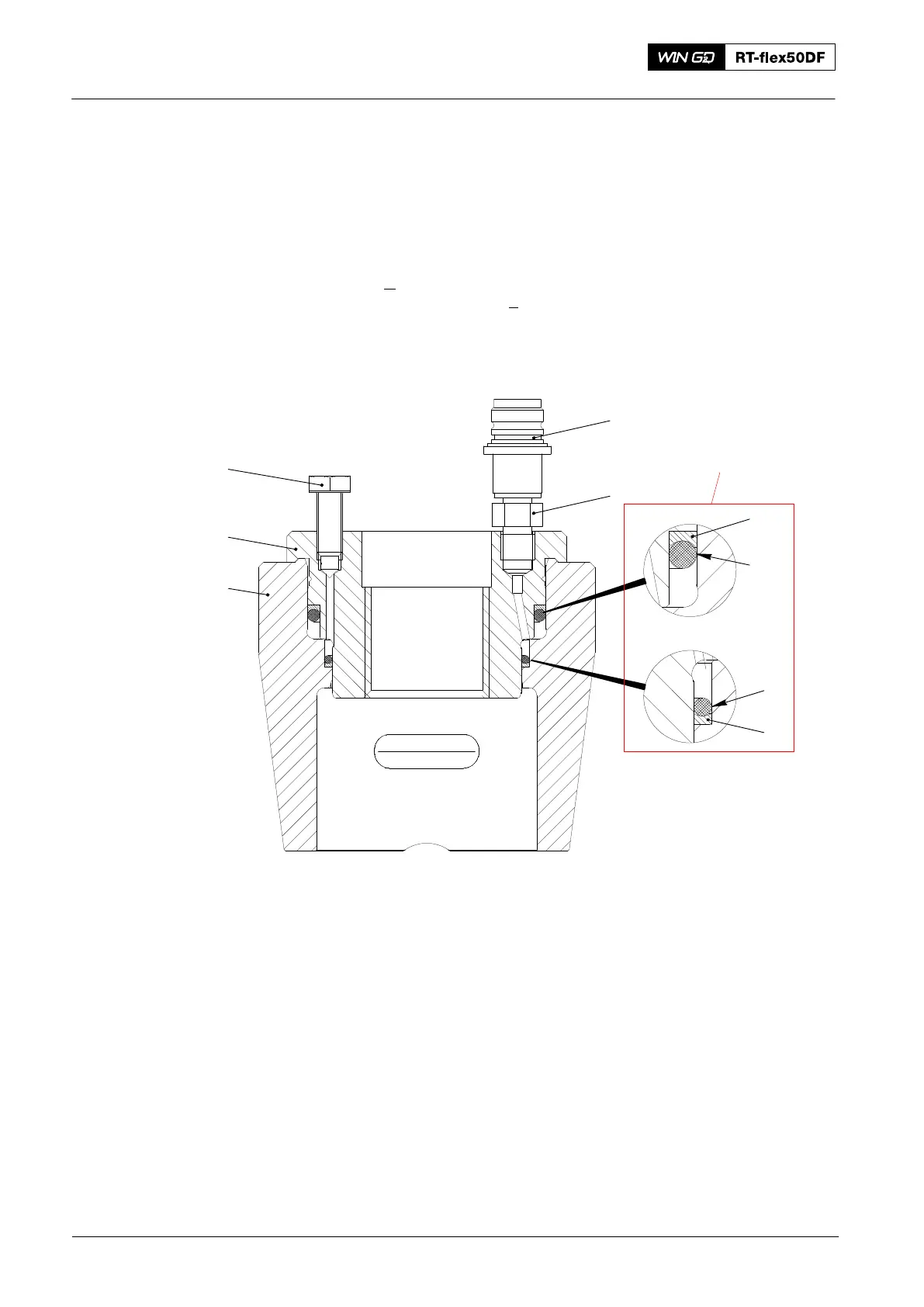

Table 3: Tool 94145 − Pre-tensioning Jack (Foundation Bolt and Engine Stay)
1 Piston 6 Back-up ring
2 Cylinder 7 O-ring
3 Vent screw 8 Back-up ring
4 Adapter 9 O-ring
5 Connection piece
94145−KJ K
it with back-up and O-rings
for pre-tensioning J
ack
3
1
2
5
013.471/05
6
7
9
8
4
Fig. 3
94145−KJ
2018−02
Hydraulic Pre-tensioning Jacks: Storage, Servicing and Maintenance
