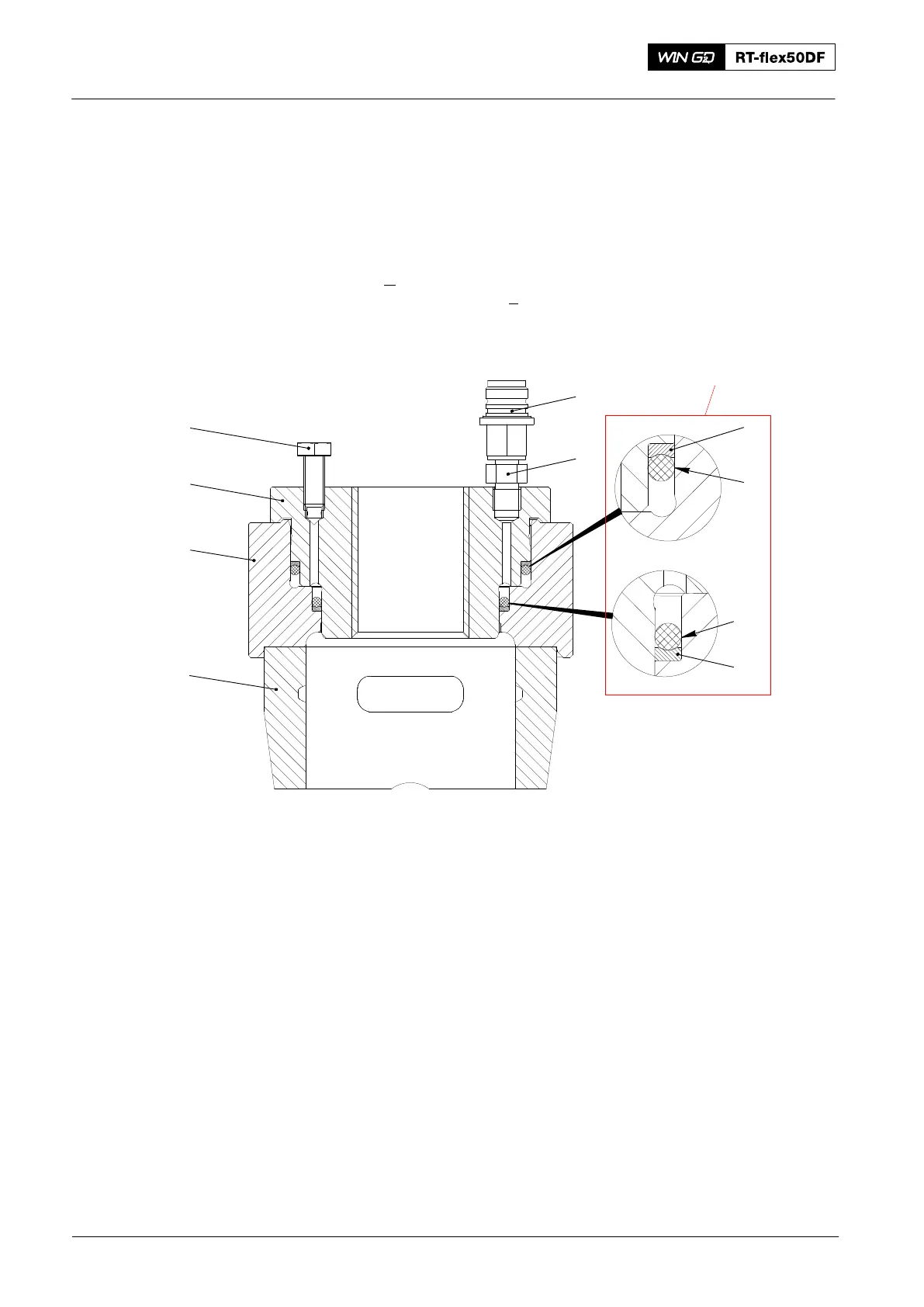

Table 7: Tool 94314 − Pre-tensioning Jack (Elastic Stud − Bottom End Bearing)
1 Piston 6 Back-up ring
2 Cylinder 7 O-ring
3 Vent screw 8 Back-up ring
4 Adapter 9 O-ring
5 Connection piece 10 Distance bush
94314−KJ K
it with back-up and O-rings
for pre-tensioning J
ack
3
1
2
5
4
10
013.474/05
6
7
9
8
Fig. 7
94314−KJ
Hydraulic Pre-tensioning Jacks: Storage, Servicing and Maintenance
2018−02
