Maintenance
9403−3/A1
Winterthur Gas & Diesel Ltd.
7/ 11

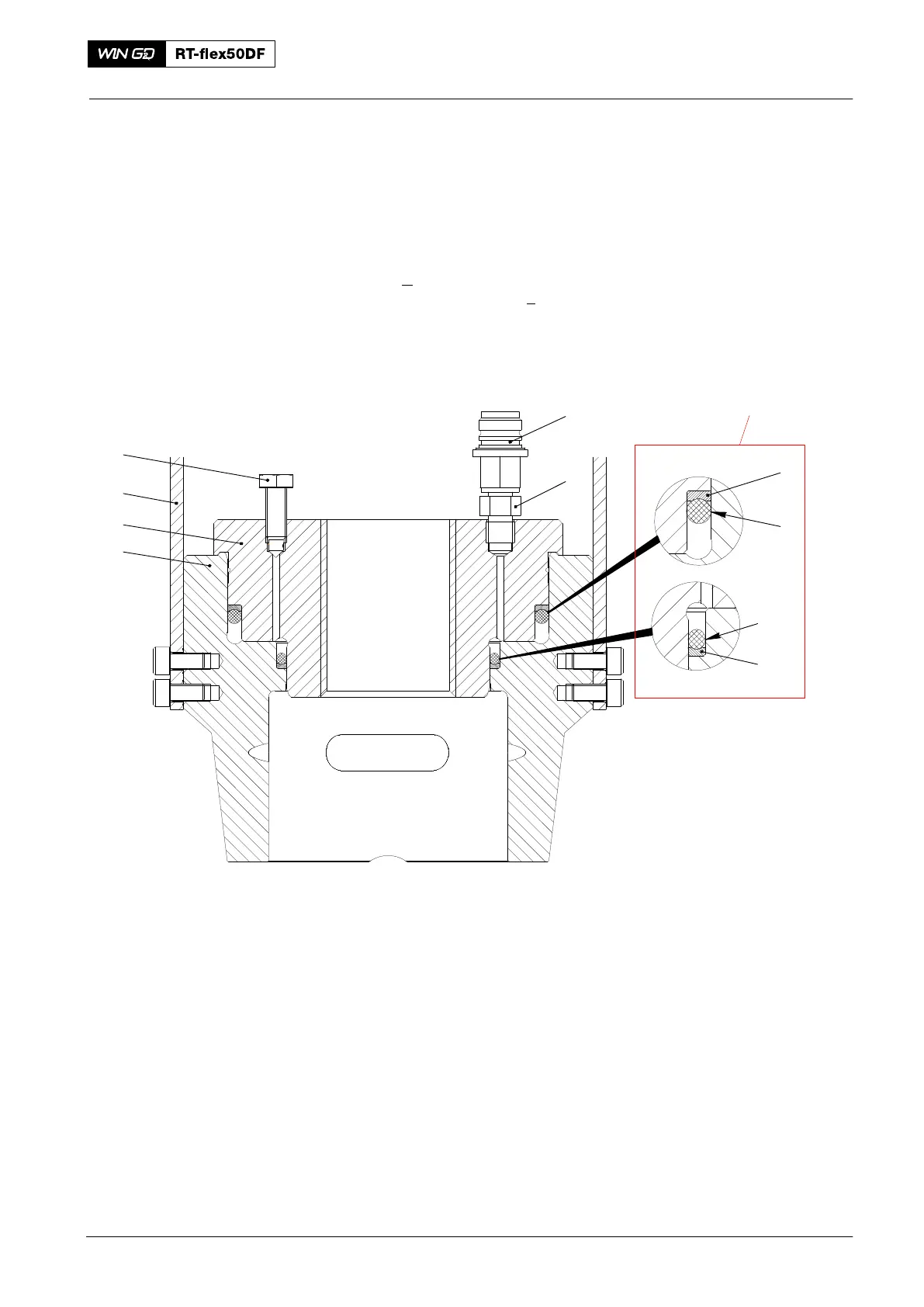

Table 6: Tool 94252 − Pre-tensioning Jack (Elastic Stud − Exhaust Valve Cage)
1 Piston 6 Back-up ring
2 Cylinder 7 O-ring
3 Vent screw 8 Back-up ring
4 Adapter 9 O-ring
5 Connection piece 10 Holder
94252−KJ K
it with back-up and O-rings
for pre-tensioning J
ack
013.475/05
3
10
1
5
4
2
6
7
9
8
Fig. 6
94252−KJ
Hydraulic Pre-tensioning Jacks: Storage, Servicing and Maintenance
2018−02
