Maintenance9403−3/A1
Winterthur Gas & Diesel Ltd.
6/ 11

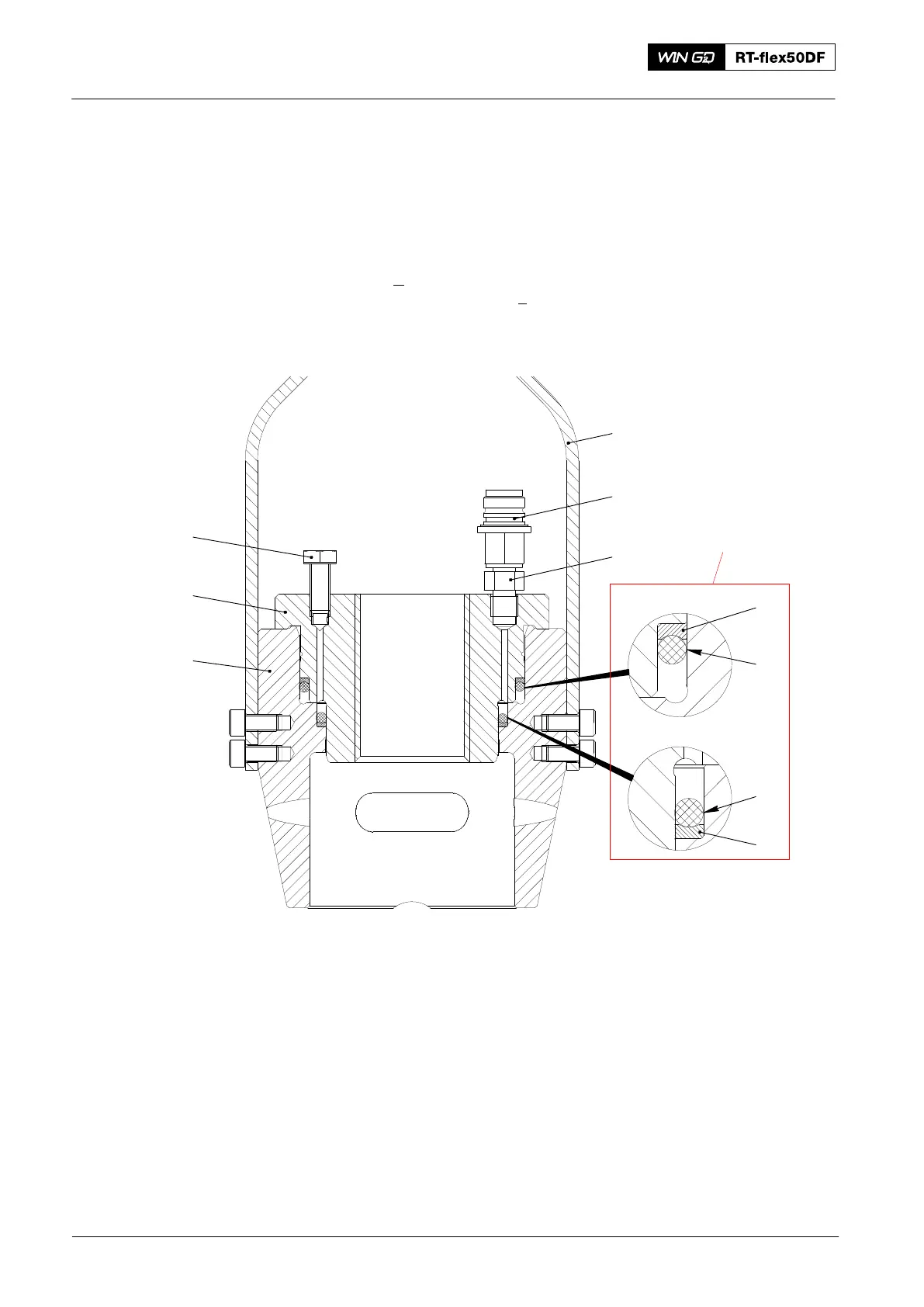

Table 5: Tool 94215A − Pre-tensioning Jack (Elastic Stud − Cylinder Cover)
1 Piston 6 Back-up ring
2 Cylinder 7 O-ring
3 Vent screw 8 Back-up ring
4 Adapter 9 O-ring
5 Connection piece 10 Holder
94215A−KJ K
it with back-up and O-rings
for pre-tensioning J
ack
013.472/05
3
1
2
5
4
10
6
7
9
8
Fig. 5
94215A−KJ
Hydraulic Pre-tensioning Jacks: Storage, Servicing and Maintenance
2018−02
