ELECTRICAL SYSTEM
M8540Narrow, M9540Narrow, WSM
N9-S6
PTO Speed Display Mode Switching (Setting Mode)
1. While pressing the PTO/Hour meter select switch (1), turn the
key switch to "ON" position.
The current numerical code starts flashing.
2. Each time the PTO/Hour meter select switch (1) is pressed, the
code changes in the order of [1] → [2] → [1]. Select the
appropriate code according to the table below.
3. Press and hold the PTO/Hour meter select switch (1) longer
than 2 seconds. The setting is put in memory, and the LCD
monitor (2) goes back to the PTO speed display mode.
4. Turn the key switch to "OFF" position to exit.
NOTE
• The setting will be cancelled if the key switch is turned OFF
halfway in the procedure.
9Y1210236ELS0007US0
Numerical code PTO speed (min
-1
(rpm))
1
540 (Single speed)
540 / 540E
(2 speed PTO gear shift type)
2
540 / 1000
(2 speed PTO gear shift type)

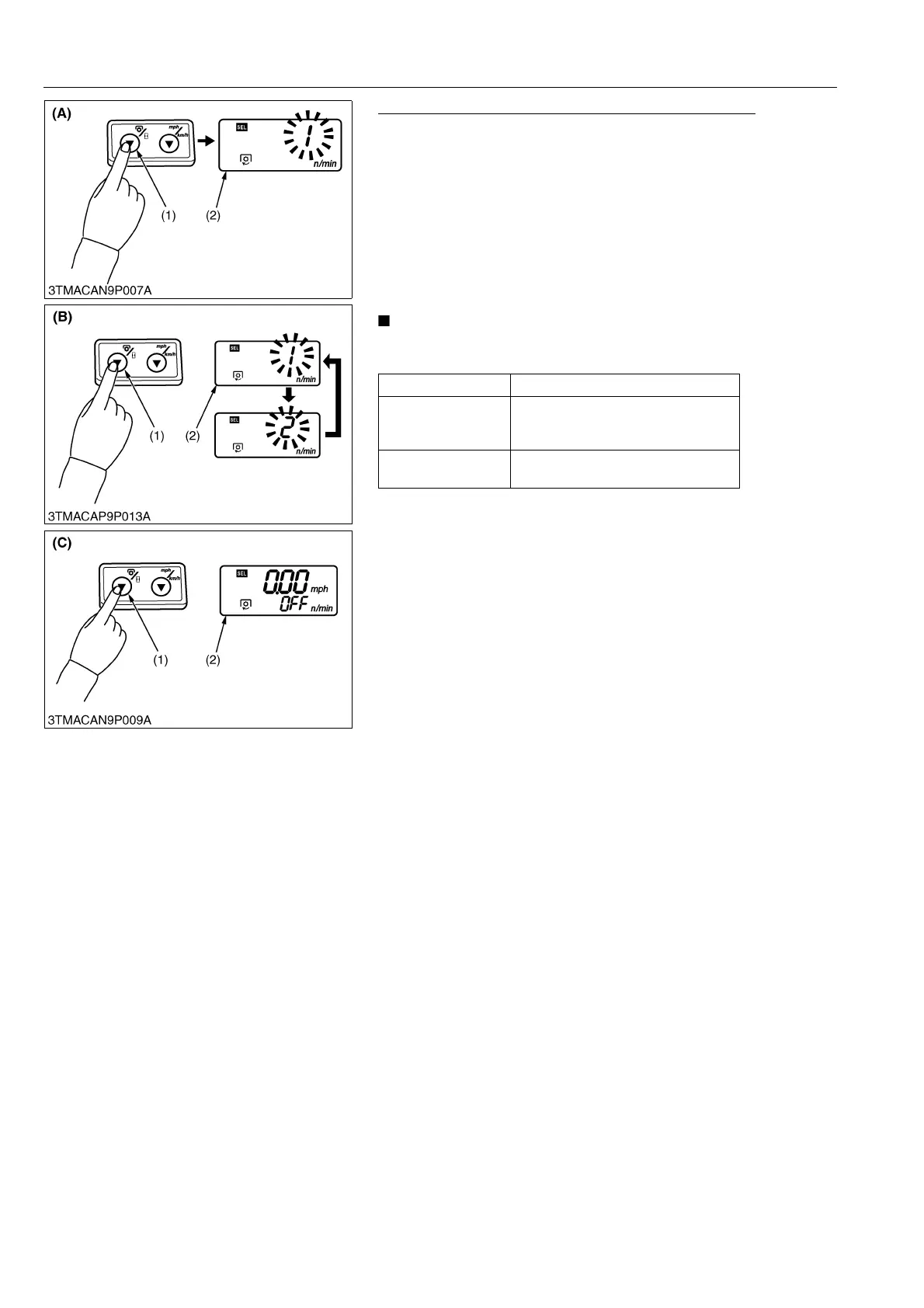

(1) PTO/Hour Meter Select Switch
(2) LCD Monitor
(A) Procedure to enter the PTO
speed display mode switching
(B) Procedure to select numerical
code
(C) Procedure to put in memory
KiSC issued 07, 2013 A
