Directions for Storage
• When connecting the battery, do not reverse the polarities.
Connection with reverse polarities will cause spark and
troubles to the battery and electrical system in the tractor.
• When disconnecting the cable from the battery, start with
the negative terminal first.
• When connecting the cable to the battery, start with the
positive terminal first.
• Reversing the steps may cause short-circuiting, should a
metallic tool touch the terminals.
• When storing the tractor for long periods of time, remove
the battery from the tractor and store in a cool, dry place.
9Y1210236GEG0018US0
Cleaning Air Cleaner Element
1. Remove the air cleaner cover (4) and primary element (2).
2. Clean the primary element if:
• When dry dust adheres to the element, blow compressed air
from the inside turning the element. Pressure of
compressed air must be under 205 kPa (2.1 kgf/cm
2
,
30 psi).
• When carbon or oil adheres to the element, soak the
element in detergent for 15 minutes then wash it several
times in water, rinse with clean water and dry it naturally.
After element is fully dried, inspect inside of the element
with a light and check if it is damaged or not.
3. Replace the primary element (2) :
Once a year or after every six times of cleaning, whichever
comes first.
• The air cleaner uses a dry element, never apply oil.
• Do not run the engine with filter element removed.
• Be sure to refit the dust cup with the arrow ↑ (on the rear of
cup) upright. If the dust cup is improperly fitted, evacuator
valve will not function and dust will adhere to the element.
• Do not touch the secondary element except in cases where
replacing is required.
Q Evacuator Valve
Open evacuator valve once a week under ordinary conditions or
daily when used in a dusty place to get rid of large particles of dust
and dirt.
9Y1210236GEG0019US0

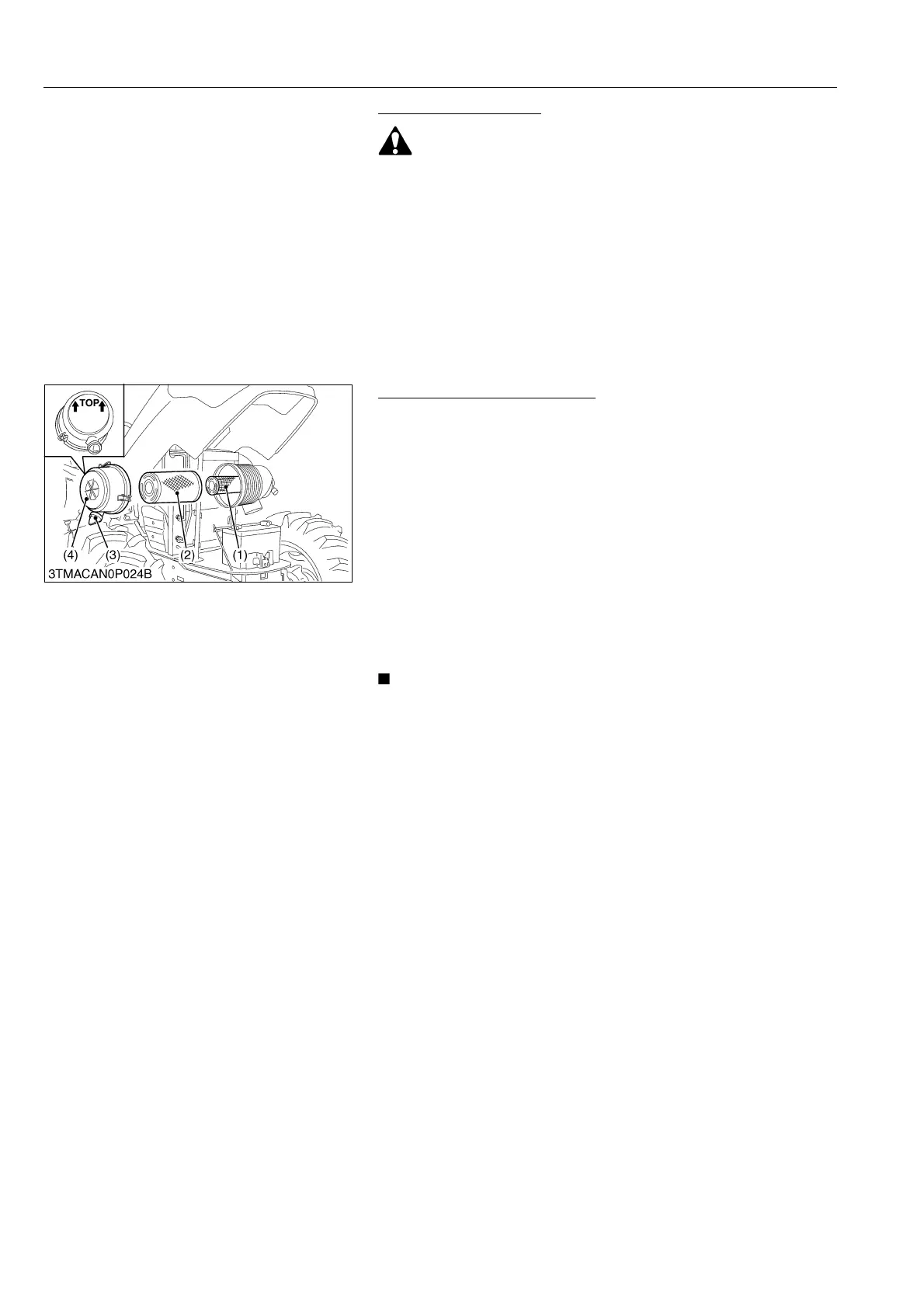

(1) Secondary (Safety) Element
(2) Primary Element
(3) Evacuator Valve
(4) Cover
