GENERAL
M8540Narrow, M9540Narrow, WSM
NG-23

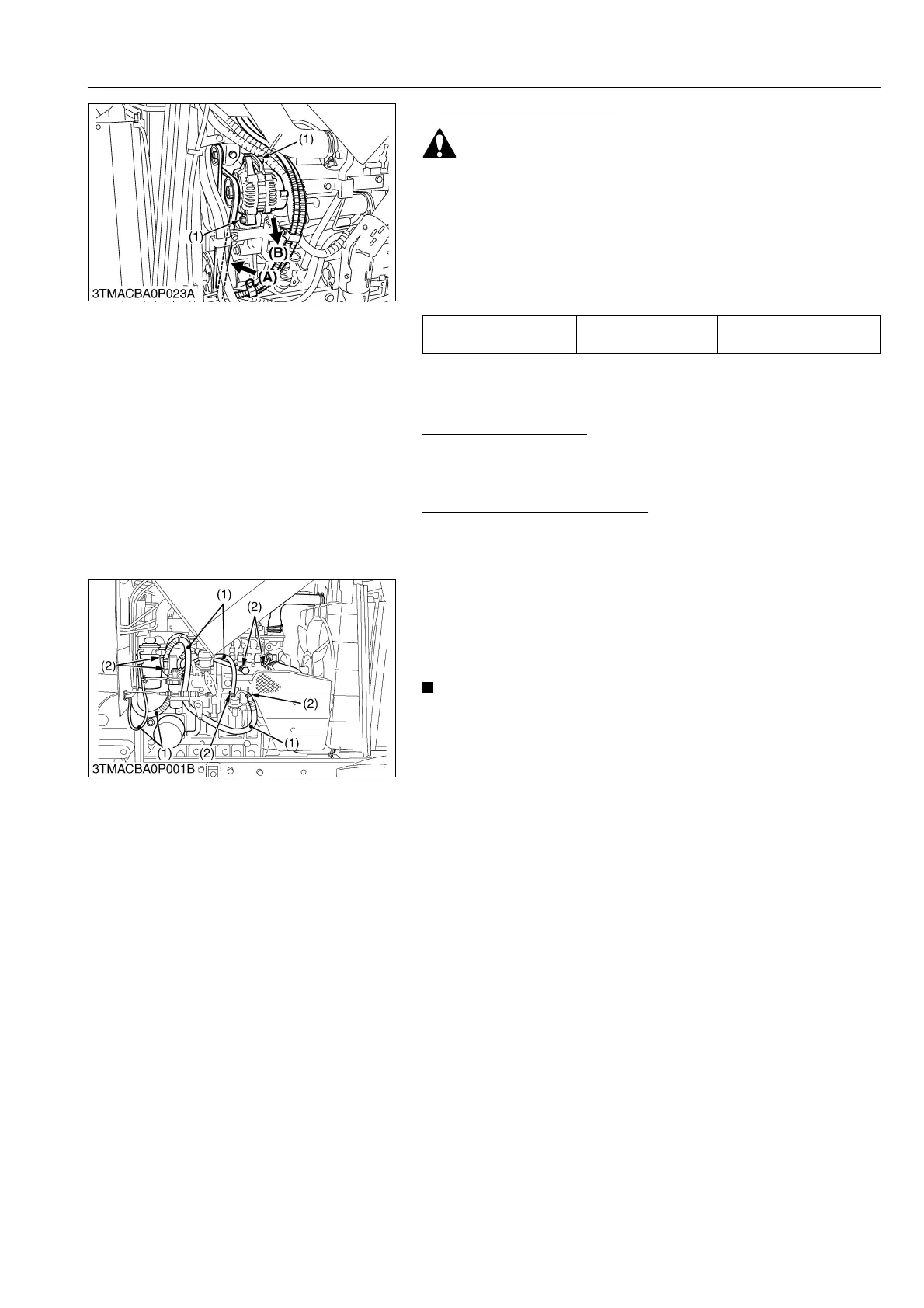

Adjusting Fan Belt Tension
• Be sure to stop the engine before checking belt tension.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to belt between pulleys.
3. If tension is incorrect, loosen the alternator mounting bolts and,
using a lever placed between the alternator and the engine
block, pull the alternator out until the deflection of the belt falls
within acceptable limits.
4. Replace fan belt if it is damaged.
9Y1210236GEG0020US0
Adjusting Brake Pedal
1. To check and adjusting for brake pedal, refer to "[1] CHECKING
AND ADJUSTING" at "N5. BRAKES" section.
9Y1210236GEG0021US0
Adjusting Parking Brake Lever
1. To check and adjusting for parking brake lever, refer to "[1]
CHECKING AND ADJUSTING" at "N5. BRAKES" section.
9Y1210236GEG0022US0
Checking Fuel Line
1. Check to see that all lines and hose clamps are tight and not
damaged.
2. If hoses and clamps are found worn or damaged, replace or
repair them at once.
• If the fuel line is removed, be sure to properly bleed the fuel
system. (Refer to "[14] OTHERS" in this section.)
9Y1210236GEG0023US0
Belt tension Factory specification
10 to 12 mm
0.39 to 0.47 in.
(1) Bolt (A) Check the belt tension
(B) To tighten
(1) Fuel Line (2) Clamp Band
To Next Page
