Lubricating Grease Fittings
1. Apply a small amount of multipurpose grease to following points
every 100 hours.
2. If you operated the machine in extremely wet and muddy
condition, lubricate grease fittings more often.
9Y1210236GEG0024US0

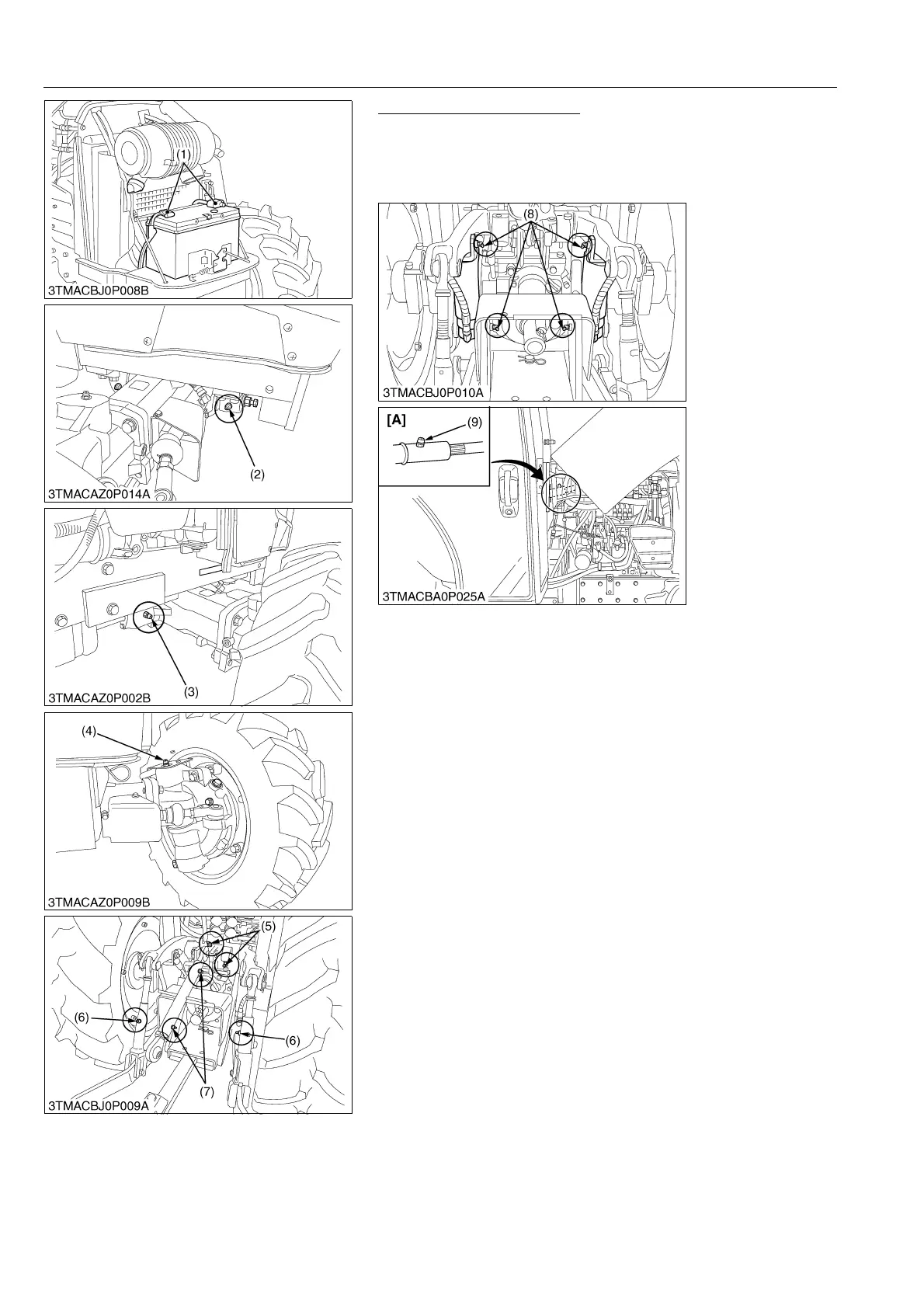

(1) Battery Terminals
(2) Grease Fitting (Front Axle Support)
(3) Grease Fitting (Front Axle Support)
(4) Grease Fitting (Knuckle Shaft)
[RH, LH]
(5) Grease Fitting (Top Link Bracket)
(6) Grease Fitting (Lifting Rod)
(7) Grease Fitting (Top Link)
(8) Grease Fitting (Hydraulic Lift
Cylinders Pin)
(9) Grease Fitting (Steering Joint Shaft)
[A] CABIN Model
