GENERAL
M8540Narrow, M9540Narrow, WSM
NG-27

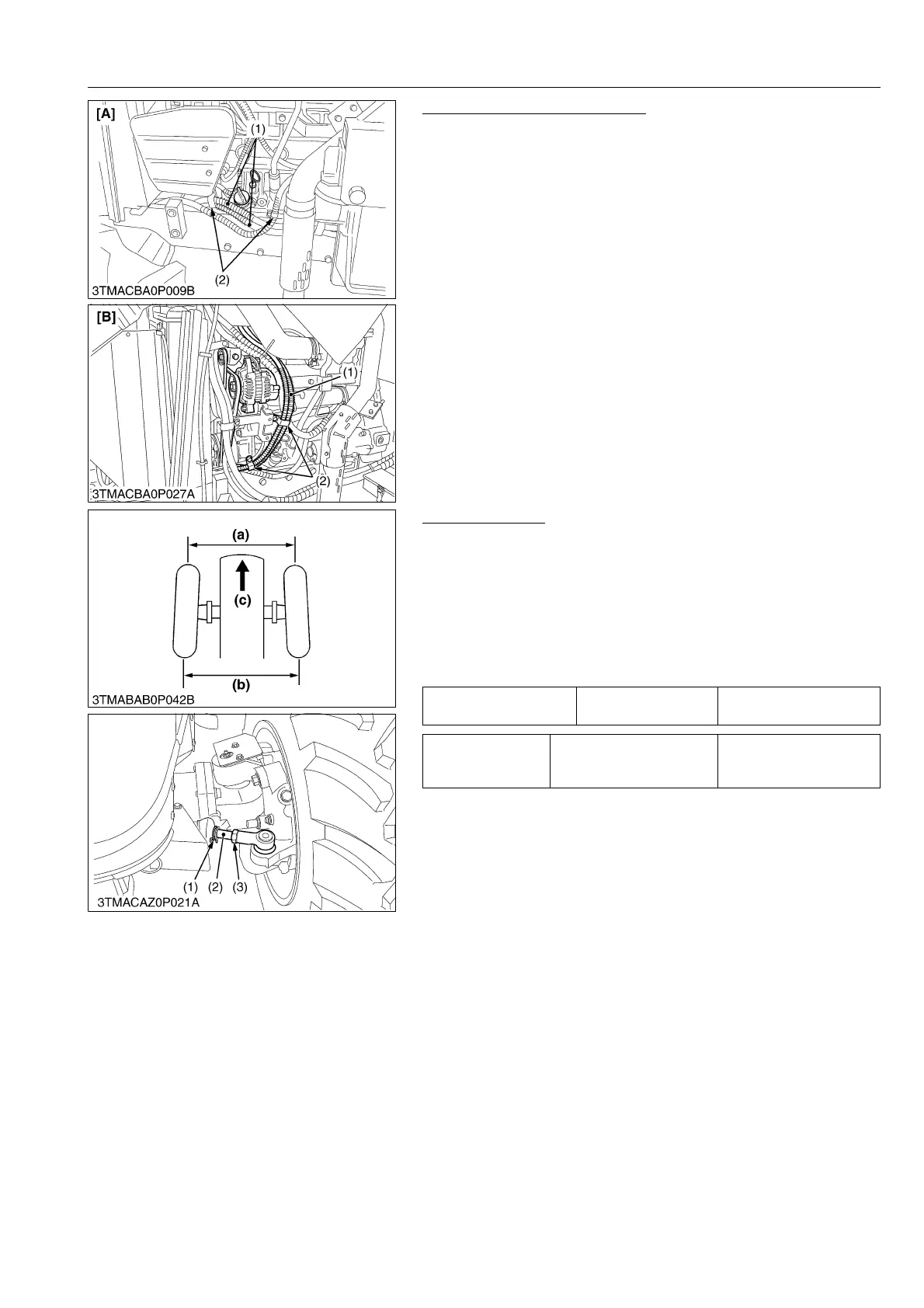

Checking Power Steering Line
1. Check to see that all line and hose clamps are tight and not
damaged.
2. If hoses and clamps are found worn or damaged, replace or
repair them at once.
9Y1210236GEG0028US0
Adjusting Toe-in
1. Park tractor on a flat place.
2. Turn steering wheel so front wheels are in the straight ahead
position.
3. Lower the implement, lock the park brake and stop the engine.
4. Measure distance between tire beads at front of tire, hub height.
5. Measure distance between tire beads at rear of tire, hub height.
6. Front distance should be shorter than rear distance.
7. If not, adjust tie-rod length.
Q Toe-in Adjustment
1. Detach the snap ring (1).
2. Loosen the tie-rod nut (3).
3. Turn the tie-rod joint (2) to adjust until the proper toe-in
measurement is obtained.
4. Retighten the tie-rod nut (3).
5. Attach the snap ring (1) of the tie-rod joint.
9Y1210236GEG0029US0
(1) Power Steering Hose
(2) Clamp
[A] ROPS Model
[B] CABIN Model
Toe-in (b–a) Factory specification
2.0 to 8.0 mm
0.08 to 0.31 in.
Tightening torque Tie-rod nut
167 to 196 N·m
17 to 20 kgf·m
123.2 to 144.6 lbf·ft
(1) Snap Ring
(2) Tie-rod Joint
(3) Tie-rod Nut
(a) Wheel-to-wheel distance at front
(b) Wheel-to-wheel distance at rear
(c) "FRONT"
