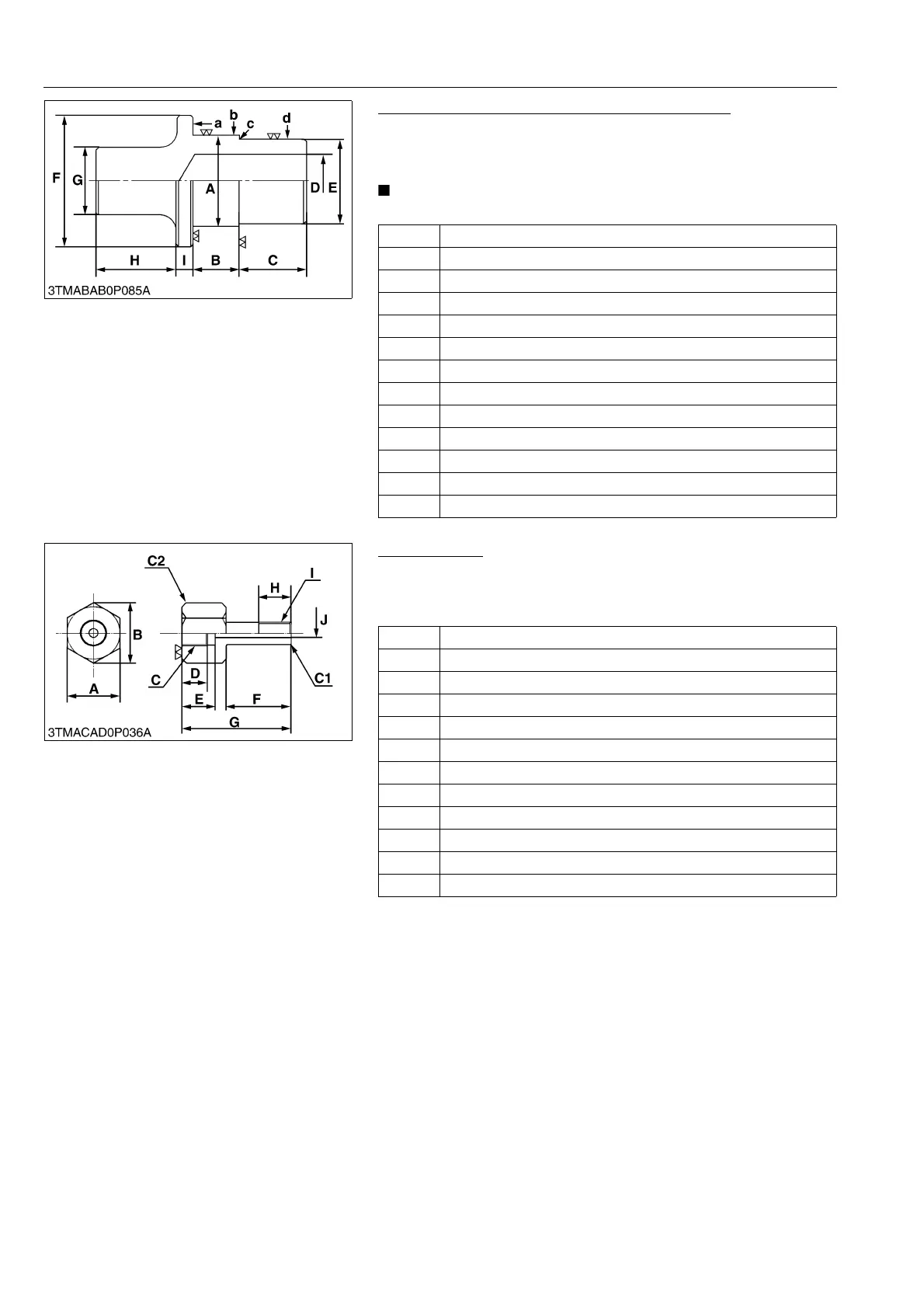

Hydraulic Arm Shaft Bushing Press-Fitting Tool
Application
• Use for replacing the hydraulic arm shaft bushings in the
hydraulic cylinder body.
• Unless otherwise specified: All surface 12.5 µm (0.0005 in.)
9Y1210236GEG0068US0
Valve Adaptor
Application
• Use for measuring the system pressure of shuttle valve, 4WD /
Bi-speed turn and PTO clutch valve relief pressure.
9Y1210236GEG0069US0
A 49.85 to 49.95 mm (1.963 to 1.966 in.)
B 15 mm (0.59 in.)
C 50 mm (1.969 in.)
D 30 mm (1.18 in.)
E 44.85 to 44.95 mm (1.766 to 1.770 in.)
F 78 mm dia. (3.07 in. dia.)
G 40 mm dia. (1.57 in. dia.)
H 50 mm (1.97 in.)
I 20 mm (0.79 in.)
a 6.3 µm (0.00025 in.)
b 6.3 µm (0.00025 in.)
c 6.3 µm (0.00025 in.)
d 6.3 µm (0.00025 in.)
A 24 mm (0.94 in.)
B 27.7 mm (1.09 in.)
C PS1/4
D 11 mm (0.43 in.)
E 15 mm (0.59 in.)
F 40 mm (1.57 in.)
G 60 mm (2.36 in.)
H 15 mm (0.59 in.)
I PT1/8
J 4 mm dia. (0.15 in. dia.)
C1 Chamfer 1 mm (0.039 in.)
C2 Chamfer 2 mm (0.079 in.)
