GENERAL
M8540Narrow, M9540Narrow, WSM
NG-45

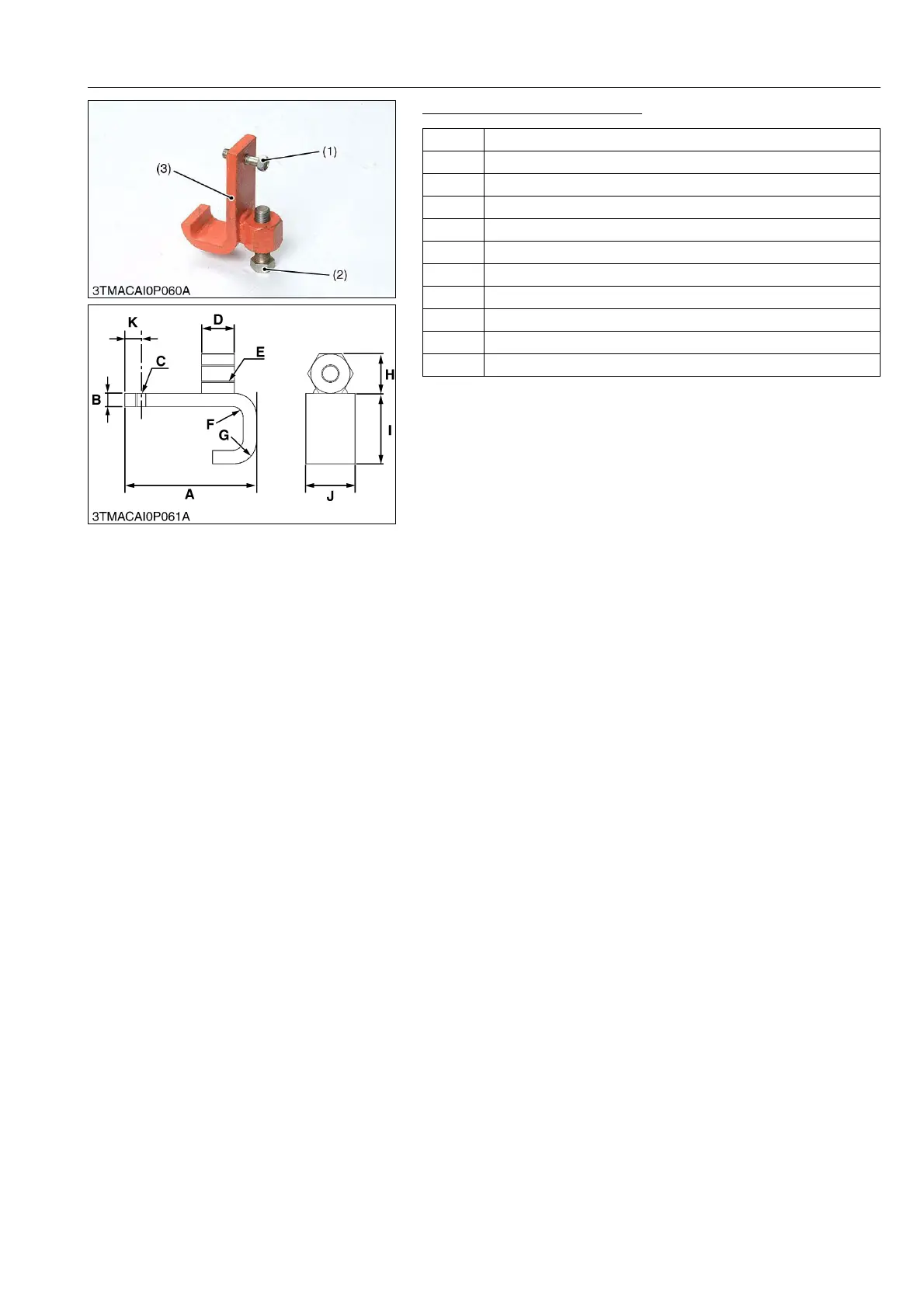

Front Axle Rocking Restrictor
9Y1210236GEG0070US0
A 120 mm (4.72 in.)
B 12 mm (0.72 in.)
C M10 × P1.25
D 30 mm (1.18 in.)
E M16 × P1.5
F 10 mm (0.39 in.)
G 20 mm (0.79 in.)
H 36 mm (1.42 in.)
I 64 mm (2.52 in.)
J 45 mm (1.77 in.)
K 20 mm (0.79 in.)
(1) Screw
M10 × P1.25 × L50 mm (2 in.)
(2) Screw
M16 × P1.5 × L50 mm (2 in.)
(3) Rocking Restrictor
KiSC issued 07, 2013 A
