wsm M8540NARROW - Page 90

CLUTCH
M8540Narrow, M9540Narrow, WSM
N2-S6

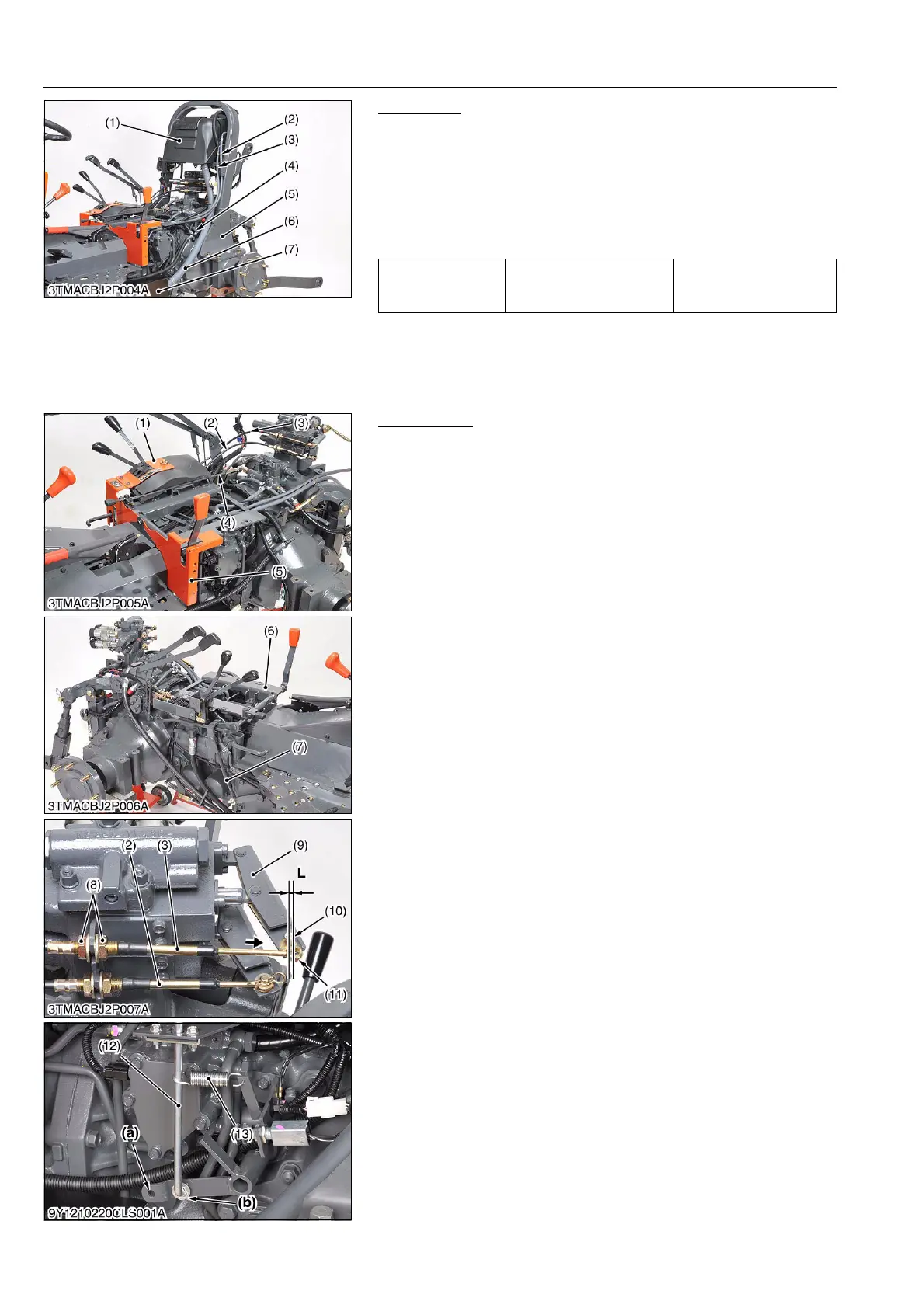

Rear ROPS
1. Disconnect the connectors for the trailer coupler, auxiliary
power socket, rear combination lamp R.H. and L.H..
2. Disconnect the breather hoses (2) and (3).
3. Disconnect the fuel hose (6) from the left lower fuel tank (7).
4. Disconnect the fuel breather hose (4) from T-joint.
5. Remove the rear ROPS (5) with fuel upper tank (1).
(When reassembling)
9Y1210236CLS0010US0
Seat Bracket
1. Remove the hydraulic remote valve wires (2) and (3).
2. Remove the lowering speed link rod (4).
3. Remove the remote control lever cover (1).
4. Remove the cover (5).
5. Remove the H-L shift rod (7).
6. Remove the ground PTO rod (12) and spring (13).
7. Remove the seat bracket (6).
(When reassembling)
• Adjust the remote valve wire.
• Be sure to assemble the ground PTO rod (12) to the hole (b).
(Lever Side)
1. Screw in the wire to the rod end fully.
2. Shift the control lever forward and fix the wire with lock nuts to
contact the control lever and stopper.
3. Fix the wire with retaining nut center of thread.
(Valve Side)
1. Pull the valve lever (9) to a full engage position.
2. Pull out the wire (3) fully, and fix the wire with retaining nuts (8)
to be a length "L" between wire end (11) and valve lever pin
(10) as shown photo.
9Y1210236CLS0011US0
Tightening torque
Rear ROPS mounting
screw (M16, 9T)
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
(1) Upper Fuel Tank
(2) Breather Hose
(3) Breather Hose
(4) Fuel Breather Hose
(5) Rear ROPS
(6) Fuel Hose
(7) Lower Fuel Tank L.H.
(1) Remote Control Lever Cover
(2) Remote Valve Wire
(3) Remote Valve Wire
(4) Lowering Speed Link Rod
(5) Cover
(6) Seat Bracket
(7) H-L Shift Rod
(8) Retaining Nut
(9) Valve Lever
(10) Lever Pin
(11) Wire End
(12) Ground PTO Rod
(13) Spring
L: 0 to 3.0 mm (0 to 0.11 in.)
(a) Hole for CABIN Model
(b) Hole for ROPS Model
KiSC issued 07, 2013 A
