wsm M8540NARROW - Page 91

CLUTCH
M8540Narrow, M9540Narrow, WSM
N2-S7
Shift Cover and Steps

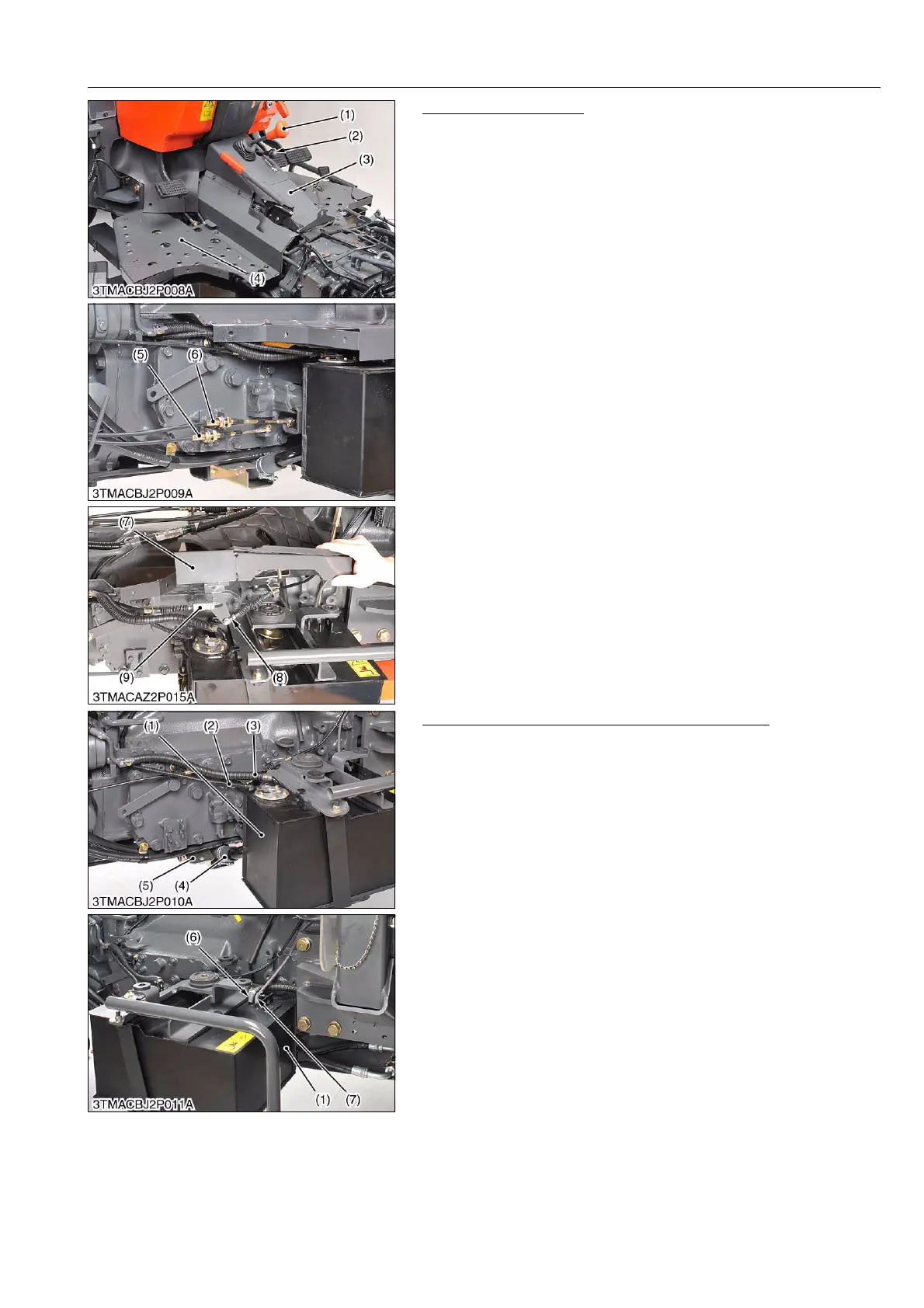

1. Remove the main shift grip (1) and tilt lever grip (2).
2. Remove the shift cover (3).
3. Remove the step L.H. (4).
4. Remove the main shift wire (6) and select shift wire (5).
5. Remove the step R.H. (7), hand accelerator wire (9) and foot
accelerator wire (8) as shown photo.
(When reassembling)
• Assemble the main shift wire and select shift wire with retaining
nut center of thread.
9Y1210236CLS0012US0
Fuel Tank R.H., Brake Rod and Hydraulic Pipes
1. Remove the fuel hose cover (5) and disconnect the fuel hose (4)
from the lower fuel tank R.H. (1).
2. Disconnect the fuel breather hose (3) and fuel sensor connector
(2).
3. Disconnect the fuel hose (6), fuel return hose (7) and remove
the lower fuel tank R.H. (1).
9Y1210236CLS0013US0
(1) Main Shift Grip
(2) Tilt Lever Grip
(3) Shift Cover
(4) Step L.H.
(5) Select Shift Wire
(6) Main Shift Wire
(7) Step R.H.
(8) Foot Accelerator Wire
(9) Hand Accelerator Wire
(1) Lower Fuel Tank R.H.
(2) Connector (Fuel Sensor)
(3) Fuel Breather Hose
(4) Fuel Hose
(5) Fuel Hose Cover
(6) Fuel Hose
(7) Fuel Return Hose
