CLUTCH
M8540Narrow, M9540Narrow, WSM
N2-S8

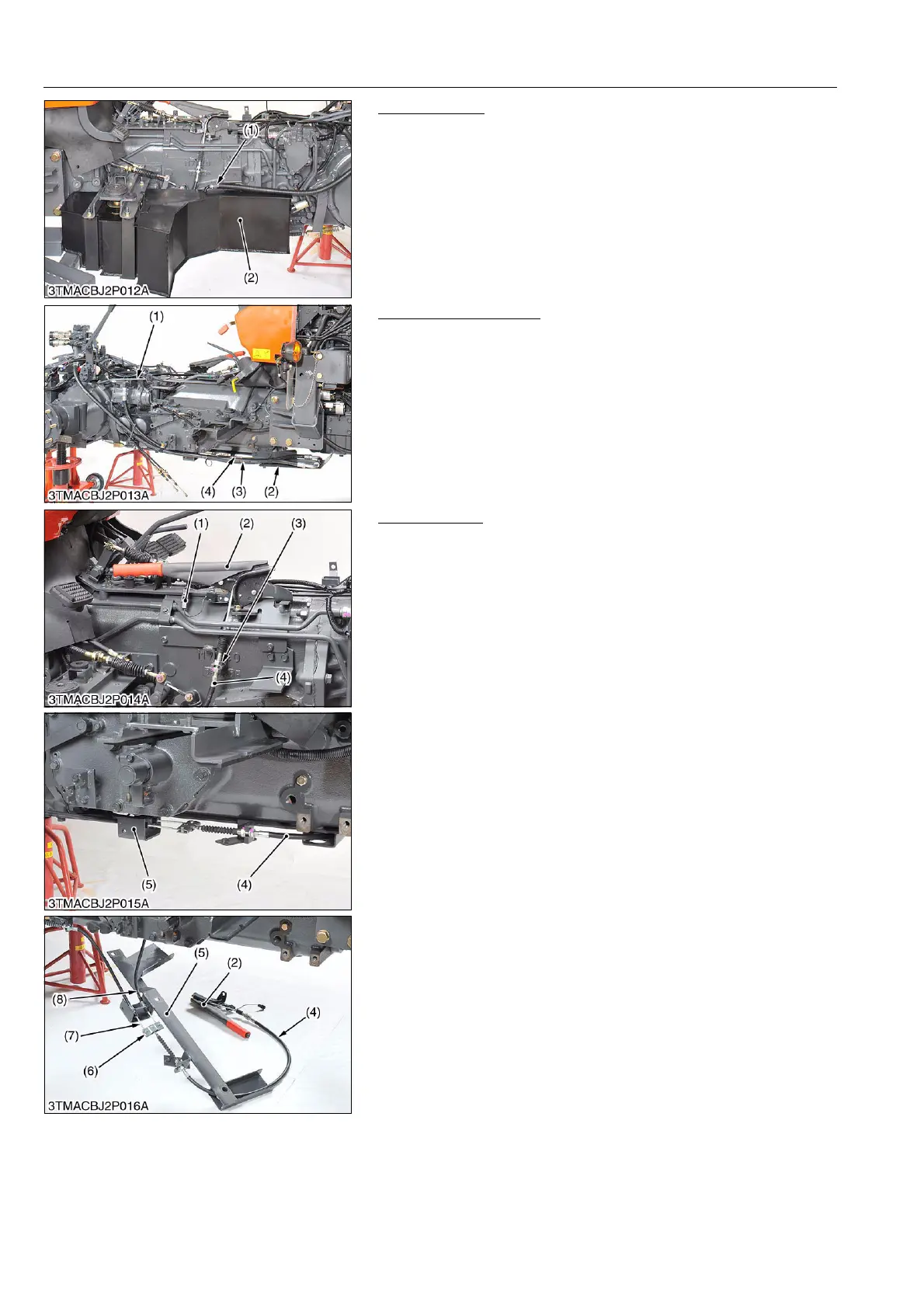

Fuel Tank L.H.
1. Disconnect the fuel breather hose (1).
2. Remove the lower fuel tank (2).
9Y1210236CLS0014US0
Hydraulic Outlet Hose
1. Remove the hydraulic outlet hose (3) and (4) with hose support
(2).
2. Remove the rear differential lock rod (1).
9Y1210236CLS0015US0
Parking Brake
1. Disconnect the connector (1) for parking brake switch.
2. Loosen the wire cable retaining nut (3).
3. Remove the mounting screw for parking brake lever (2).
4. Remove the parking cable support (5) as shown photo.
5. Disconnect the brake cables (7) and (8) from the stabilizer plate
(6).
(When reassembling)
• Adjust the parking brake lever free play. (Refer to the "N5.
BRAKE" section.)
9Y1210236CLS0016US0
(1) Fuel Breather Hose. (2) Lower Fuel Tank L.H.
(1) Rear Differential Lock Rod
(2) Hose Support
(3) Hydraulic Outlet Hose
(4) Hydraulic Outlet Hose
(1) Connector
(2) Parking Brake Lever
(3) Retaining Nut
(4) Parking Brake Lever Wire
(5) Cable Support
(6) Stabilizer Plate
(7) Brake Cable R.H.
(8) Brake Cable L.H.
KiSC issued 07, 2013 A
