SECTION 7 SERIES OPERATION
445-0089-01-01
85

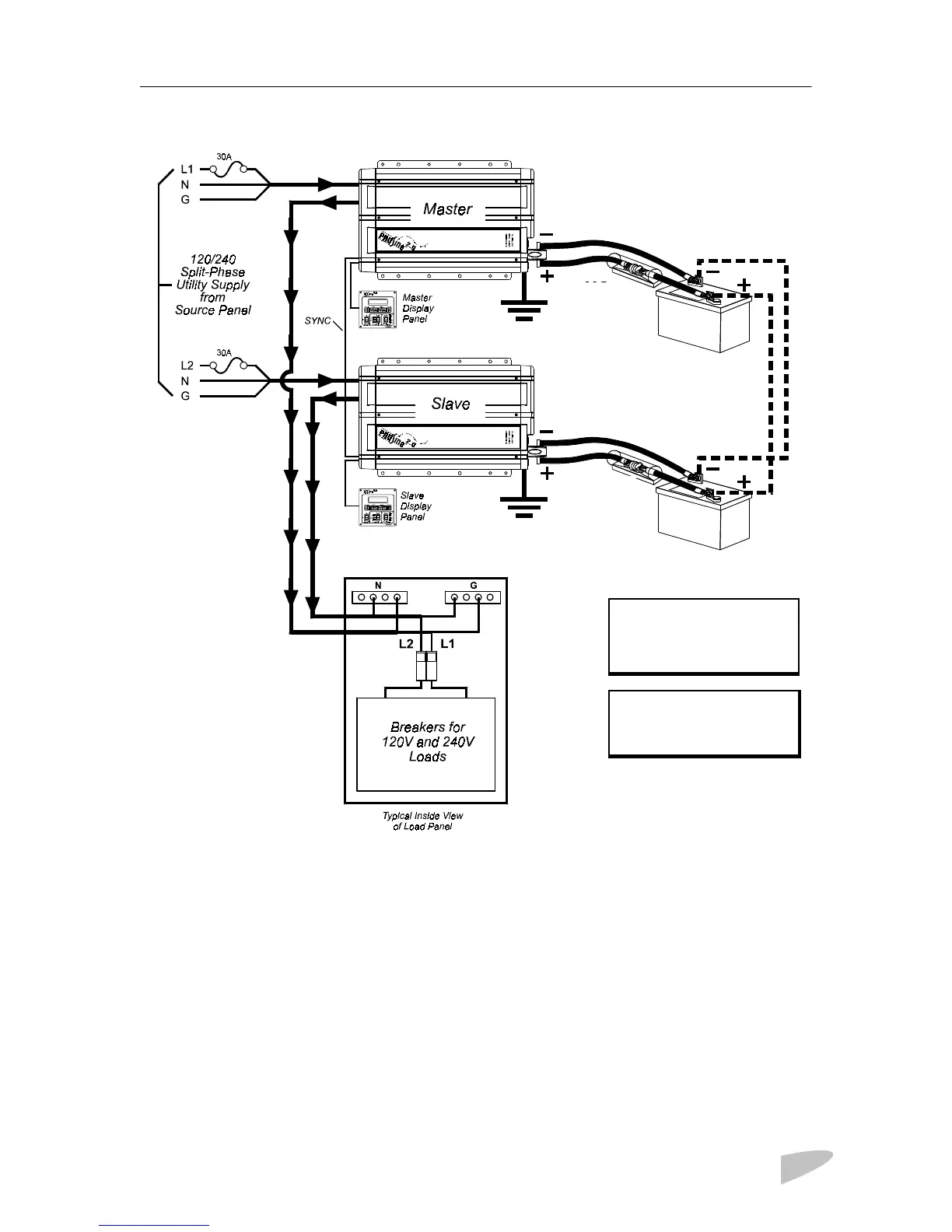

Figure 20 Two Inverter•Charger Series Operation System
*
Ground
*
Ground
Battery 1
Battery 2
DC Fuse /
disconnect or
circuit breaker
DC Fuse /
disconnect or
circuit breaker
Solid lines:
2 bank system
Dashed lines:
add cross-
tie jumpers to create a
single bank system.
Connect these points to the
system ground electrode.
*
Ground
