PROSINE 2.0 INVERTER•CHARGER USER’S MANUAL
16
445-0089-01-01
BATTERY TEMPERATURE SENSOR
The temperature sensor continuously measures the temperature of the battery
and adjusts charger output for a more accurate, temperature-compensated
charge.

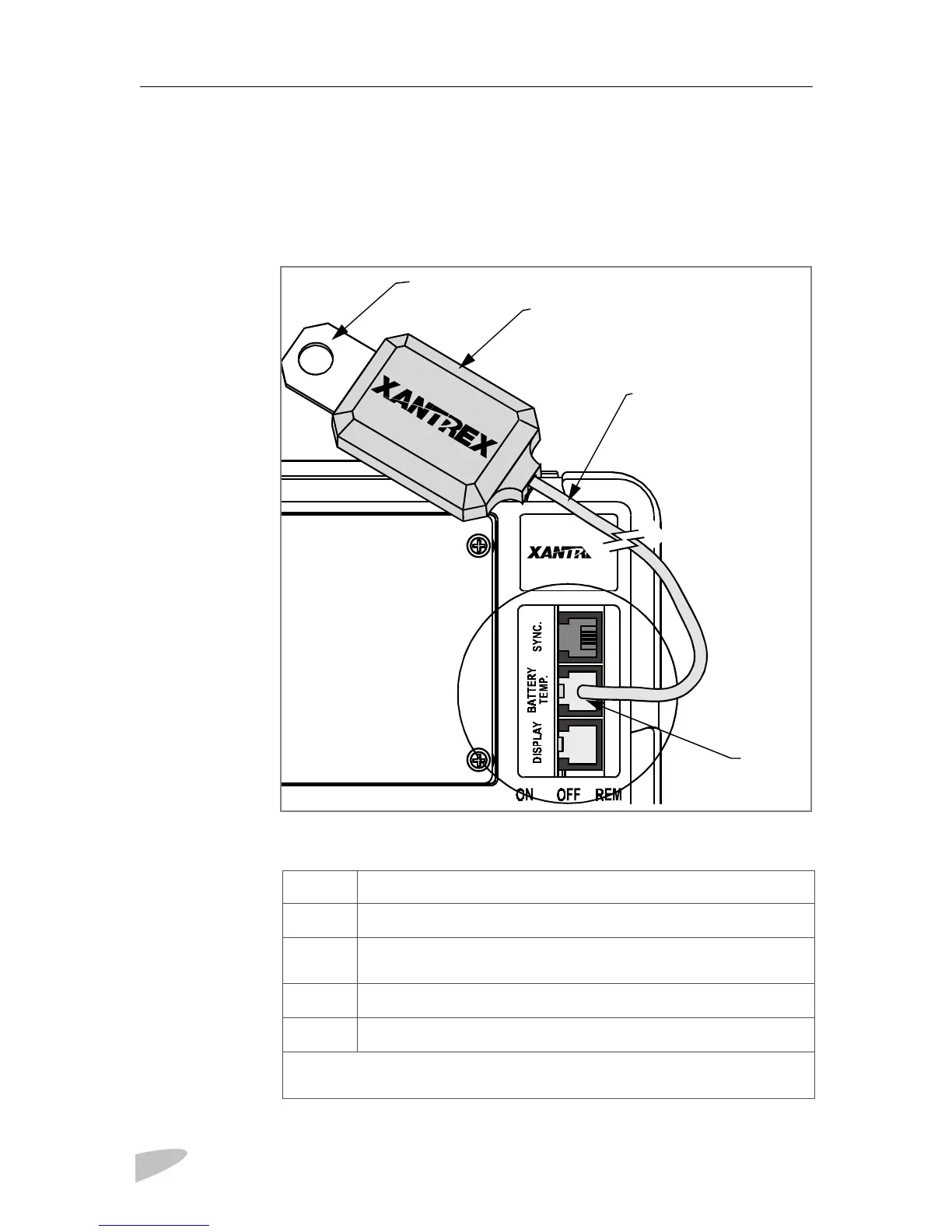

Figure 7 Battery Temperature Sensor
c
d
e
f
Feature Description
c
Mounting plate. Connects to the negative battery terminal.
d
Sensor. Reverse side has peel-off backing and self-adhesive strip so
you can attach the sensor to the side of the battery case.
e
Sensor cable (25ft; 8m).
f
Connector. Plugs into the Battery Temp jack on the PROsine 2.0.
NOTE: The battery temperature sensor is electrically isolated from the
mounting plate.
