APPENDIX C BATTERIES
445-0089-01-01
117
Series Connection
When batteries are connected with the positive terminal of one to the negative
terminal of the next, they are connected in series. In a series configuration, the
battery bank has the same Ah rating of a single battery, but an overall voltage
equal to the sum of the individual batteries. See Figure 25.

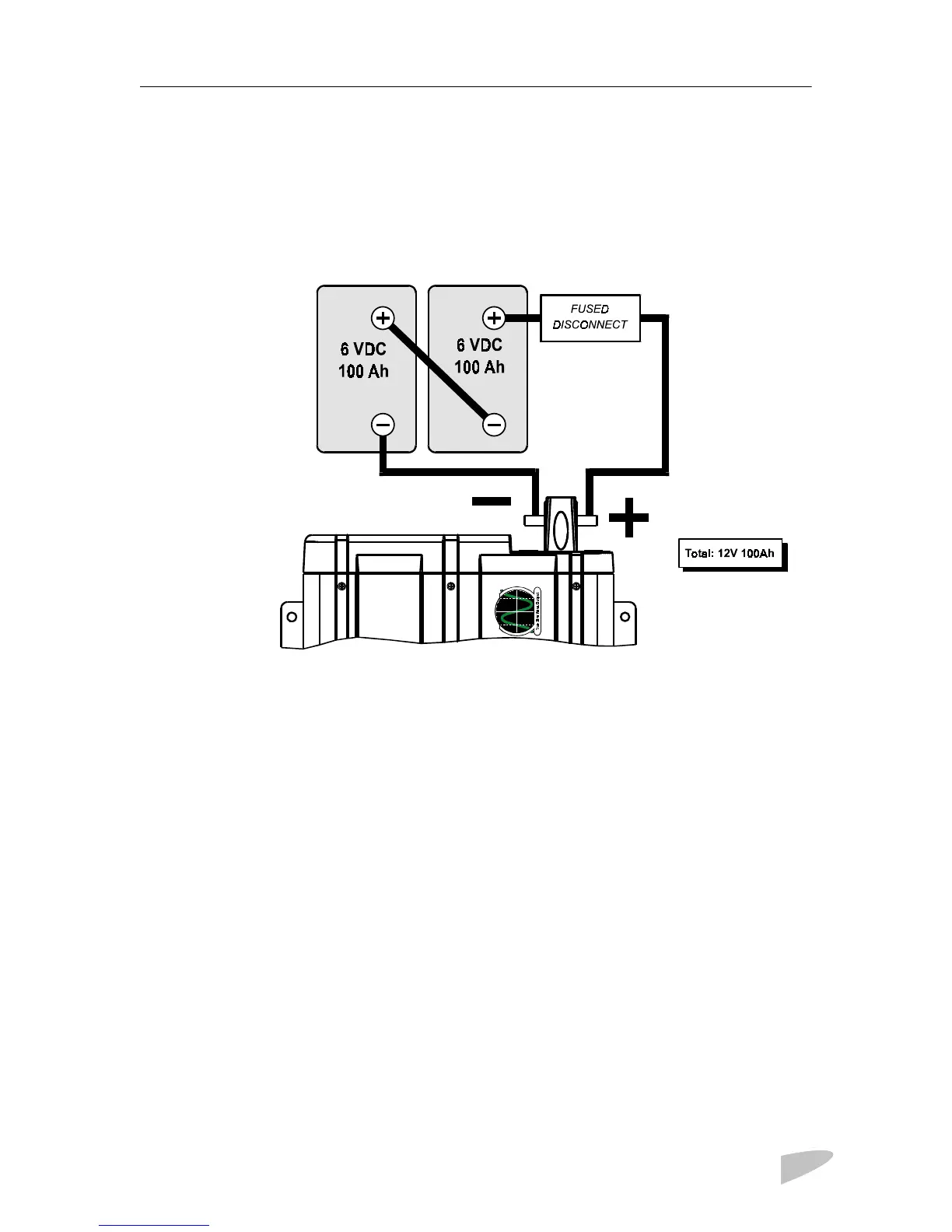

Figure 25 Batteries Connected in Series
