SECTION 3 INSTALLATION
445-0089-01-01
39
6. Plug the cables into the splitter and connect to the PROsine 2.0 as shown
in Figure 18.
The Remote Shutdown feature is now ready for use. For operating
information, see “ON/OFF/REMote Control of Inverter•Charger Operation‚”
on page 63.

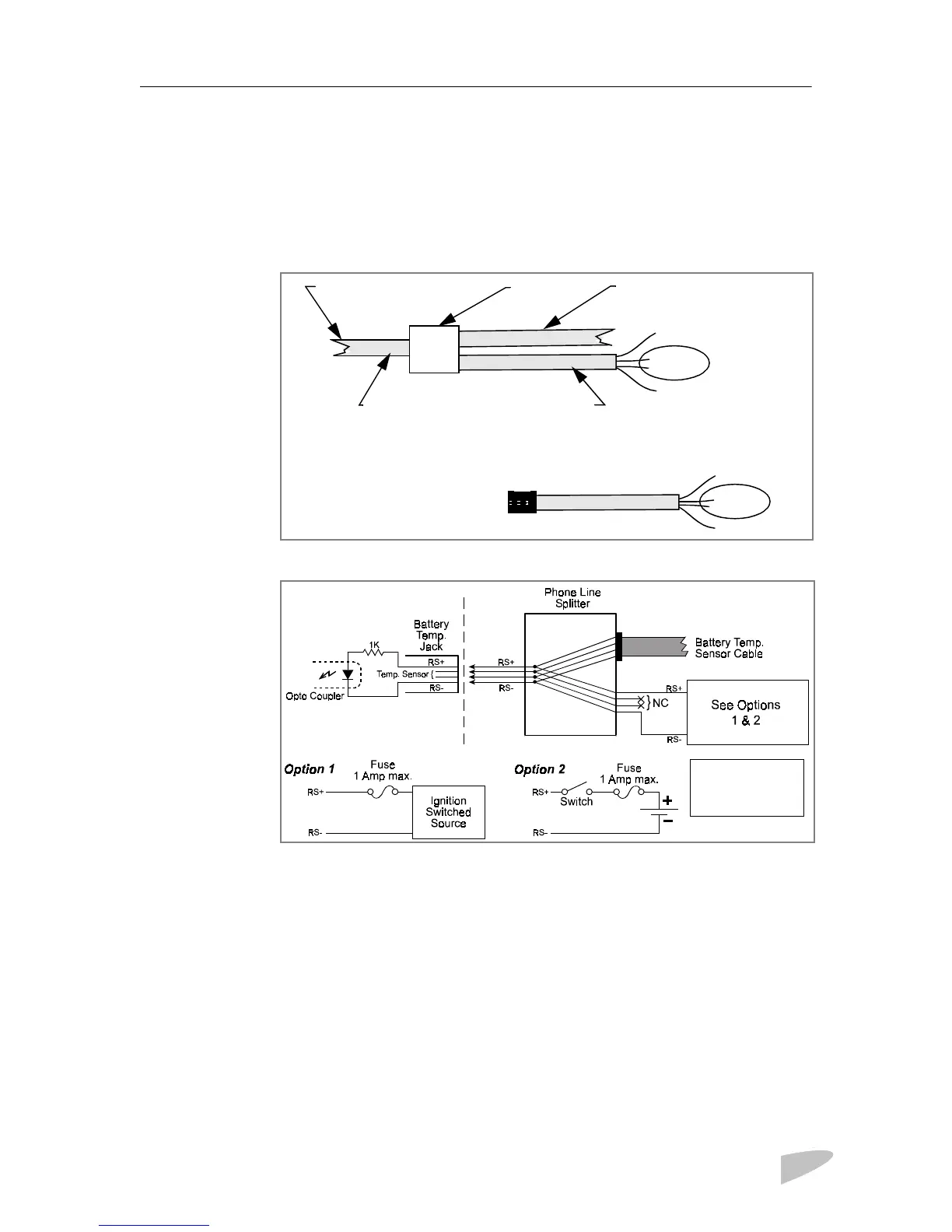

Figure 18 Cabling Details for Remote Shutdown Feature
Figure 19 Schematic for Remote Shutdown Feature
Next Steps
At this point, you have installed the inverter•charger system and are now ready
to configure it.
1. Read the configuration procedures in Section 4: “Configuration”.
2. Reconnect the AC shorepower supply.
3. Use the display panel to configure the inverter•charger.
Do not
use.
RS
+
RS
Plug into
Battery Temp
26AWG, 4-conductor telephone cable
1:2 phone
line splitter
Battery Temperature
RS
+
RS
Sensor cablejack on invertercharger
100 feet max.
10 feet max.
NOTE:
The retaining clip is
on the opposite side of the
Do not
use.
Top view of cable and connector
connector
.
**
Do not connect to
these wires; they are
used for the Battery
Temperature Sensor.
**
