Step 6: Connecting the AC Output Wires
Two options are available for AC output wiring:
• Hardwire output. (See page 29.)
• Single hardwire output plus GFCI receptacle. (See page 30.)
Connections for Hardwire Option
➢
➢➢
➢
To make the AC output wiring connections
1. Run 10AWG 2-conductor-plus-ground cable through one of the cable
clamps on the AC end.
2. Strip about two inches of the jacket from the AC cable and separate the
three wires. Strip insulation from each of the wires according to the
guidelines given by the connector manufacturer.
3. Connect the outgoing black and white (line and neutral) AC wires to the
PROsine AC output black and white wires.
4. Connect the incoming ground wire to the chassis using one of the screws
marked .
5. Connect the outgoing AC wires to an AC load panel equipped with circuit
breakers.

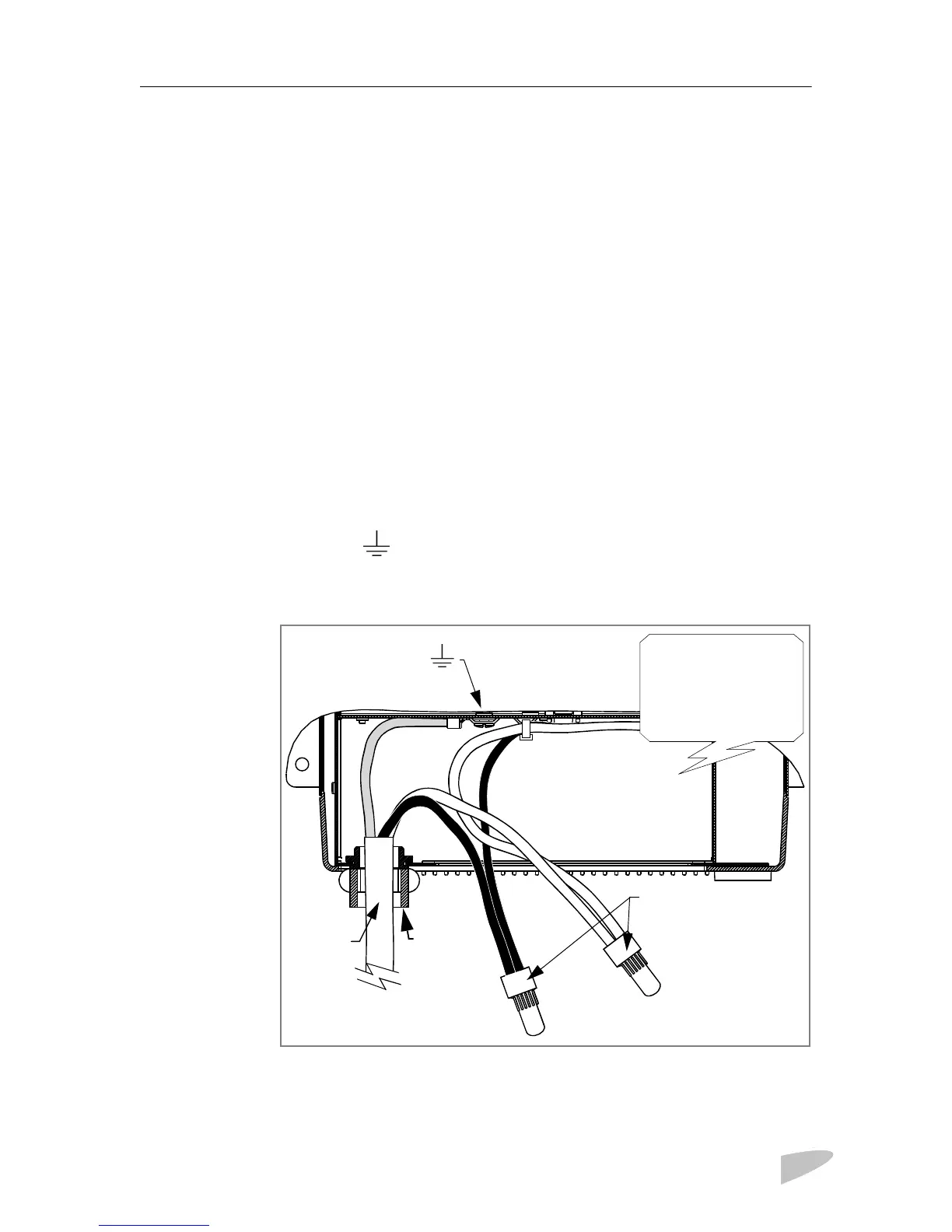

Figure 12 Hardwire AC Output Option (Top, cutaway view of wiring
compartment)
Cutaway view of
PROsine 2.0 wiring
compartment as
seen from the top.
wire nuts or crimp
connections (depending
on type of installation)
clamp
for AC cable
grounding screw
AC cable
