Tray 4 (Bypass)
ColorQube™ 9301/9302/9303
Paper and Media
242
Tray 4 (Bypass)
Tray 4 (Bypass) is a paper tray on the left hand side of your device and can be folded away when not in
use. It is primarily intended for use as a small quantity, special materials feeder and accommodates
media of all types including transparencies, envelopes and tabs.
When media is detected in Tray 4 (Bypass) a paper settings screen is displayed. The drop-down menus
are used to change the size, type and color of the media loaded. The guides automatically detect the
size of media loaded and the device gives a warning if the guides are not set correctly or a non-
standard media size is used. The following media can be loaded in Tray 4 (Bypass):
• Up to 100 sheets of 75 gsm or 20 lb paper.
• Weights from 60 to 216 gsm (16 to 56 lb).
• Media sizes in the range A5 SEF to SRA3 SEF (5.5x8.5” SEF to 12x18” SEF). Envelopes sizes DL to
C4 (#10 to 9x12”), all envelopes must be fed Short Edge Feed (SEF).
•Media types:
• Bond, standard or recycled paper
•Card
•Pre-printed media
•Labels
• Transparencies
• Hole punched paper
• Carbonless paper
• Tabs
•Envelopes
Note For 80 gsm paper capacities are slightly lower then specified.
Loading Tray 4 (Bypass)
Your device alerts you if Tray 4 (Bypass) is selected for a job and the media requested does not match
the media currently loaded. It also warns you if the tray runs out of paper during a job.
1. Make sure the tray is in the down
position. For larger media, use the tray
extension.

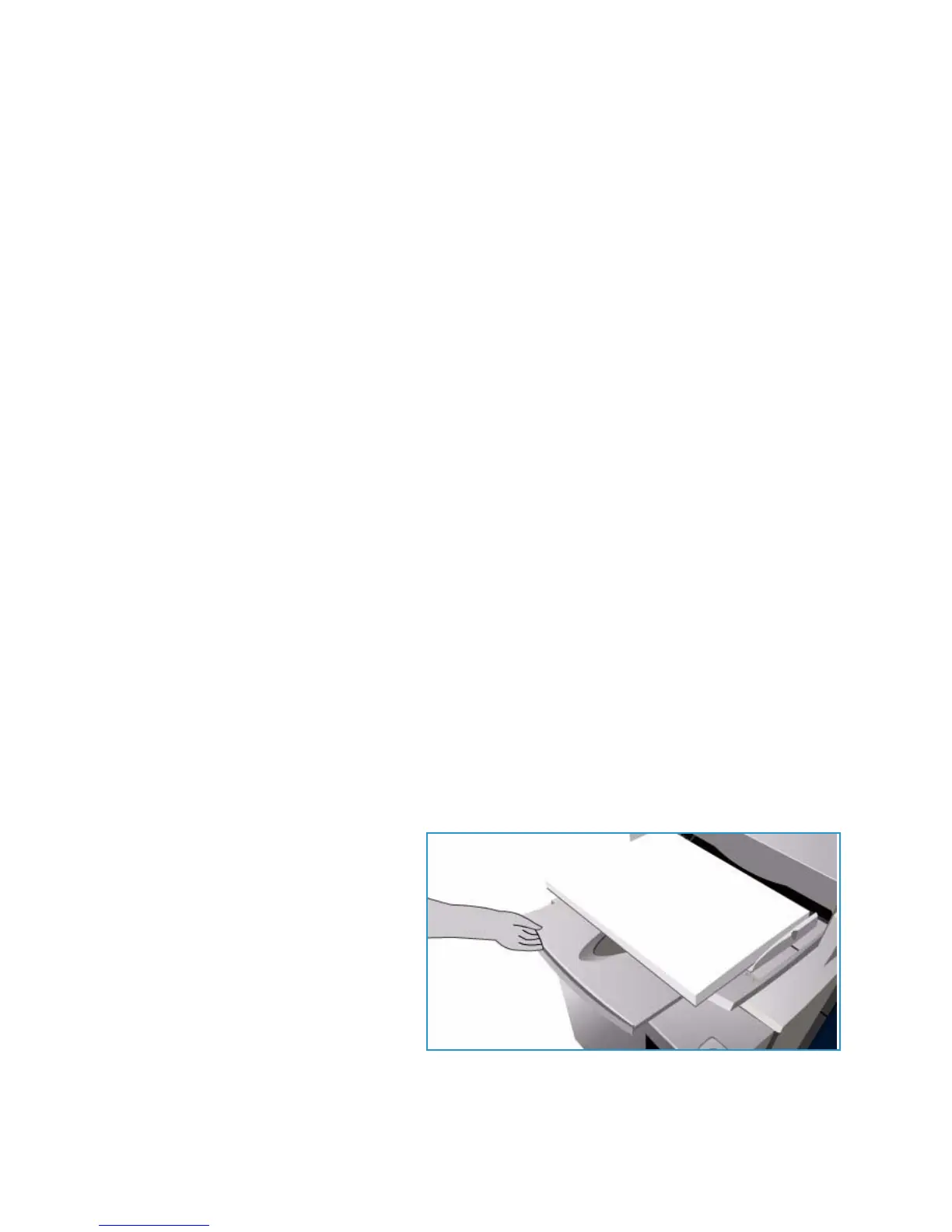

2. Place the media on the tray. Locate
the media to the right edge.
• Load pre-printed paper and
labels face down and with the
top towards the front of the
device.
• Load hole punched paper with
the holes on the left.
• Load transparencies face down with the white strip on the left.
For information about loading tabs, refer to Pre-Cut Tabs on page 249.

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
