This guide describes the different types of media that can be used in your device, the paper trays
available and the types and sizes of media that can be loaded and fed from each tray.
It also identifies the orientation the media can be loaded, Long Edge Feed (LEF) or Short Edge Feed
(SEF).
The trays automatically detect low media and out of media conditions. A warning message is
displayed on the screen when a tray requires loading.
Always use the labels in each of the trays for guidance on loading orientations and maximum fill
information.

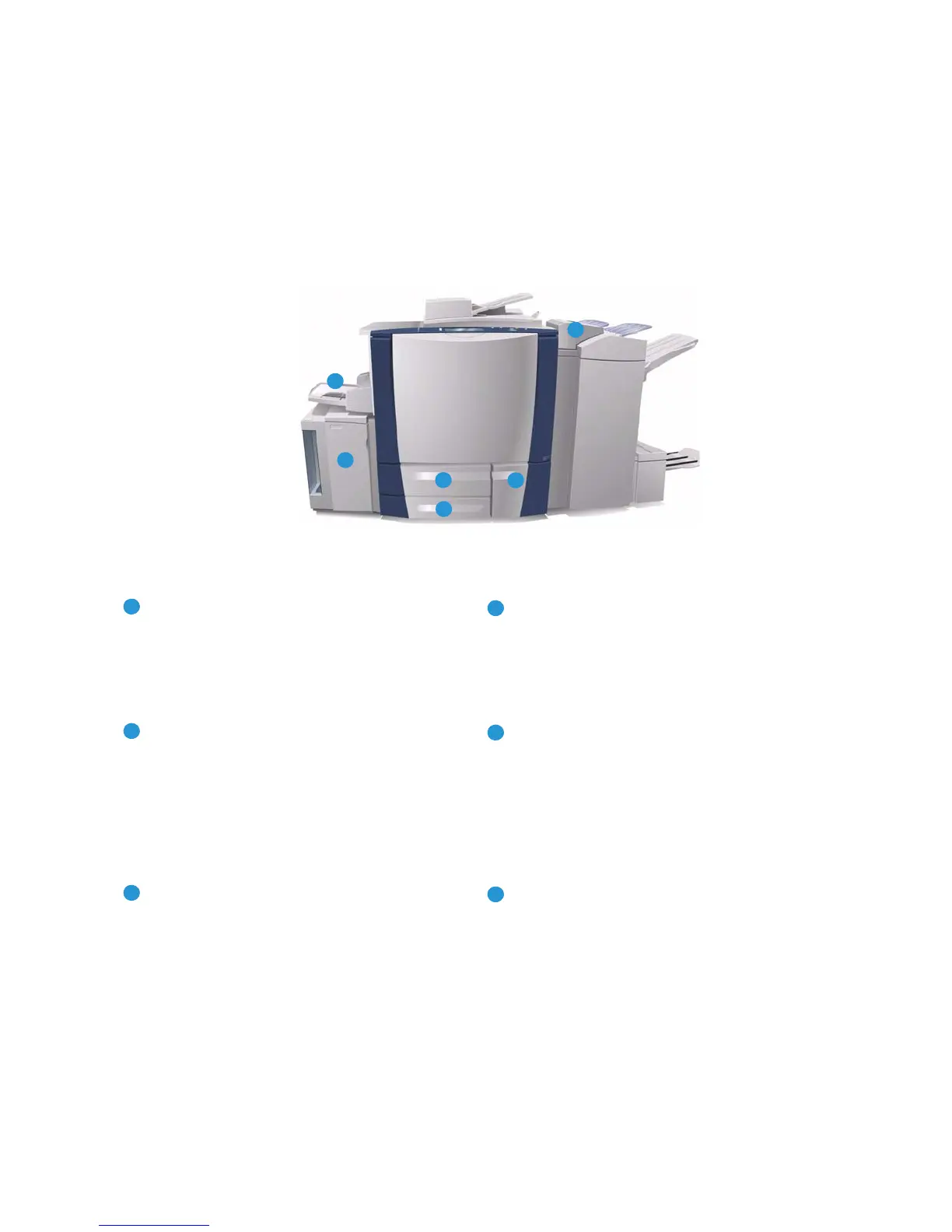

Paper Tray 1: This tray is standard on the device.
It is a fully adjustable tray and is used for media
sizes 5.5x8.5” to 11x17” / A5 to A3. The capacity
for this tray is 550 sheets of 75 gsm or 20 lb
paper.
Tray 4 (Bypass): This tray is also standard on the
device and is used for non-standard printing
media. It can be used for media sizes in the
range A5 SEF to SRA3 SEF (5.5x8.5” SEF to
12x18” SEF). The capacity for this tray is 100
sheets of 75 gsm or 20 lb paper.
Paper Tray 2: This tray is standard on the device.
It is a fully adjustable tray and is used for media
sizes 5.5x8.5” to 11x17” / A5 to A3. The capacity
for this tray is 550 sheets of 75 gsm or 20 lb
paper.
Tray 5: An optional high capacity paper source
which feeds A4 or 8.5x11” Long Edge Feed (LEF)
media as standard. Additional kits can be
purchased to enable different paper sizes to be
fed. The capacity for this tray is 4000 sheets of
75 gsm or 20 lb paper (A4 or 8.5x11” LEF) or
2000 sheets of 75 gsm or 20 lb paper (A3 or 11 x
17”).
Paper Tray 3: This tray is standard on the device.
It is a dedicated tray and is set to a fixed size,
either A4 or 8.5x11”. The capacity for this tray is
2100 sheets of 75 gsm or 20 lb paper.
Tray 6 (Post Process Inserter): An optional
paper tray for use with the High Volume Finisher.
It is used to insert pre-printed sheets into copy
sets. The device cannot print on sheets fed from
this tray. The capacity for this tray is 250 sheets
of 75 gsm or 20 lb paper.
