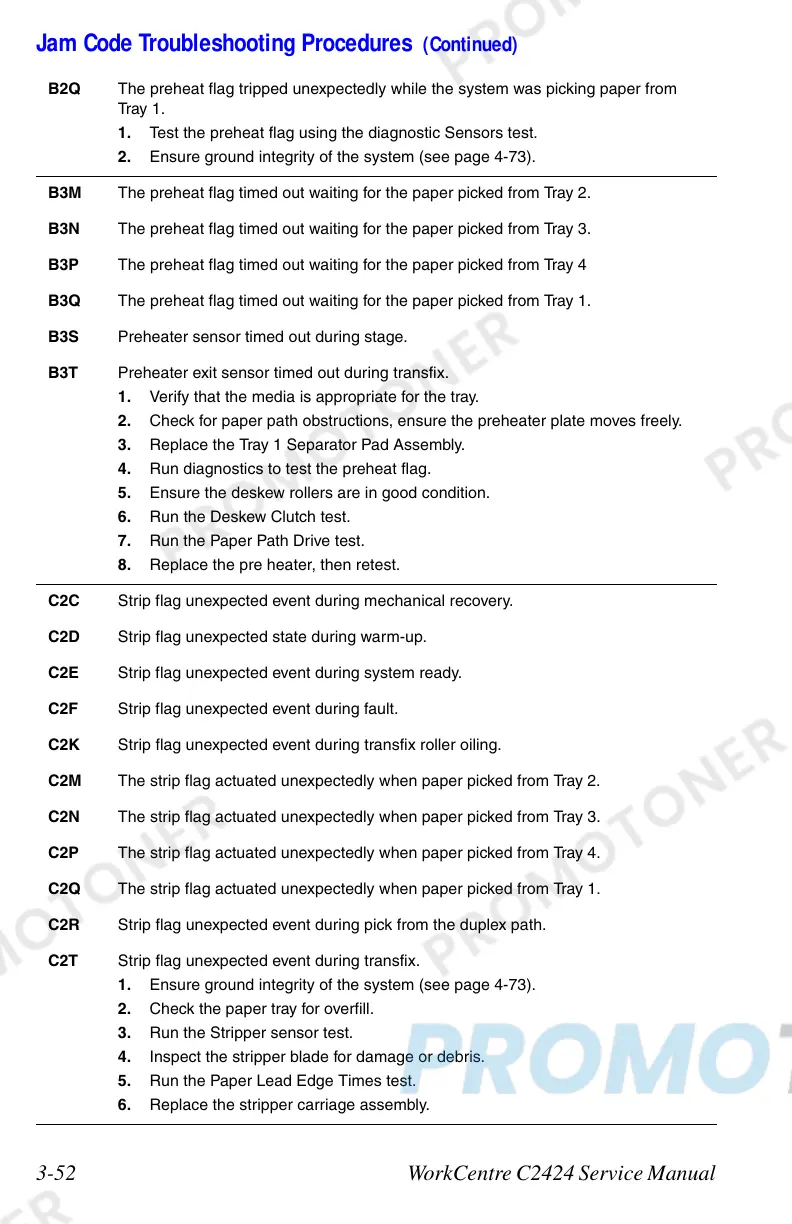

3-52 WorkCentre C2424 Service Manual
B2Q The preheat flag tripped unexpectedly while the system was picking paper from
Tray 1.
1. Test the preheat flag using the diagnostic Sensors test.
2. Ensure ground integrity of the system (see page 4-73).
B3M The preheat flag timed out waiting for the paper picked from Tray 2.
B3N The preheat flag timed out waiting for the paper picked from Tray 3.
B3P The preheat flag timed out waiting for the paper picked from Tray 4
B3Q The preheat flag timed out waiting for the paper picked from Tray 1.
B3S Preheater sensor timed out during stage.
B3T Preheater exit sensor timed out during transfix.
1. Verify that the media is appropriate for the tray.
2. Check for paper path obstructions, ensure the preheater plate moves freely.
3. Replace the Tray 1 Separator Pad Assembly.
4. Run diagnostics to test the preheat flag.
5. Ensure the deskew rollers are in good condition.
6. Run the Deskew Clutch test.
7. Run the Paper Path Drive test.
8. Replace the pre heater, then retest.
C2C Strip flag unexpected event during mechanical recovery.
C2D Strip flag unexpected state during warm-up.
C2E Strip flag unexpected event during system ready.
C2F Strip flag unexpected event during fault.
C2K Strip flag unexpected event during transfix roller oiling.
C2M The strip flag actuated unexpectedly when paper picked from Tray 2.
C2N The strip flag actuated unexpectedly when paper picked from Tray 3.
C2P The strip flag actuated unexpectedly when paper picked from Tray 4.
C2Q The strip flag actuated unexpectedly when paper picked from Tray 1.
C2R Strip flag unexpected event during pick from the duplex path.
C2T Strip flag unexpected event during transfix.
1. Ensure ground integrity of the system (see page 4-73).
2. Check the paper tray for overfill.
3. Run the Stripper sensor test.
4. Inspect the stripper blade for damage or debris.
5. Run the Paper Lead Edge Times test.
6. Replace the stripper carriage assembly.
Jam Code Troubleshooting Procedures (Continued)
