3-66 WorkCentre C2424 Service Manual
Z2Z Tray 4 pick flag triggered unexpectedly while exiting print.
1. Ensure ground integrity of the system (see page 4-73).
2. Run the Monitor Sensors test to test the media size sensor.
3. Replace the 525-Sheet Feeder.
4. Replace the pivot arm.
Z3B Tray 4 pick flag sensor timed out during normal shutdown.
Z3D Tray 4 pick flag sensor timed out during warm-up.
Z3E Tray 4 pick flag sensor timed out during wile system ready.
Z3F Tray 4 pick flag sensor timed out while system in fault state.
Z3L Tray 4 pick flag sensor timed out while system in standby.
Z3M Tray 4 pick flag sensor timed out while pick from Tray 2.
Z3N Tray 4 pick flag sensor timed out while pick from Tray 4.
Z3P Tray 4 pick flag sensor timed out while pick from Tray 4.
Z3Q Tray 4 pick flag sensor timed out while pick from Tray 1.
Z3R Tray 4 pick flag sensor timed out while duplexing.
Z3V Tray 4 pick flag sensor timed out while the system drum maintenance cycle was
being performed.
Z3W Tray 4 pick flag sensor timed out while system imaging.
Z3S Tray 4 pick flag sensor timed out while paper staged for print.
Z3T Tray 4 pick flag sensor timed out while transfixing the print.
Z3Z Tray 4 pick flag sensor timed out while exiting print.
1. Verify the paper loaded in Tray 4 is the correct size and type.
2. Inspect/clean the pick roller assembly. Replace if necessary.
3. Run the Tray 4 Pick Shaft test
4. Replace the Tray 4 525-Sheet Feeder.

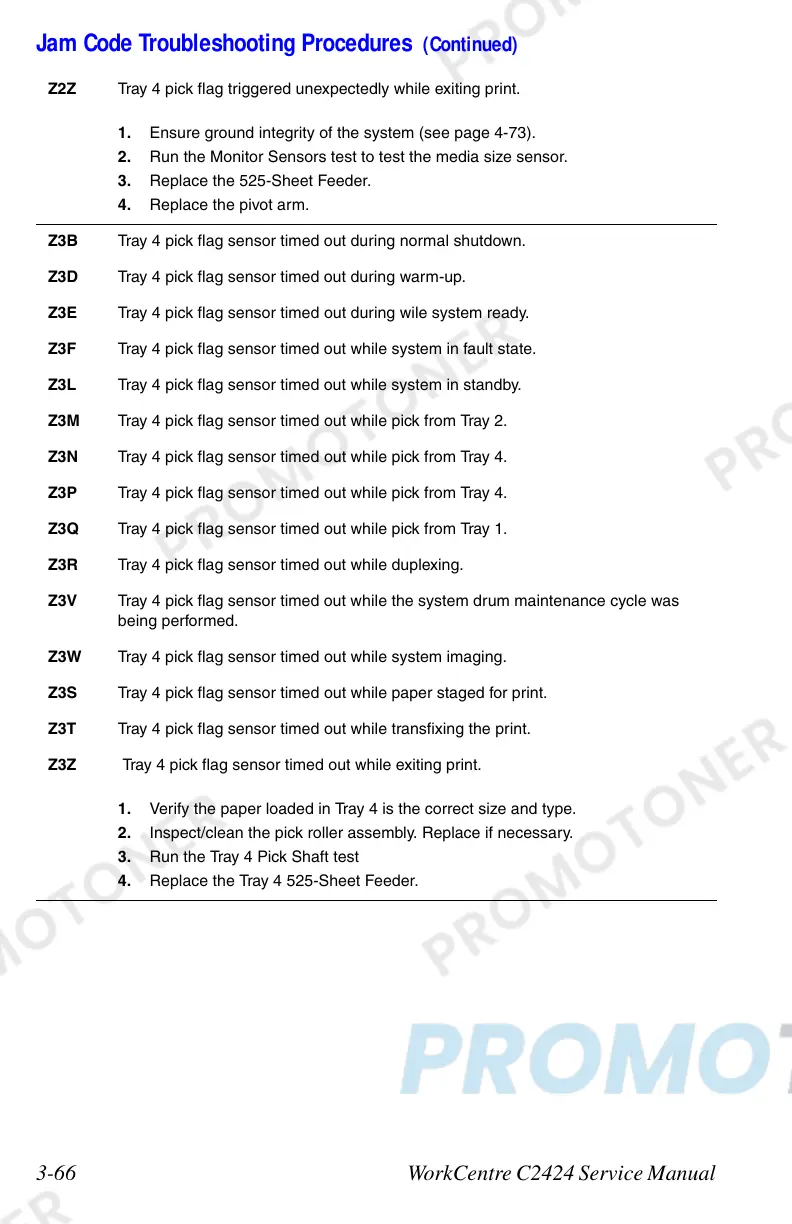

Jam Code Troubleshooting Procedures (Continued)
