General Troubleshooting 4-9
Test Name Description Results
Exercise Lamp This tests commands the
scanner to cycle the lamp
on, then off.
The lamp is then left ON.
The lamp status must be
observed.
OK
Fail
Exercise Axis
Motion
The scanner axis moves to
the maximum of its travel
position, then back to the
home (left) position.
OK or Fail.
Reset Scanner This test power cycles the
IIT unit (MEP, Scanner,
DADF).
Ready or Not Ready
Main Menu --> Doc Handler Menu
Test Name Description Results
Report FW Version Reports the current firmware version.
Report Status Checks then reports the
current status as reported by
the DADF unit firmware.
Ready or Not Ready
Lamp:
ON, OFF, Warming Up,
Warmup test not done,
Test fail
Error:
OK, Paper Jam, Cover
Open, Internal failure, Test
fail, Data Capture test fail,
Cal Device test fail.
Report Paper
Status
Reports the presence of
paper in the DADF unit.
Paper or no paper.
Perform Selftest This tests performs the built-
in self test procedure for the
DADF.
OK or Fail.
(This test may take several
minutes to complete.)
Test DRAM Tests the DRAM. OK or Fail.
(This test may take several
minutes to complete.)

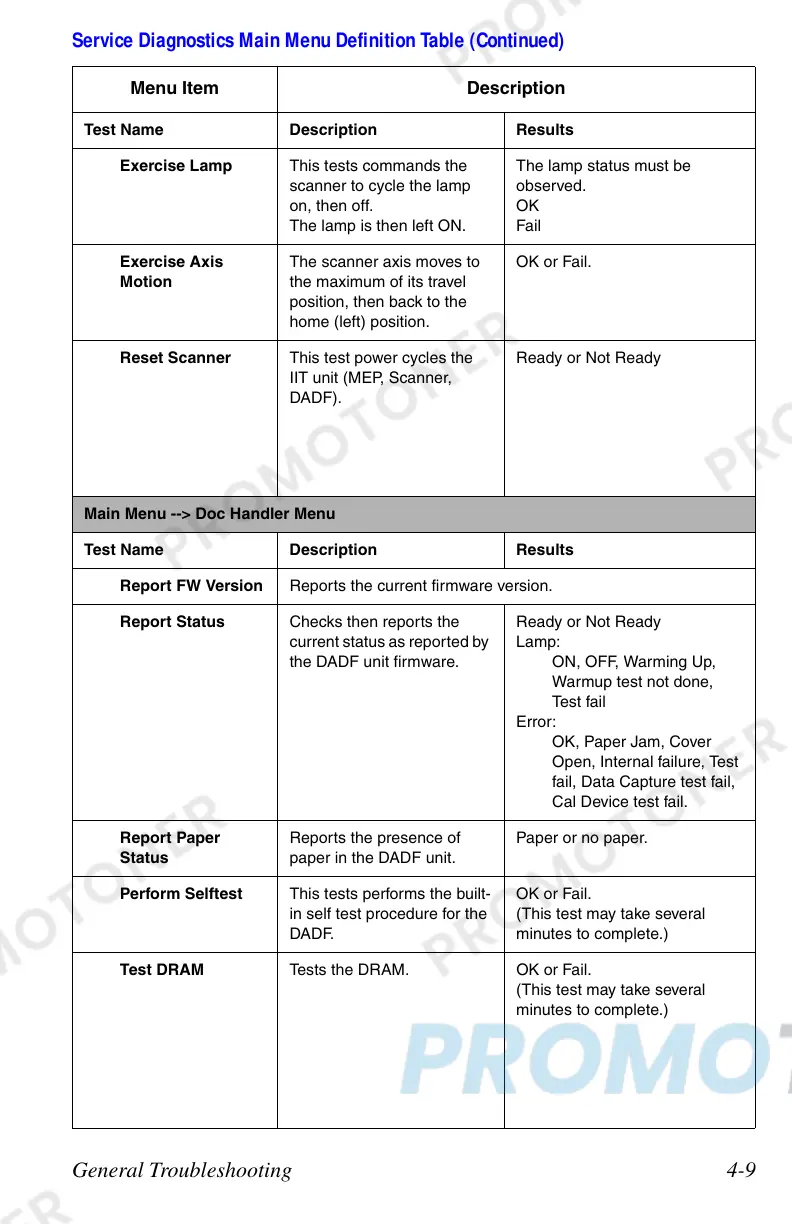

Service Diagnostics Main Menu Definition Table (Continued)
Menu Item Description
